Wilwood Red Four-Piston Front Brake Kit, 11-Inch Drilled/Slotted Rotors for GM and Ridetech Pin Spindles

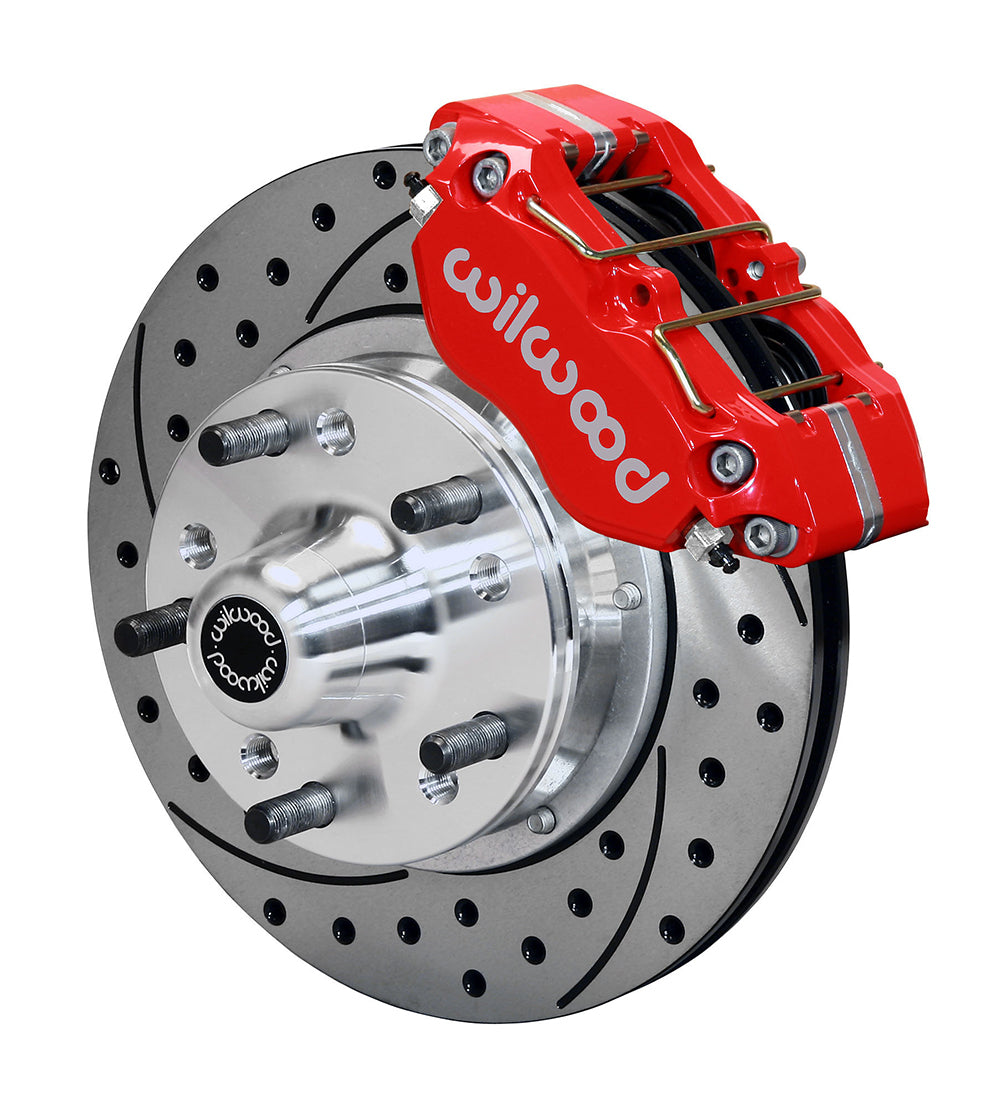

Red powder-coated Dynapro calipers, drilled-and-slotted rotors and replacement hubs form this front brake assembly. Its dust-boot piston protection and 11-inch rotor package are specified together for the documented spindle applications. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.

Technical Details

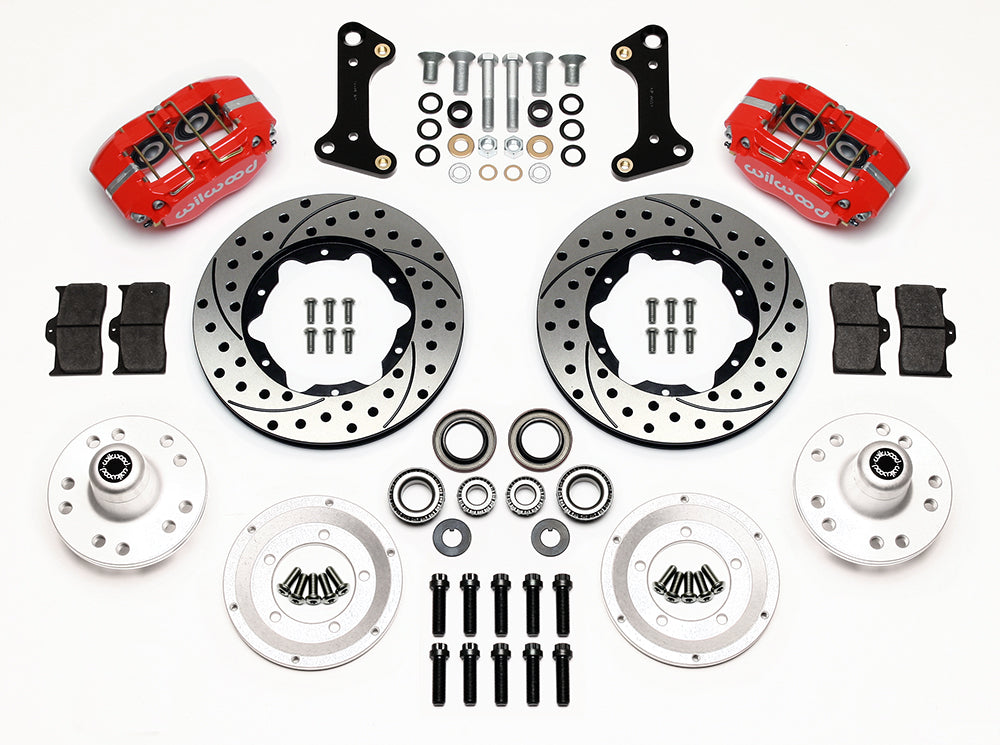

• Manufacturer part number: 140-13202-DR
• Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
• Rotor dimensions: 11.00 in; 279.4 mm outside diameter; 0.81 in; 20.57 mm thickness
• Rotor construction: Iron; Vented; SRP Drilled & Slotted
• Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
• Piston and finish specification: Aluminum pistons; Red calipers; Red Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Wheel-stud thread: 1/2-20 in
• Wheel diameter starting requirement: 14 in; 355.6 mm; verify the individual wheel against the installation drawing
• Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
• Specified pad compound: BP-10
• Published wheel-position / hub offset: +.19 inch per side; verify against the documented spindle assembly

Fitment & Compatibility

Confirm the precise original or Ridetech pin spindle, including any machining described in DS998. The published hub offset changes the wheel position; also compare wheel-pad contact and the separate hose connections.

Documented model groups, subject to each year, submodel and spindle/axle qualification: Ford Falcon, Mustang, F-100; Mercury Comet; Chevrolet Chevy II, Corvette, Chevelle, El Camino, Malibu, Camaro, Nova, Monte Carlo; Buick Skylark, Special, Sportwagon, Gran Sport, GS 350, GS 400, GS, GS 455, Apollo; Oldsmobile 442, Cutlass, F85, Vista Cruiser, Cutlass Supreme, Omega; Pontiac Acadian, Beaumont, GTO, LeMans, Tempest, Firebird, Grand Prix, Ventura; GMC Sprint. Application distinctions include w/ Ridetech Pin Spindle; Disc Brake Spindle; Drum Brake Spindle; Drum Brake Front; Base / Base; Z/28 w/ 4 Wheel Disc; w/ O.A.I. Drum Brake Spindles; Drum Brake Spindle w/o O.A.I.

The installation reference distinguishes wheel-pad overhang from a supported stamped steel wheel. Overhang requires a 0.20-inch-thick steel spacer, 6.60 inches in diameter, part 300-11961 (listed in the installation parts list). A stamped wheel without overhang should instead use the separate 0.09-inch-thick, 6.15-inch-diameter shield 300-10716.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.

An independently added universal parking-brake cable system may require cable or vehicle modifications. It is separate from this front service-brake kit.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS998

Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.

Review the complete application table below with the year, submodel and installation qualifications above.
