Wilwood Black Front Dynapro Conversion with SRP 11-Inch Rotors, Specified GM/Ridetech Spindles

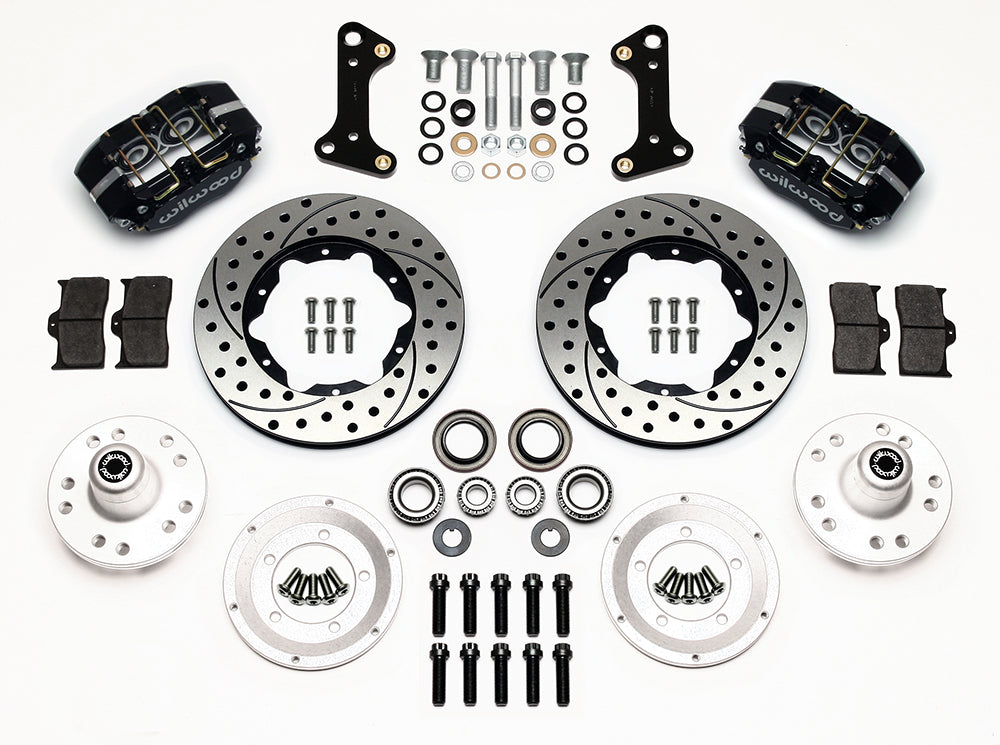

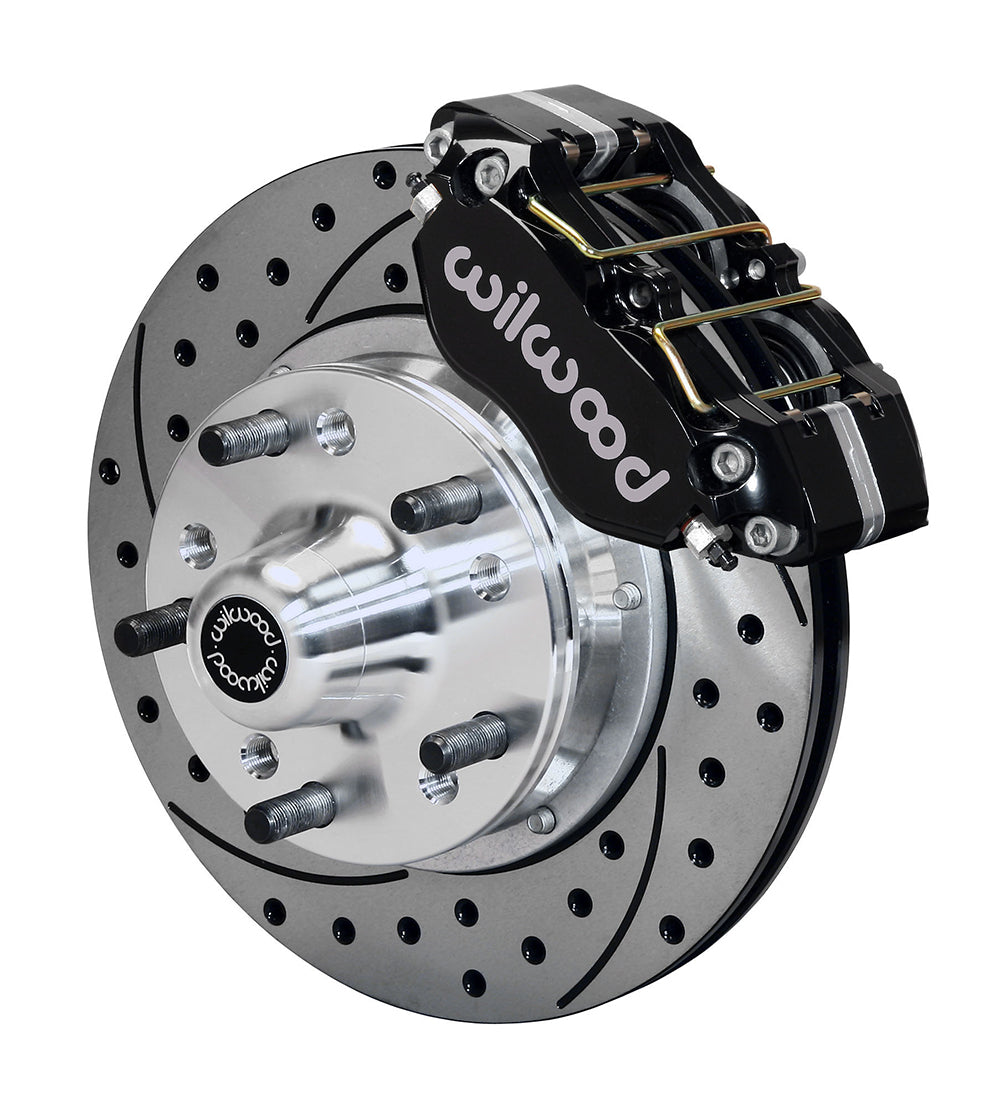

SRP drilled-and-slotted rotors join black four-piston dust-boot calipers in this front hub conversion. The aluminum hubs offer the documented two wheel patterns, with threaded studs distinct from the rotor attachment hardware. Wilwood Engineering’s work covers the design and manufacture of disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977 in a business now based in Camarillo, California. Its calipers, master cylinders, brake rotors, brake lines, valves and fittings must be selected around the complete system.

Technical Details

• Manufacturer part number: 140-13202-D
• Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
• Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
• Specified pad compound: BP-10
• Published wheel-position / hub offset: +.19 inch per side; verify against the documented spindle assembly
• Rotor dimensions: 11.00 in; 279.4 mm outside diameter; 0.81 in; 20.57 mm thickness
• Rotor construction: Iron; Vented; SRP Drilled & Slotted
• Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
• Piston and finish specification: Aluminum pistons; Black calipers; Black Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Wheel-stud thread: 1/2-20 in
• Wheel diameter starting requirement: 14 in; 355.6 mm; verify the individual wheel against the installation drawing

Fitment & Compatibility

Match every vehicle's spindle note, not just its model name. Inspect the wheel contact area on the hub and follow the spacer or hub-shield requirement in DS998; flexible brake lines are selected separately.

Documented model groups, subject to each year, submodel and spindle/axle qualification: Ford Falcon, Mustang, F-100; Mercury Comet; Chevrolet Chevy II, Corvette, Chevelle, El Camino, Malibu, Camaro, Nova, Monte Carlo; Buick Skylark, Special, Sportwagon, Gran Sport, GS 350, GS 400, GS, GS 455, Apollo; Oldsmobile 442, Cutlass, F85, Vista Cruiser, Cutlass Supreme, Omega; Pontiac Acadian, Beaumont, GTO, LeMans, Tempest, Firebird, Grand Prix, Ventura; GMC Sprint. Application distinctions include w/ Ridetech Pin Spindle; Disc Brake Spindle; Drum Brake Spindle; Drum Brake Front; Base / Base; Z/28 w/ 4 Wheel Disc; w/ O.A.I. Drum Brake Spindles; Drum Brake Spindle w/o O.A.I.

The installation reference distinguishes wheel-pad overhang from a supported stamped steel wheel. Overhang requires a 0.20-inch-thick steel spacer, 6.60 inches in diameter, part 300-11961 (listed in the installation parts list). A stamped wheel without overhang should instead use the separate 0.09-inch-thick, 6.15-inch-diameter shield 300-10716.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.

An independently added universal parking-brake cable system may require cable or vehicle modifications. It is separate from this front service-brake kit.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS998

With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.

Review the complete application table below with the year, submodel and installation qualifications above.
