Wilwood Front 11-Inch Dynapro Dust-Boot Brake Kit for GM and Ridetech Pin Spindle Applications, Black

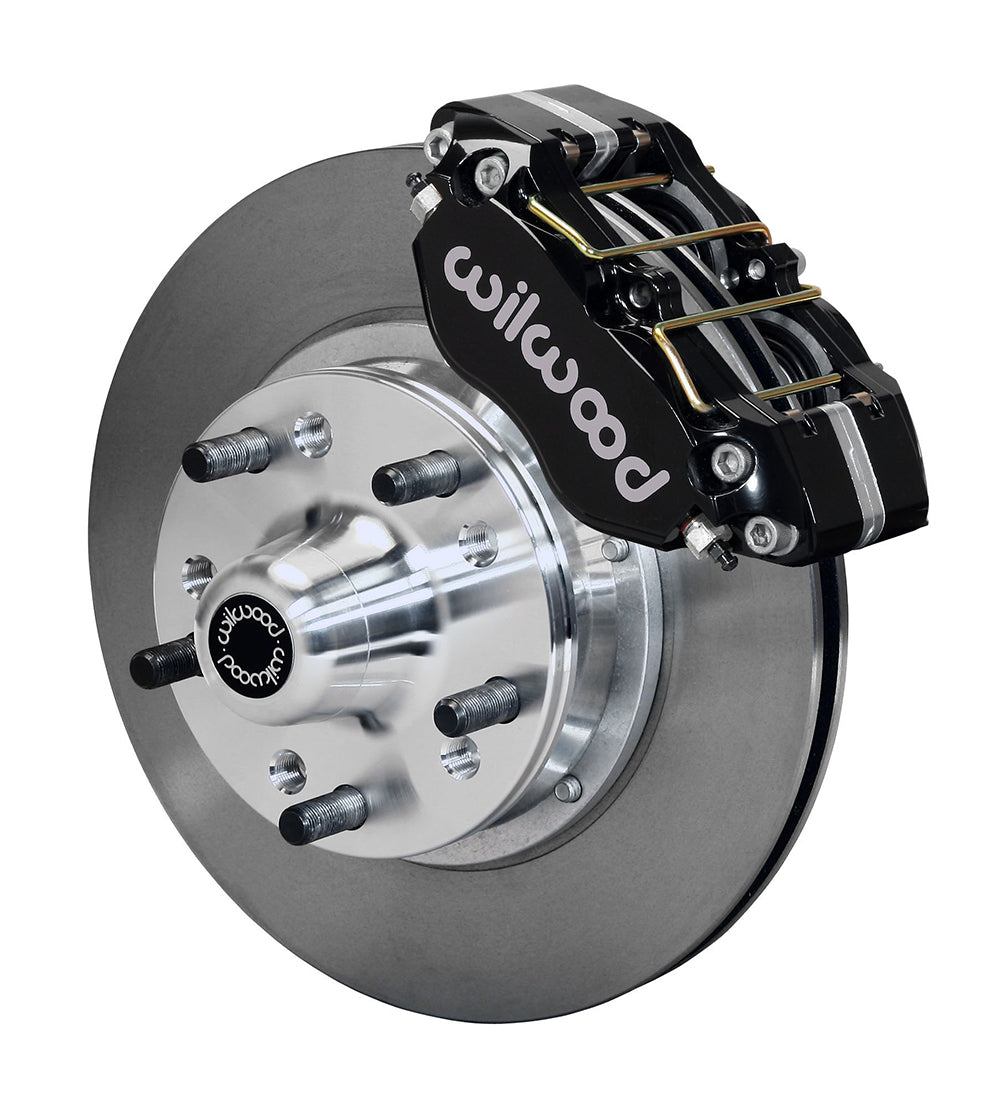

This 11-inch front conversion supplies dual-pattern hubs, vented iron rotors and black Dynapro dust-boot calipers. The application list combines specific factory GM spindles with vehicles using Ridetech pin spindles, so the installed spindle determines the usable configuration. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.

Technical Details

• Manufacturer part number: 140-13202
• Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
• Wheel-stud thread: 1/2-20 in
• Wheel diameter starting requirement: 14 in; 355.6 mm; verify the individual wheel against the installation drawing

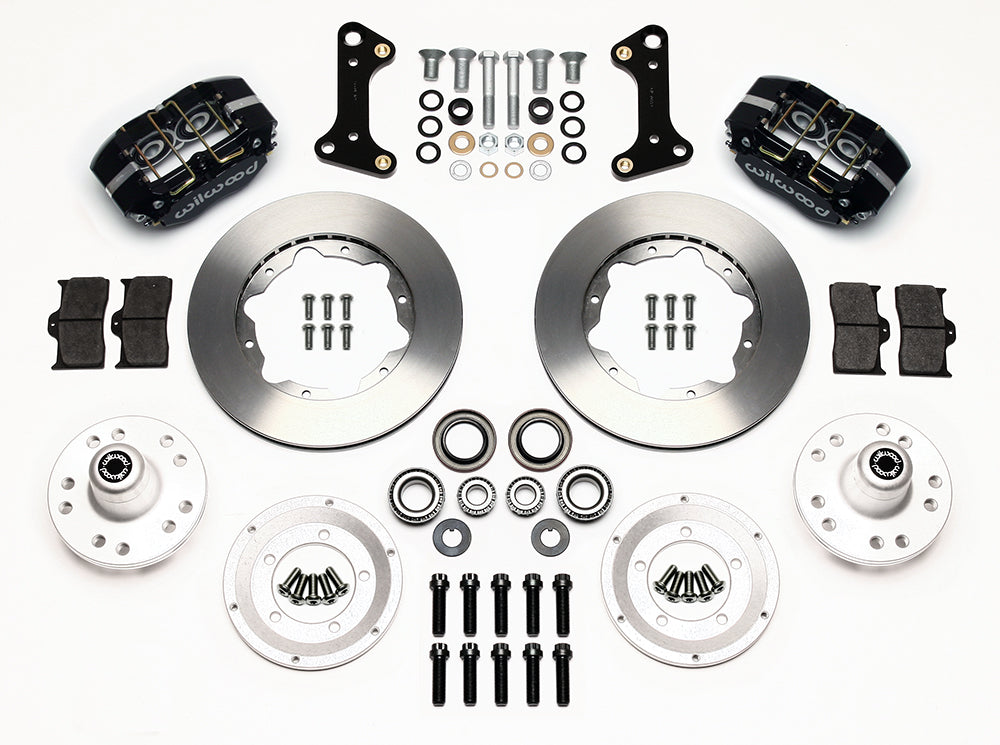

• Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
• Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
• Specified pad compound: BP-10
• Published wheel-position / hub offset: +.19 inch per side; verify against the documented spindle assembly
• Rotor dimensions: 11.00 in; 279.4 mm outside diameter; 0.81 in; 20.57 mm thickness
• Rotor construction: Iron; Vented; Plain Face
• Caliper assembly: Dynapro Dust-Boot; 4 pistons per caliper; Forged Aluminium body; Lug mount
• Piston and finish specification: Aluminum pistons; Black calipers; Black Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm

Fitment & Compatibility

Use DS998 to distinguish the applicable disc, drum or aftermarket spindle. Some early drum spindles need modification; wheels with a mounting pad wider than the hub face require the specified spacer, while stamped steel wheels may need a hub shield.

Documented model groups, subject to each year, submodel and spindle/axle qualification: Ford Falcon, Mustang, F-100; Mercury Comet; Chevrolet Chevy II, Corvette, Chevelle, El Camino, Malibu, Camaro, Nova, Monte Carlo; Buick Skylark, Special, Sportwagon, Gran Sport, GS 350, GS 400, GS, GS 455, Apollo; Oldsmobile 442, Cutlass, F85, Vista Cruiser, Cutlass Supreme, Omega; Pontiac Acadian, Beaumont, GTO, LeMans, Tempest, Firebird, Grand Prix, Ventura; GMC Sprint. Application distinctions include w/ Ridetech Pin Spindle; Disc Brake Spindle; Drum Brake Spindle; Drum Brake Front; Base / Base; Z/28 w/ 4 Wheel Disc; w/ O.A.I. Drum Brake Spindles; Drum Brake Spindle w/o O.A.I.

The installation reference distinguishes wheel-pad overhang from a supported stamped steel wheel. Overhang requires a 0.20-inch-thick steel spacer, 6.60 inches in diameter, part 300-11961 (listed in the installation parts list). A stamped wheel without overhang should instead use the separate 0.09-inch-thick, 6.15-inch-diameter shield 300-10716.

Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.

Universal Flexline kits available: 220-7056 (14"), 220-7699 (16") or 220-8307 (18"). Choose correct length for your application.

An independently added universal parking-brake cable system may require cable or vehicle modifications. It is separate from this front service-brake kit.

Manufacturer References

• Wilwood exact kit specifications
• Wilwood installation instructions DS998

PMB Performance has over 20 years of brake-parts experience. Send the installed component details if you need help checking this replacement.

Review the complete application table below with the year, submodel and installation qualifications above.
