Product details

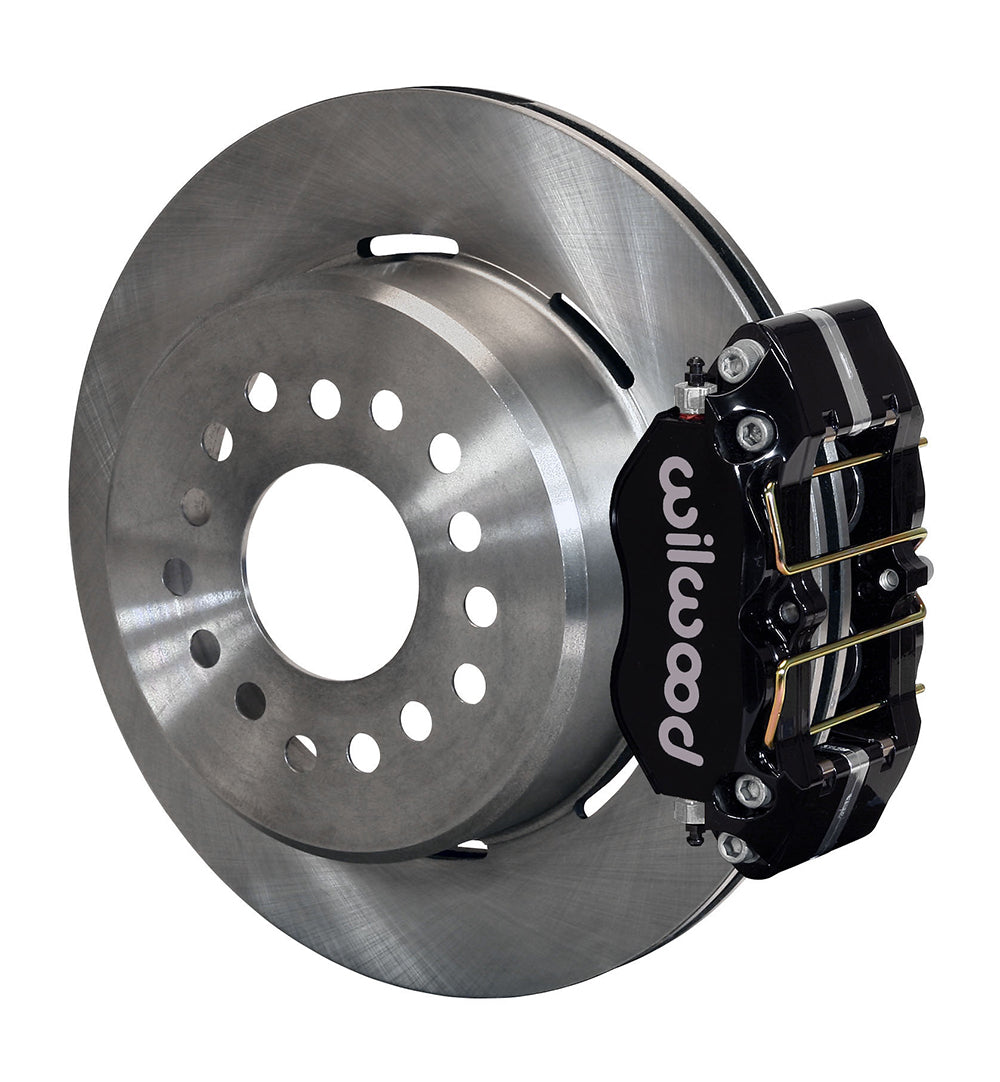

Black four-piston Dynapro lug-mount calipers and 12.19-inch plain-face rotors provide the service brake, with a separate internal parking-brake mechanism. Selection depends on the Big Ford New Style housing flange and axle offset. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.
Technical Details
- Manufacturer part number: 140-13181

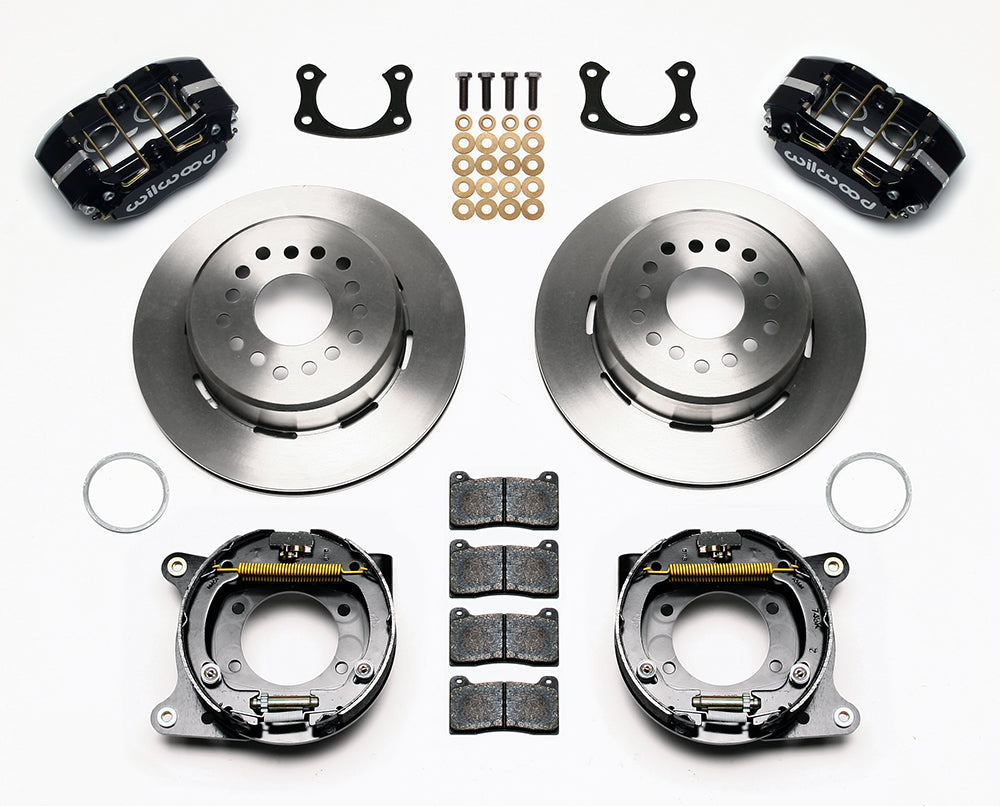

- Application and package: Rear Brake Kits - Street Performance; Rear Kits; Disc; Parking; Sold as a kit.
- Rear axle-end interface: Big Ford New Style; axle/flange offset 2.50 in; 63.5 mm
- Included mechanical components: Mounting hardware: Yes; hub(s): No; spindle(s): No
- Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
- Specified pad compound: BP-10
- Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thickness
- Rotor construction: Iron; Vented; Plain Face
- Caliper assembly: Dynapro Lug Mount; 4 pistons per caliper; Forged Aluminium body; Lug mount
- Piston and finish specification: Stainless pistons; Black calipers; Black Powder Coat
- Hydraulic inlet: 1/8-27 NPT
- Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
- Stud-hole / clearance provision: 0.52 in; 13.21 mm; diameter provision, not a thread designation
- Wheel diameter starting requirement: 15 in; 381 mm; verify the individual wheel against the installation drawing
Fitment & Compatibility
The 1990 Lincoln Town Car row does not replace an axle-housing measurement. Confirm the New Style flange, 2.50-inch offset, axle register and parking-cable connection; hoses and cable hardware are separate. The application table includes a 1990 Lincoln Town Car row, but Wilwood identifies this kit by axle flange and offset. Stock Town Car axle compatibility is not established; confirm the actual or custom axle measurements before purchase.
A maximum flange diameter of 6.61 inches and a 0.050-inch x 45-degree chamfer are specified for rotor clearance. The illustrated register is 2.80 inches; select the documented centering arrangement and match both axle offset and housing-end bolt pattern.
Inspect shock-to-brake clearance as well as the axle dimensions; the installation instructions note that some shock arrangements may need modification or relocation.
Hydraulic hoses/fittings and parking-brake cables, adapters and cable hardware are not included. Choose a compatible cable arrangement for the internal parking brake; universal cable systems may require vehicle or cable modifications.
Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Manufacturer References
For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.
Review the complete application table below with the year, submodel and installation qualifications above.
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1990 | Lincoln | Town Car | All | Disc | Drum | Rear Kit | 1, 2 |
