Product details

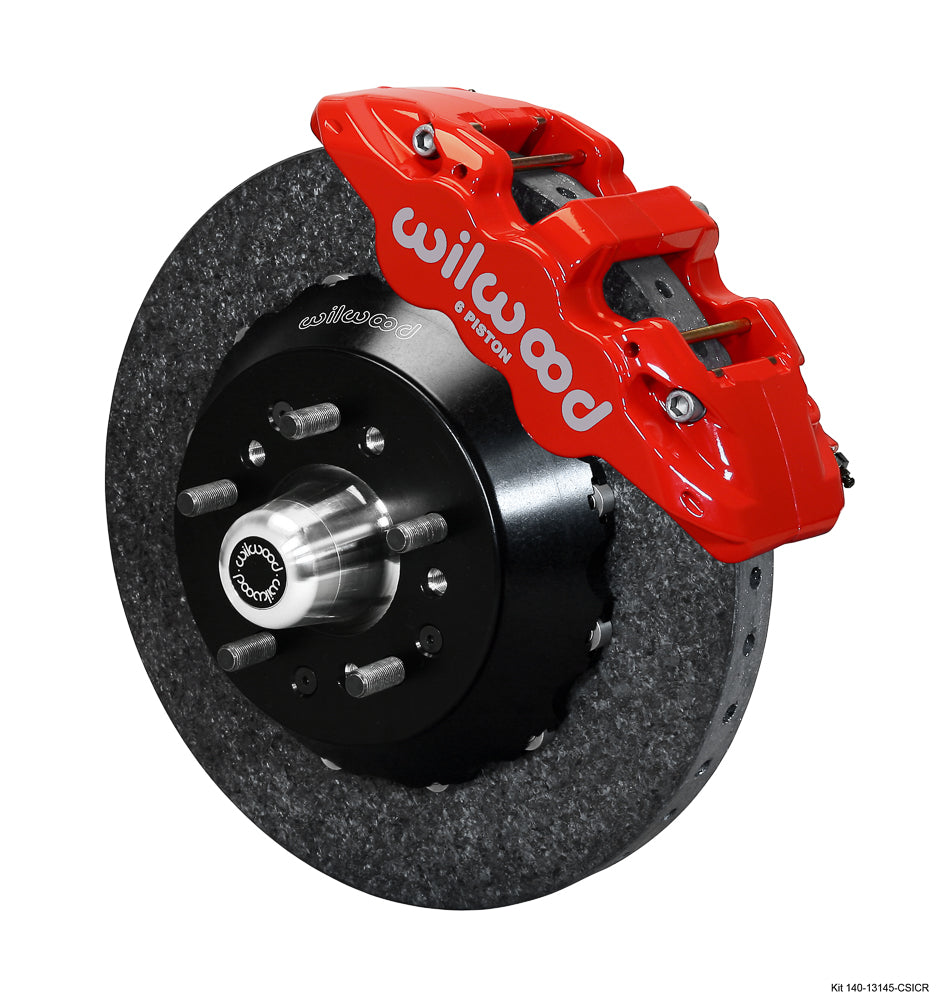

Red powder-coated AERO6 calipers operate against plain-face, vented C/SiC rotors in this ProSpindle brake package. Included hubs locate the floating rotor hats, with the wheel and spindle geometry governing the complete conversion. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.
Technical Details
- Manufacturer part number: 140-13145-CSICR
- Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
- Caliper assembly: AERO6; 6 pistons per caliper; Forged Aluminium body; Radial mount
- Piston and finish specification: Stainless pistons; Red calipers; Red Powder Coat
- Hydraulic inlet: 1/8-27 NPT
- Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Wheel-stud thread: 1/2-20 in
- Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing

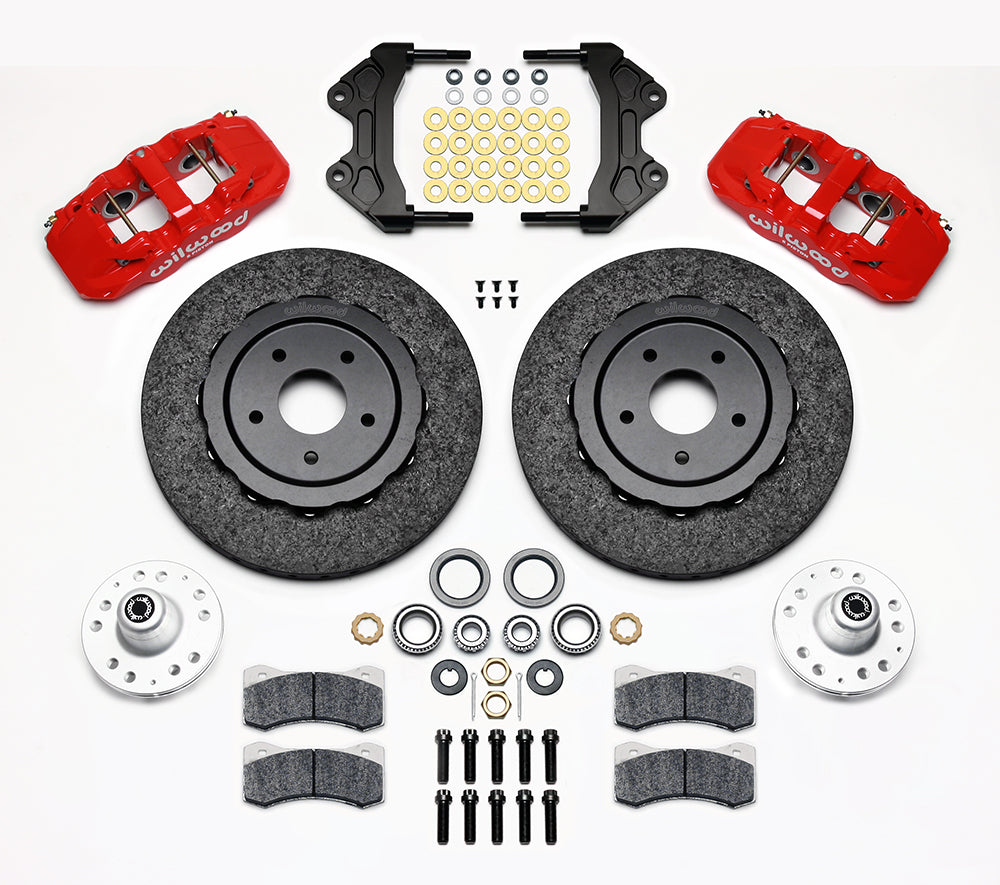

- Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
- Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
- Specified pad compound: PCM
- Separate rotor-hat specification: Aluminum; Type III Anodize; offset 1.740 inch; part 170-13136
- Published wheel-position / hub offset: +.68 inch per side; verify against the documented spindle assembly
- Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.25 in; 31.75 mm thickness
- Rotor construction: C/SiC; Vented; Plain Face
Fitment & Compatibility
This assembly is selected by spindle identity rather than vehicle model alone. Allow for the published +0.68-inch hub offset on each side and compare the wheel profile with DS988 before installation.
DS988 identifies the Wilwood ProSpindle configuration. The broad factory-disc label in the summary does not establish original-spindle vehicle fitment.
Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.
Manufacturer References
With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
