Product details

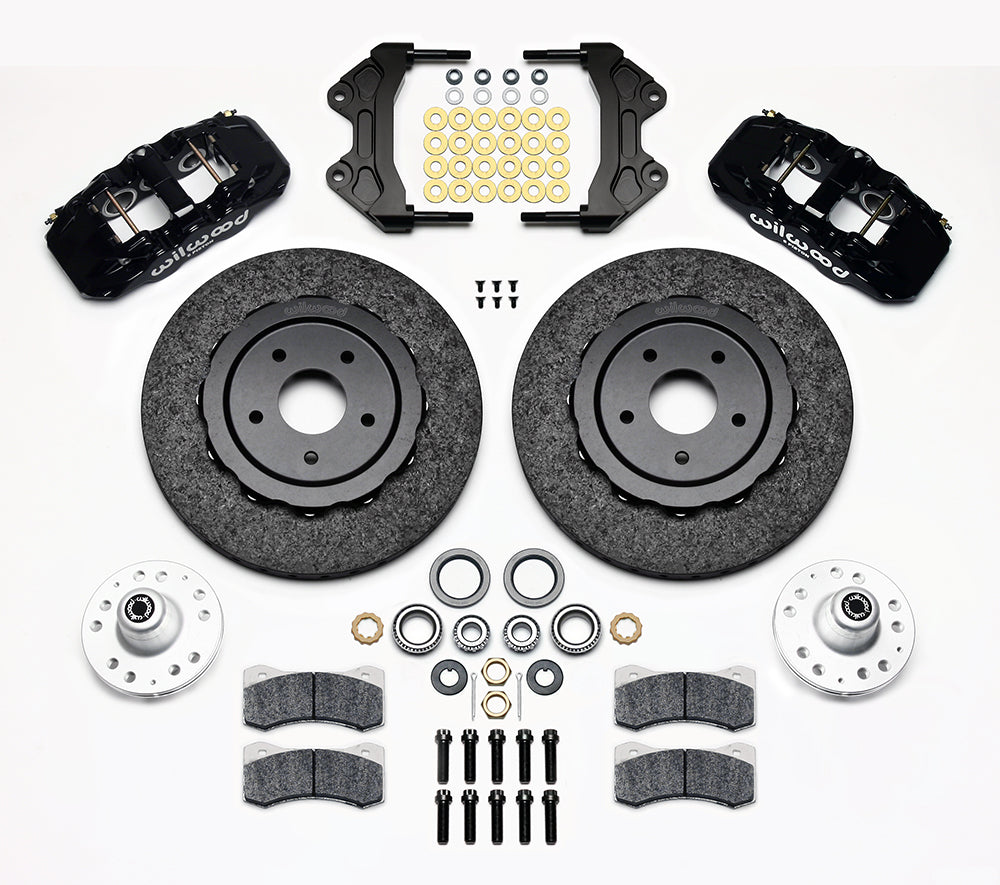

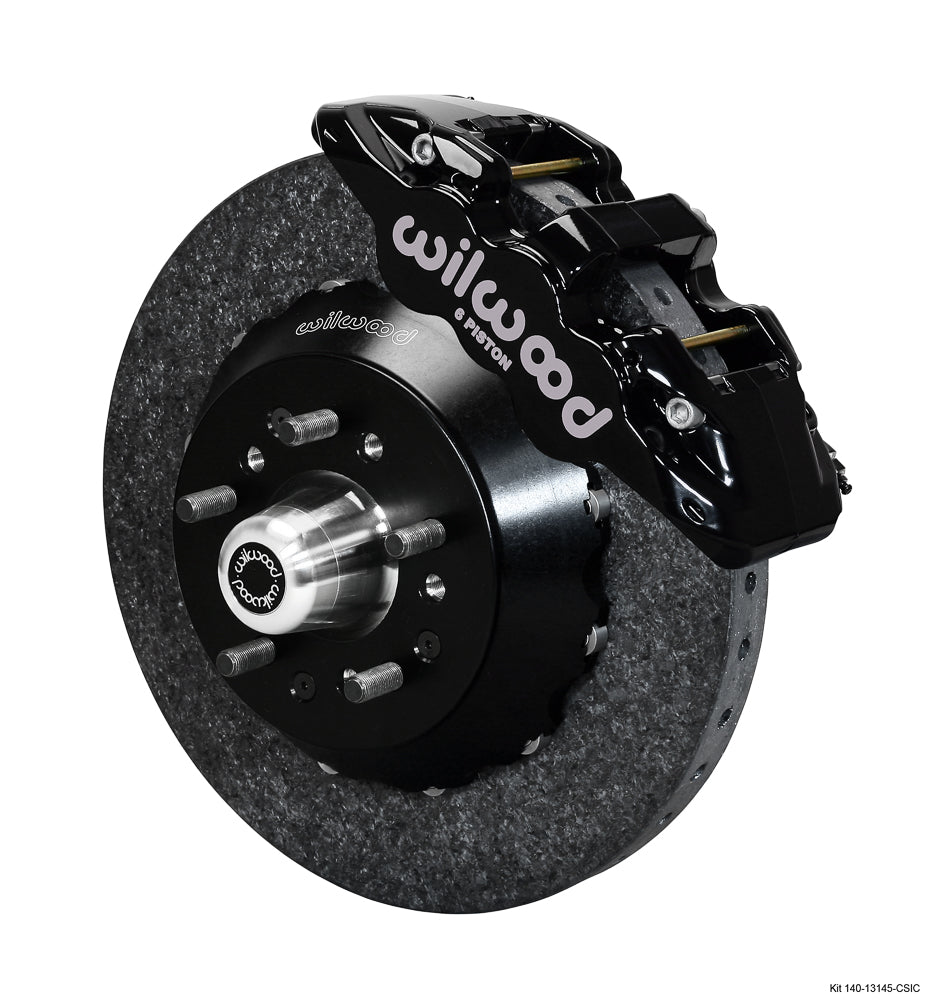

This front conversion combines black AERO6 six-piston calipers, carbon-ceramic rotors and aluminum hubs for the specified Wilwood ProSpindle installation. The bobbin-mounted rotor arrangement is distinct from a conventional iron-rotor brake kit. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.
Technical Details
- Manufacturer part number: 140-13145-CSIC
- Application and package: Front Brake Kits - Street Performance; Front Kits; Disc; Sold as a kit.
- Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.25 in; 31.75 mm thickness
- Rotor construction: C/SiC; Vented; Plain Face
- Caliper assembly: AERO6; 6 pistons per caliper; Forged Aluminium body; Radial mount
- Piston and finish specification: Stainless pistons; Black calipers; Black Powder Coat
- Hydraulic inlet: 1/8-27 NPT
- Wheel bolt pattern(s): 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Wheel-stud thread: 1/2-20 in
- Wheel diameter starting requirement: 18 in; 457.2 mm; verify the individual wheel against the installation drawing
- Included mechanical components: Mounting hardware: Yes; hub(s): Yes; spindle(s): No
- Hydraulic components supplied: Master cylinder: No; brake booster: No; brake lines: No
- Specified pad compound: PCM
- Separate rotor-hat specification: Aluminum; Type III Anodize; offset 1.740 inch; part 170-13136
- Published wheel-position / hub offset: +.68 inch per side; verify against the documented spindle assembly
Fitment & Compatibility
Match the actual ProSpindle configuration and its bearing hardware. The manufacturer lists a +0.68-inch wheel-position change per side; verify the fender, wheel mounting face and radial clearance before choosing wheels.
DS988 identifies the Wilwood ProSpindle configuration. The broad factory-disc label in the summary does not establish original-spindle vehicle fitment.
Flexible brake lines are not included. Original lines are not assumed to connect to the Wilwood calipers; select the application-specific or correctly sized universal hose and matching fittings.
