Wilwood GT Slotted Front Brake Kit with Red Dynapro Calipers for Mini Cooper Four-Lug Applications (2002–2015)

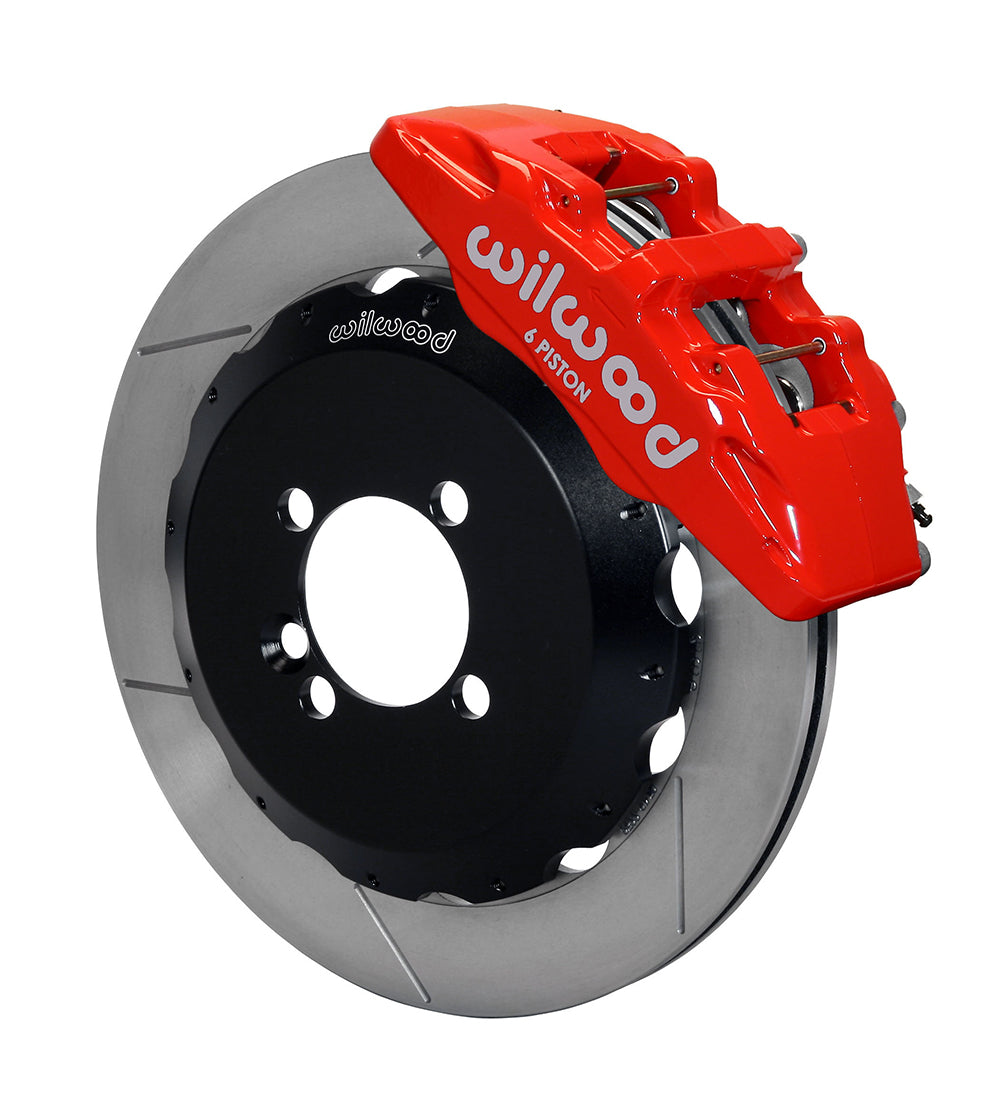

GT slotted 12.88-inch rotors and red Dynapro six-piston calipers make up this Wilwood Mini Cooper front package. The separate-hat assembly uses the compatible original four-lug hubs, with BP-10 pads, front hoses and mounting components supplied. Exact body style and production year matter across the Cooper range; later Coupe and Convertible coverage requires direct confirmation before the conversion is selected. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13062-R
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hat).
• Calipers: Dynapro 6; 6-piston; Red Powder Coat.
• Piston bore dimensions: 1.38, 1.00, 1.00 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 12.88-inch outside diameter × 0.81-inch width; GT Slotted; Iron; Plain surface finish.
• Rotor ventilation: 48 curved vanes.
• Rotor hats: Big Brake Hat - Short Offset; Aluminum; Black E-Coat.
• Wheel bolt circles: 4 x 3.93 inches.

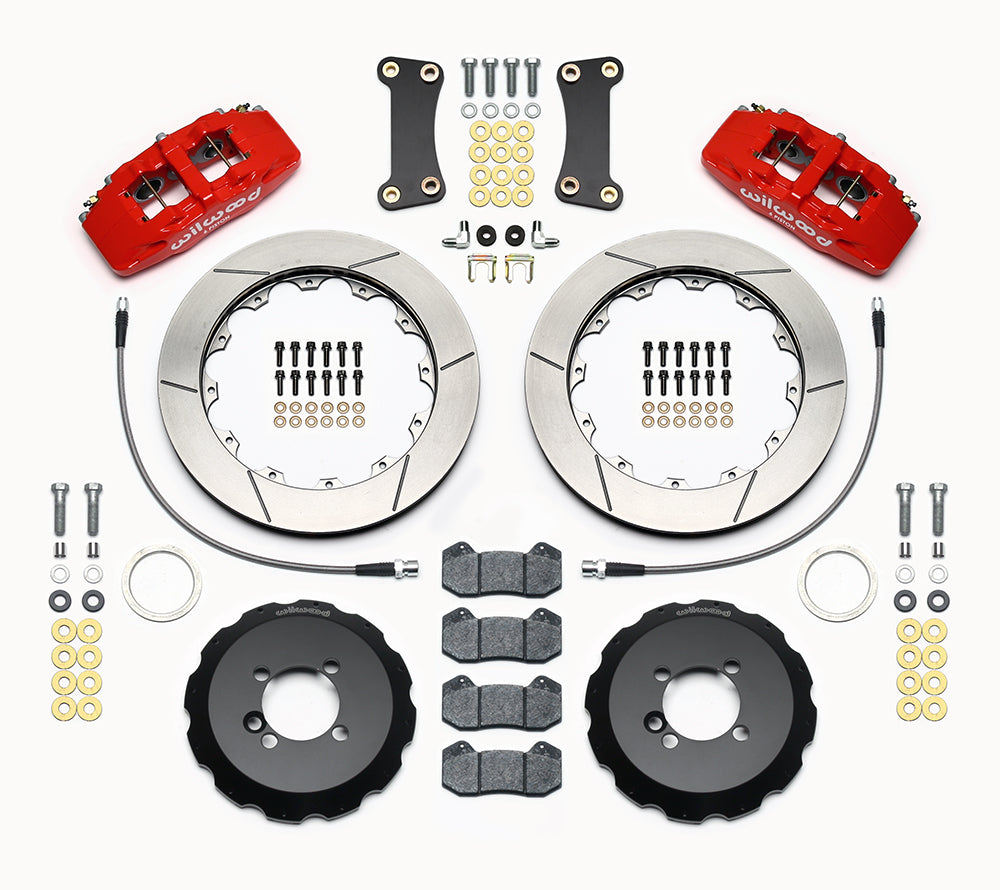

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 17 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Confirm the four-lug arrangement and the specific hatchback, Coupe or Convertible entry, excluding Countryman. The current detailed manufacturer listing does not establish the 2014–2015 Coupe/Convertible applications, so verify those separately. Inspect the original hub and upright and follow the instructions for rotor registration and caliper position. Use the full 17-inch wheel template at the spokes and barrel. Secure the flex lines through steering travel and check hydraulic balance against the car's retained rear brakes.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.

Manufacturer warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
