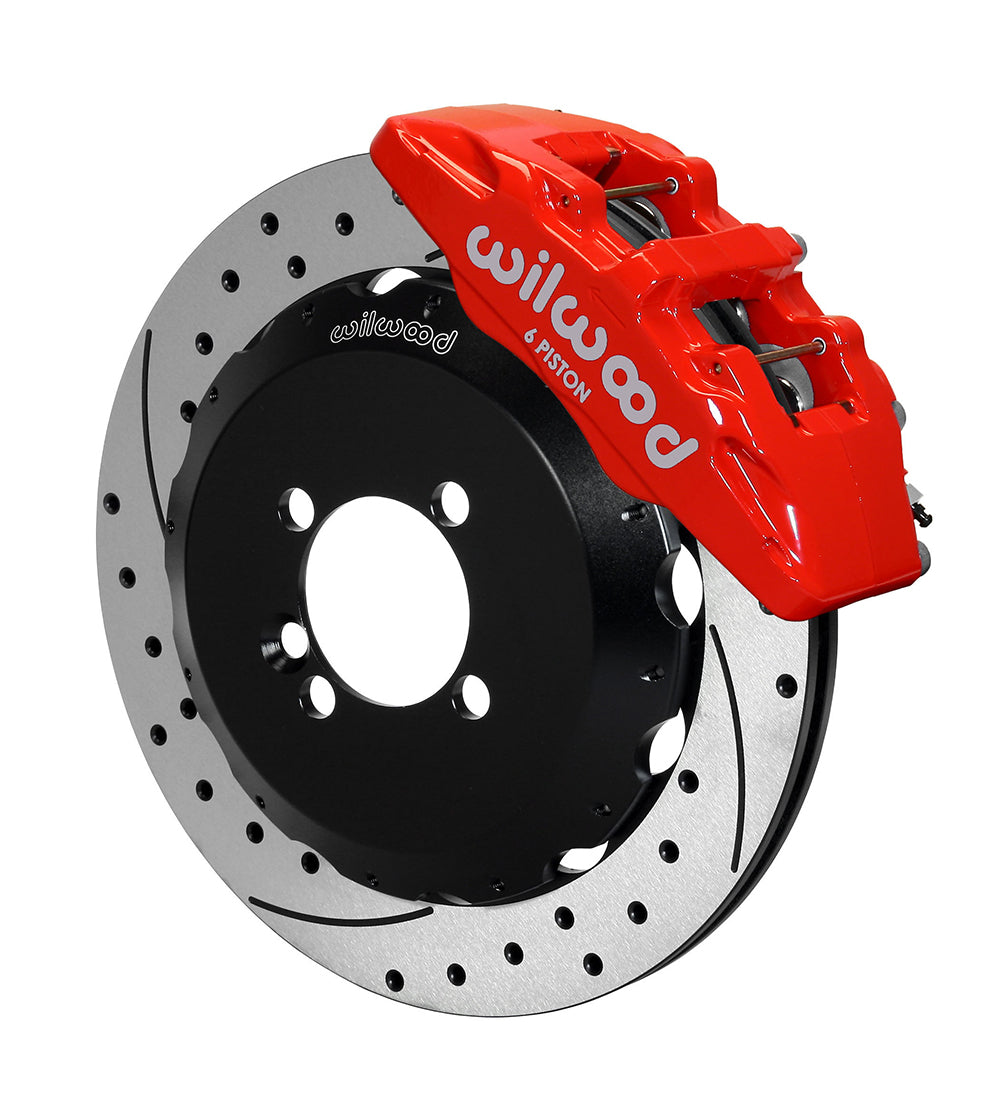

Wilwood Front Red Dynapro Caliper and Drilled-Rotor Kit for Four-Lug Mini Cooper (2002–2015), 12.88-Inch Rings

Red Dynapro calipers distinguish this drilled/slotted Wilwood front kit for the compatible four-lug Mini Cooper arrangement. The 12.88-inch rings mount on separate aluminum hats with the original hubs retained. BP-10 pads and front lines accompany the six-piston package, which must be selected by body style, production year and original mounting geometry rather than the Cooper or Cooper S name alone. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13062-DR
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hat).
• Calipers: Dynapro 6; 6-piston; Red Powder Coat.
• Piston bore dimensions: 1.38, 1.00, 1.00 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 12.88-inch outside diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat surface finish.
• Rotor ventilation: 48 curved vanes.
• Rotor hats: Big Brake Hat - Short Offset; Aluminum; Black E-Coat.
• Wheel bolt circles: 4 x 3.93 inches.

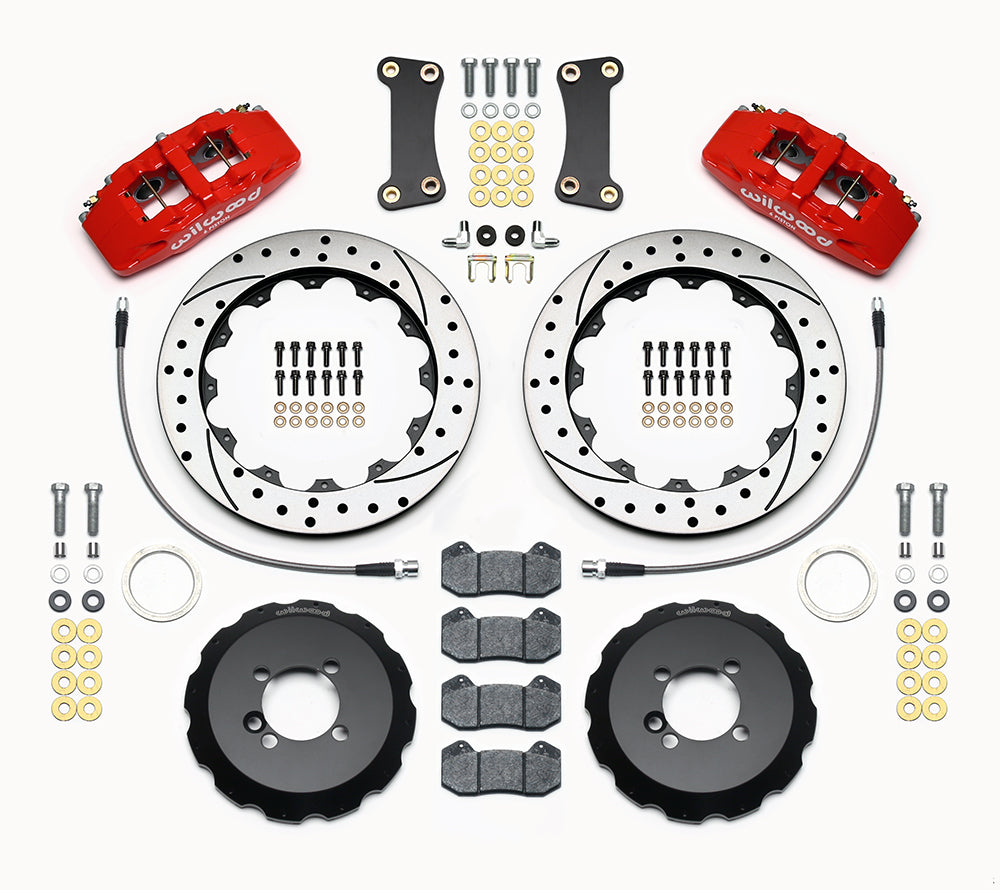

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 17 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Establish the actual four-lug hub and exclude Countryman before checking the specific body/year application. Obtain confirmation for the 2014–2015 Coupe and Convertible rows, which are not substantiated by the current detailed manufacturer vehicle list. Follow the hat assembly and bracket-shimming instructions, then assess the full wheel template. Check hose clearance throughout steering and suspension movement. Verify rotor freedom, pedal travel and the complete front/rear hydraulic balance before testing the installation.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
