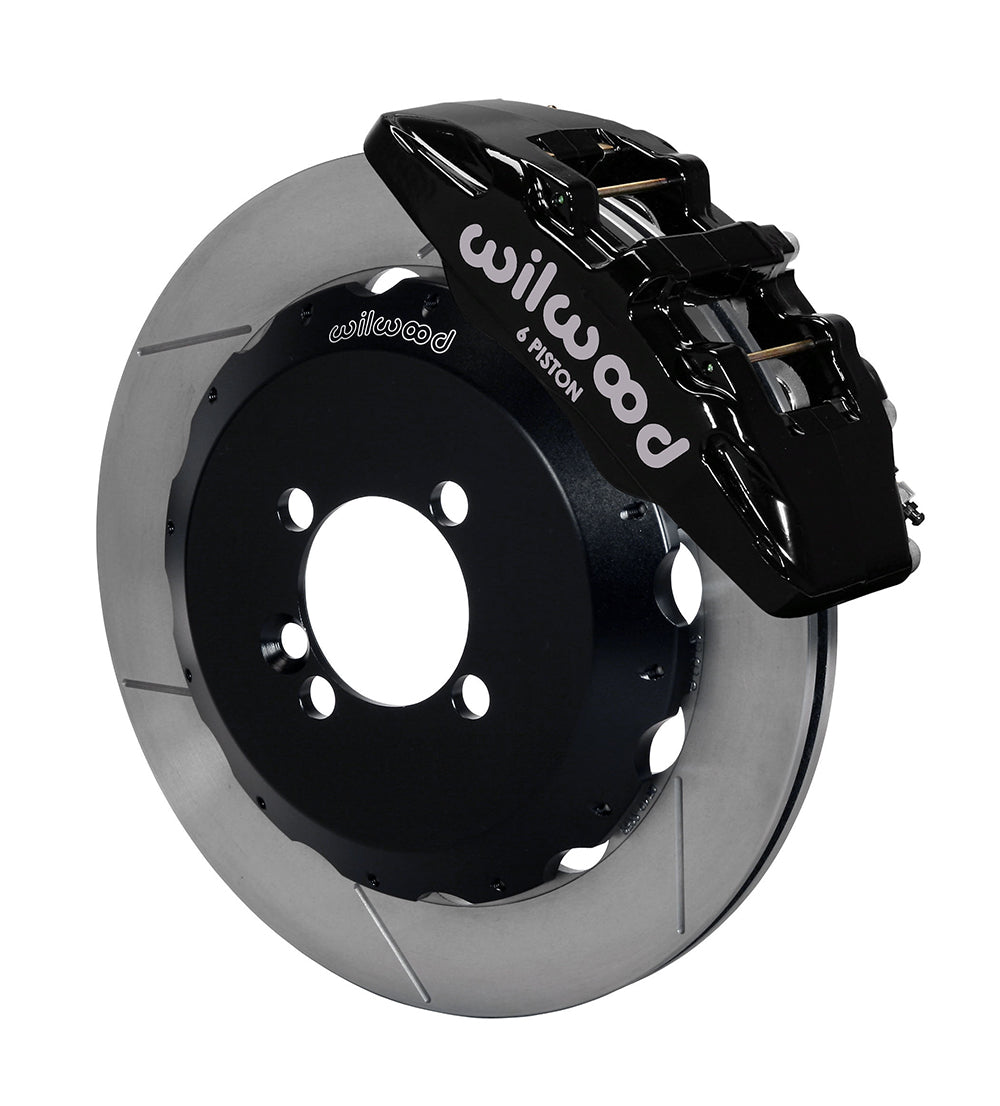

Wilwood Front Dynapro 6 Brake Kit for Mini Cooper Four-Lug Applications (2002–2015), Black Calipers, GT Slotted 12.88-Inch Rotors

Black Dynapro 6 calipers and GT slotted 12.88-inch rotors form this Wilwood front package for the specified four-lug Mini Cooper hub arrangement. The six-piston conversion uses separate hats and includes BP-10 pads and front lines. Body style, generation and original mounting geometry must be identified directly; later Coupe and Convertible applications require confirmation before selecting the package. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13062
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hat).
• Calipers: Dynapro 6; 6-piston; Black Powder Coat.
• Piston bore dimensions: 1.38, 1.00, 1.00 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 12.88-inch outside diameter × 0.81-inch width; GT Slotted; Iron; Plain surface finish.
• Rotor ventilation: 48 curved vanes.
• Rotor hats: Big Brake Hat - Short Offset; Aluminum; Black E-Coat.
• Wheel bolt circles: 4 x 3.93 inches.

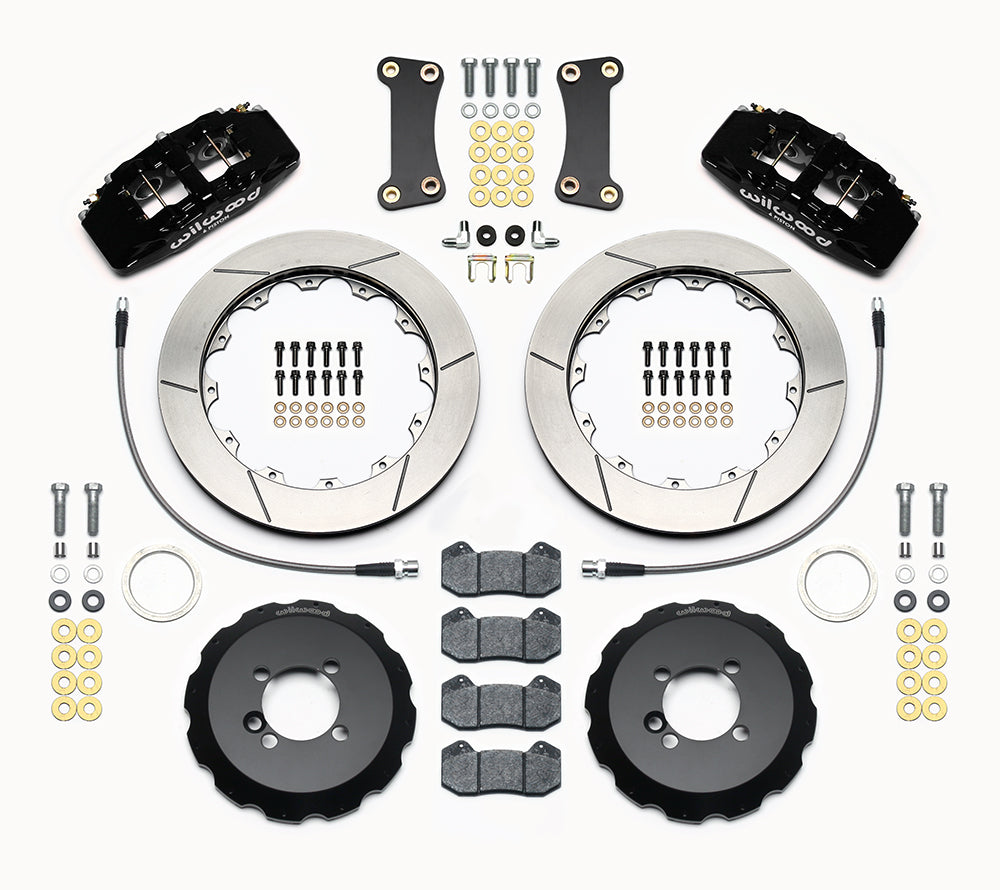

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 17 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Exclude Countryman and confirm four-lug hubs, body style and production year. The installation document describes the four-lug arrangement, while the current detailed vehicle listing does not substantiate the 2014–2015 Coupe/Convertible rows; obtain confirmation for those applications. Inspect original hub registration and follow the rotor/bracket alignment procedure. Compare the wheel with the complete 17-inch minimum drawing. Route hoses through steering travel and verify front/rear hydraulic balance with the installed rear brakes.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
