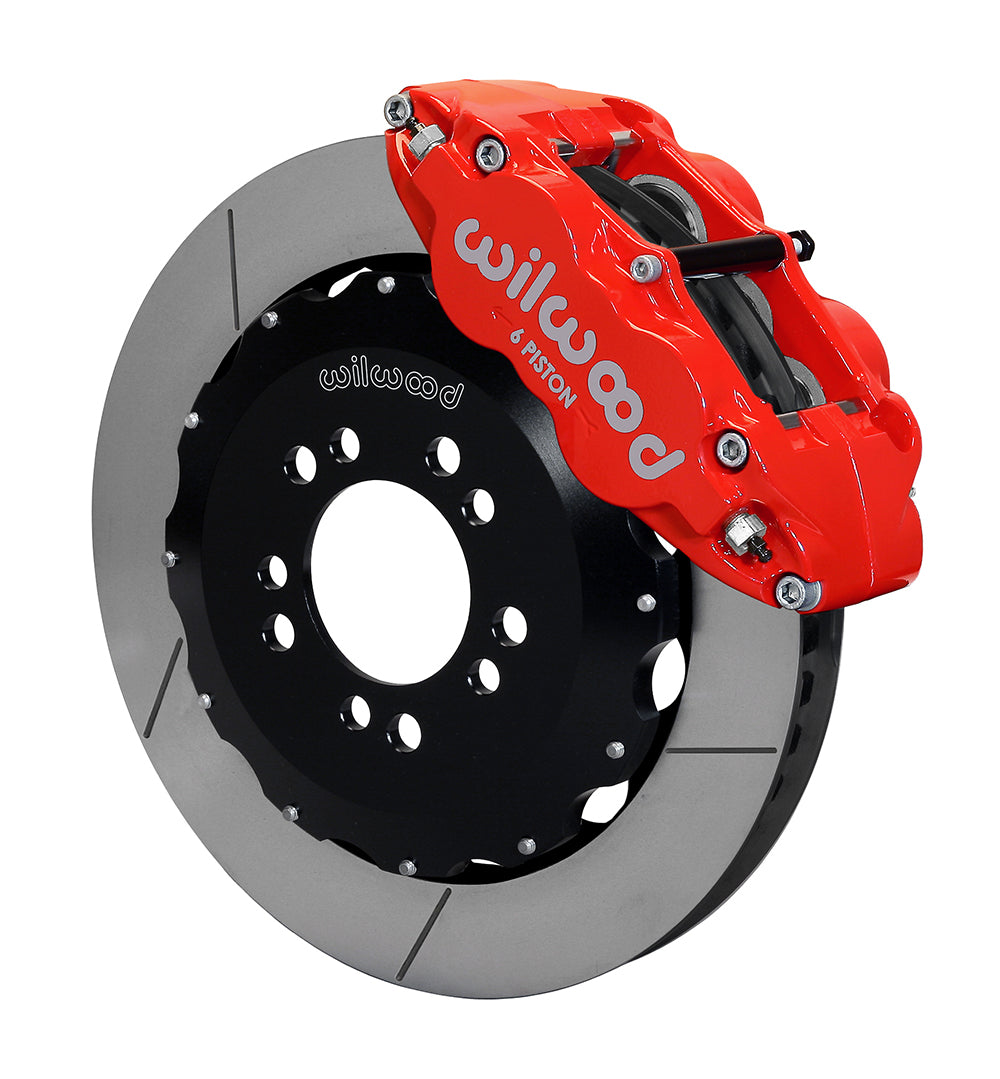

Wilwood GT Slotted 14-Inch Front Brake Kit, Red Calipers, Hyundai Genesis Coupe (2010–2016)

GT slotted 14-inch rotors work with red Superlite six-piston calipers in this Wilwood front assembly for the supported Hyundai Genesis Coupe configurations. Separate aluminum hats mount the Spec-37 rings to the compatible original hubs. BP-10 pads, front flex lines and mounting hardware are included, while the model-year and engine/trim restrictions must be checked for the individual vehicle. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13044-R
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat).
• Calipers: Forged Narrow Superlite 6R; 6-piston; Red Powder Coat.
• Piston bore dimensions: 1.62, 1.12, 1.12 inches; stainless pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 14.00-inch outside diameter × 1.25-inch width; GT Slotted; Spec-37 Iron; Black Electro Coat surface finish.
• Rotor ventilation: 72 curved vanes.
• Rotor hats: Big Brake Hat - Flared Bell; Aluminum; Black E-Coat.
• Wheel bolt circles: 5 x 4.25; 5 x 4.50 inches.

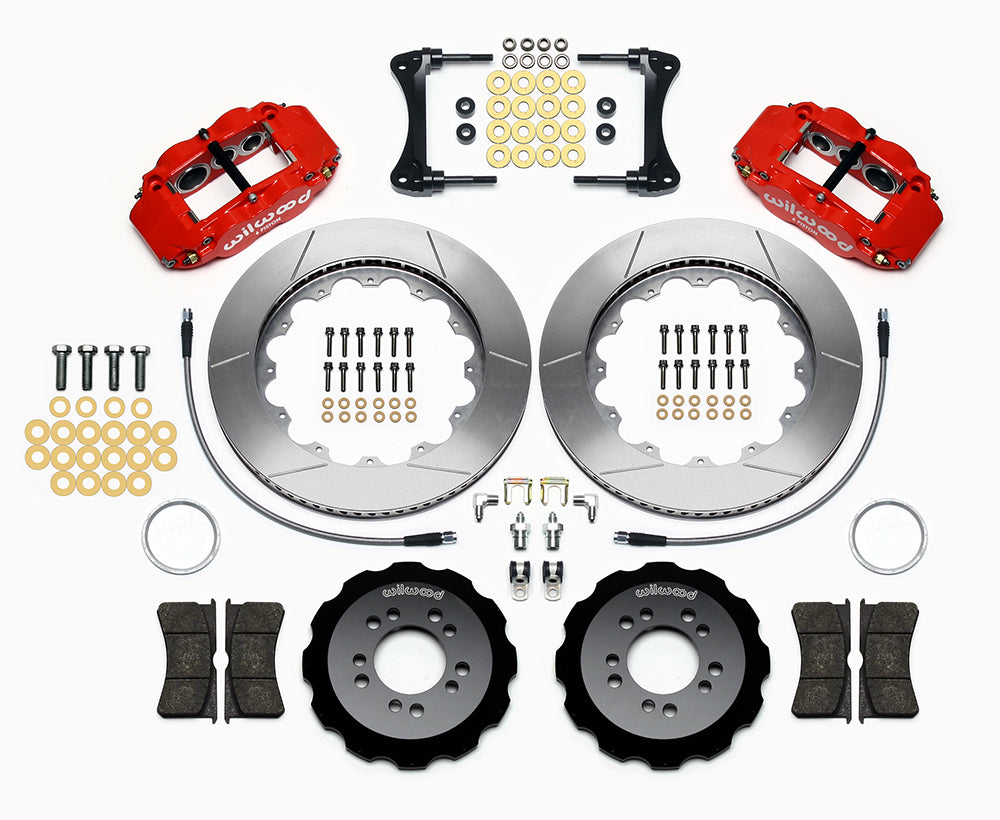

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 18 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Compare the exact trim and year with the table, then inspect factory hub registration and any altered upright components. Follow the instructions for rotor assembly, bracket shims and caliper centering. Use the full 18-inch minimum template to establish clearance at the actual wheel's spokes and barrel. Route the supplied hoses without tension through steering movement and verify rotor freedom. Confirm pedal travel and proportioning with the retained master cylinder and rear brake system.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
