Wilwood Red Six-Piston Front Package for Hyundai Genesis Coupe (2010–2016), Drilled/Slotted 14-Inch Rotors

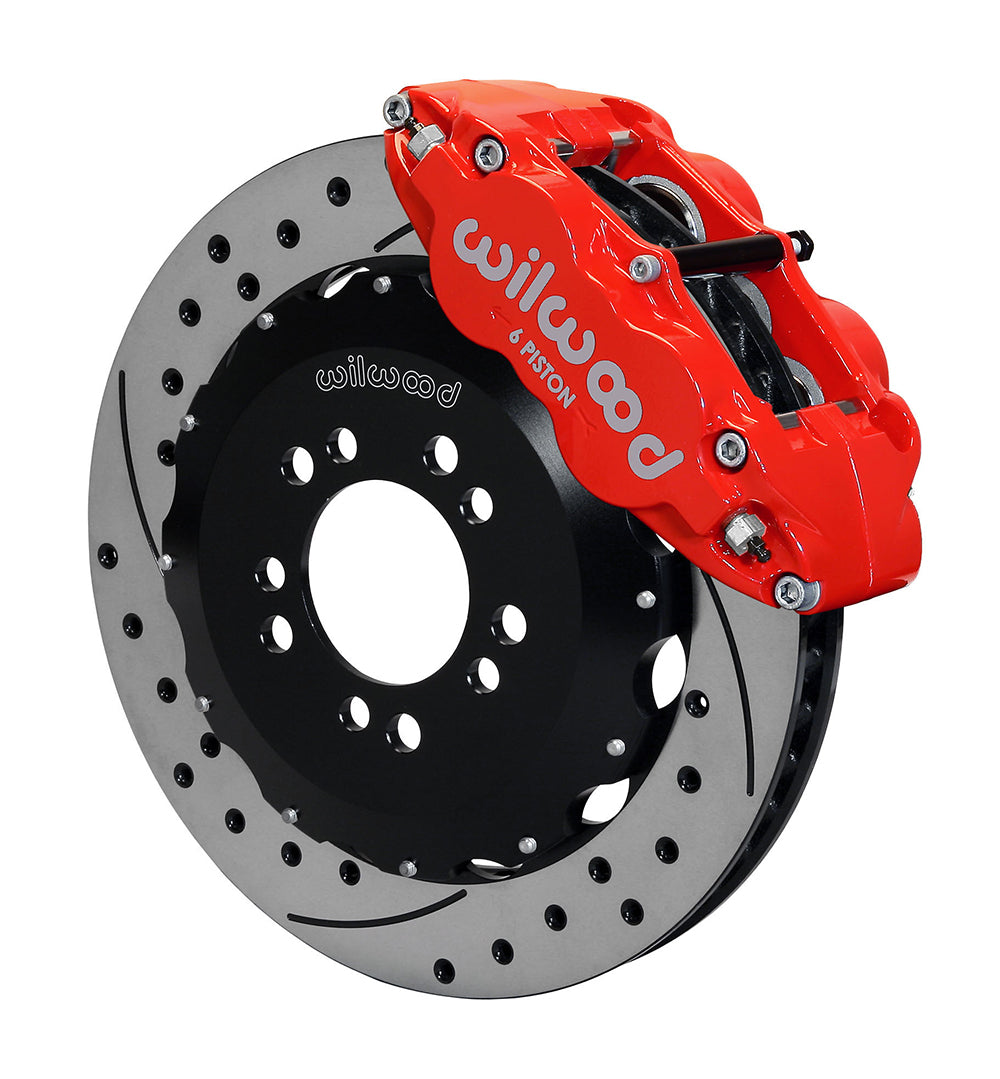

Red Superlite 6R calipers distinguish this drilled/slotted 14-inch Wilwood front package for the listed Genesis Coupe applications. The two-piece rotor assembly retains the compatible factory hubs and uses BP-10 pads with six-piston radial-mount calipers. The supplied brackets, hardware and front lines must be installed to the specified geometry, making original upright and wheel identification part of the selection process. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13044-DR
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat).
• Calipers: Forged Narrow Superlite 6R; 6-piston; Red Powder Coat.
• Piston bore dimensions: 1.62, 1.12, 1.12 inches; stainless pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 14.00-inch outside diameter × 1.25-inch width; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface finish.
• Rotor ventilation: 72 curved vanes.
• Rotor hats: Big Brake Hat - Flared Bell; Aluminum; Black E-Coat.
• Wheel bolt circles: 5 x 4.25; 5 x 4.50 inches.

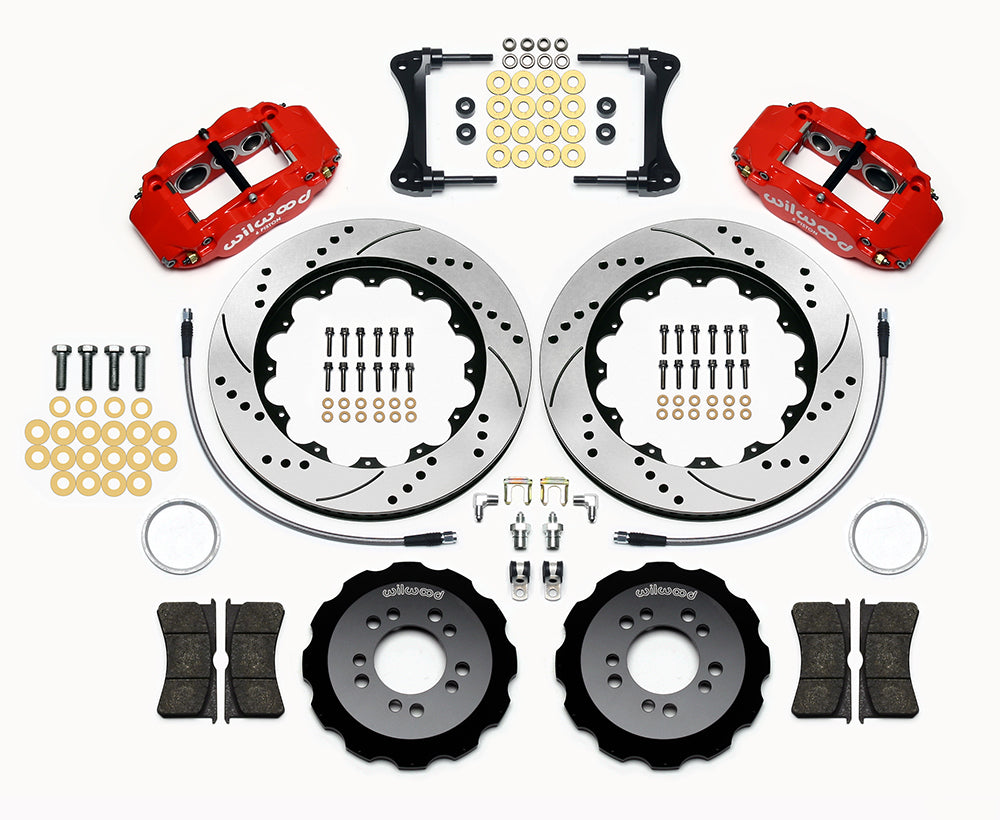

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 18 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Read the individual engine/trim and year rows before comparing the existing front hub and spindle. Assemble the hats and set caliper alignment according to the instructions. Check the wheel drawing for both barrel and spoke clearance; nominal 18-inch diameter is only a starting point. Secure the hydraulic lines so full steering and suspension movement cannot pull or rub them. Review the front conversion with the rear package and verify the completed brake-system balance.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
