Wilwood Front Black Six-Piston Caliper Kit with Drilled 14-Inch Rings and Flex Lines, Hyundai Genesis Coupe (2010–2016)

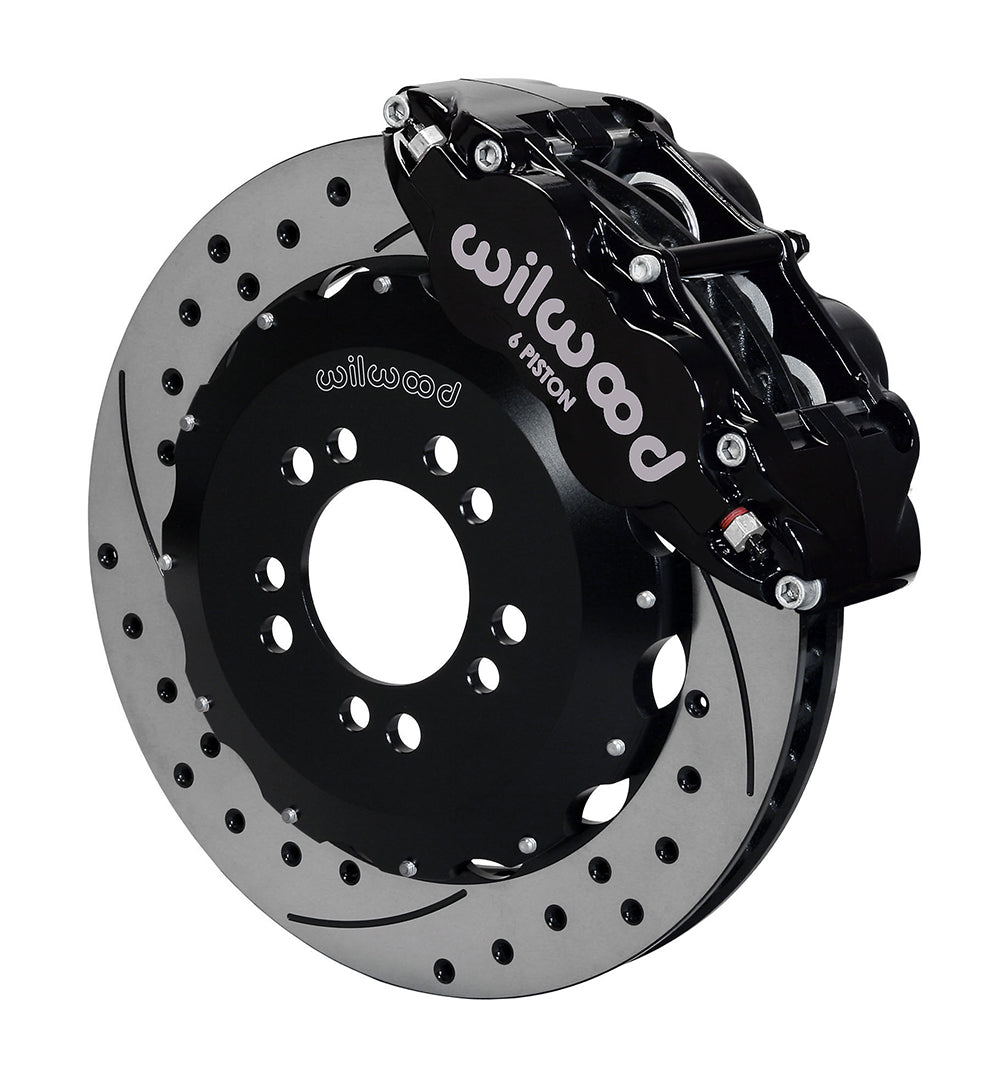

Black six-piston Superlite calipers and drilled/slotted 14-inch rotor rings form this Wilwood Genesis Coupe front conversion. The Spec-37 friction rings attach to separate hats, using the compatible original factory hub and disc spindle. Front lines, BP-10 pads and radial mounting components are supplied as the selected package, with exact vehicle equipment and wheel design determining installation suitability. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13044-D
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat).
• Calipers: Forged Narrow Superlite 6R; 6-piston; Black Powder Coat.
• Piston bore dimensions: 1.62, 1.12, 1.12 inches; stainless pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 14.00-inch outside diameter × 1.25-inch width; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface finish.
• Rotor ventilation: 72 curved vanes.
• Rotor hats: Big Brake Hat - Flared Bell; Aluminum; Black E-Coat.
• Wheel bolt circles: 5 x 4.25; 5 x 4.50 inches.

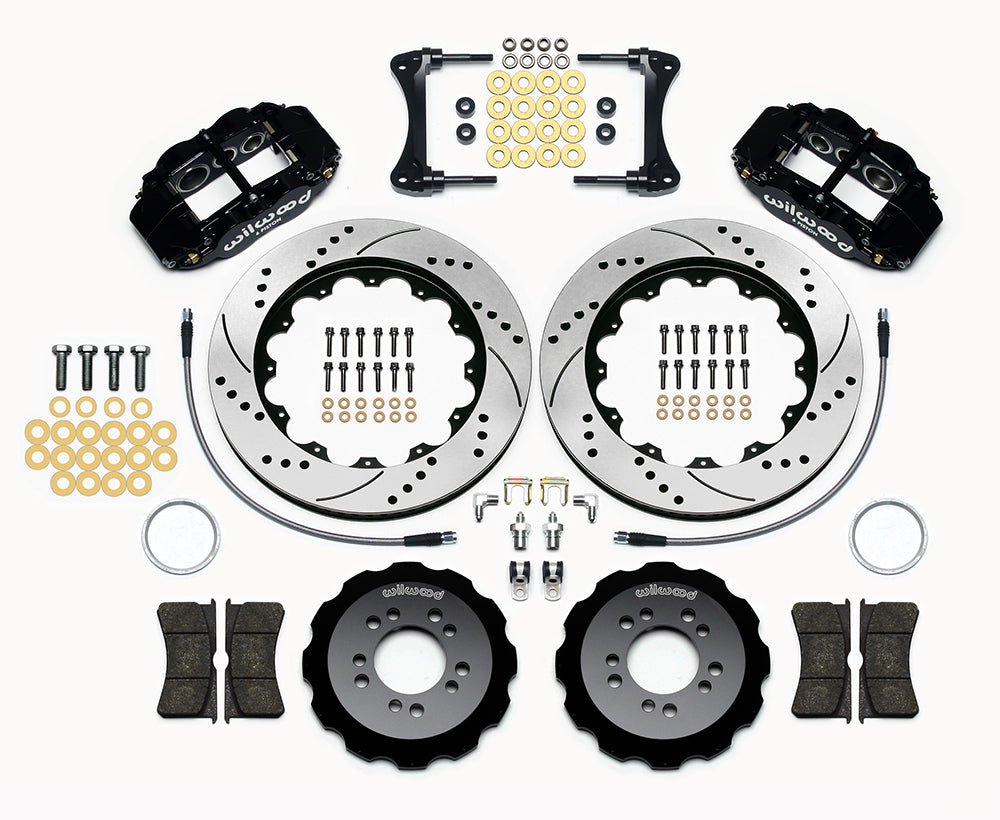

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 18 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Verify production year and the specific 2.0T or 3.8-litre trim entry, rather than treating the entire coupe range as one brake configuration. Inspect hub seating before following the rotor and bracket assembly procedure. Use the prescribed shims to center the calipers, and compare the actual rim with the full clearance template. Check line routing at steering lock and suspension travel. Confirm pedal movement and the front/rear braking relationship after the complete system is assembled.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.

Manufacturer warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
