Wilwood GT Slotted Front Brake Kit, Hyundai Genesis Coupe (2010–2016), Red Calipers, 13.06-Inch Rotors

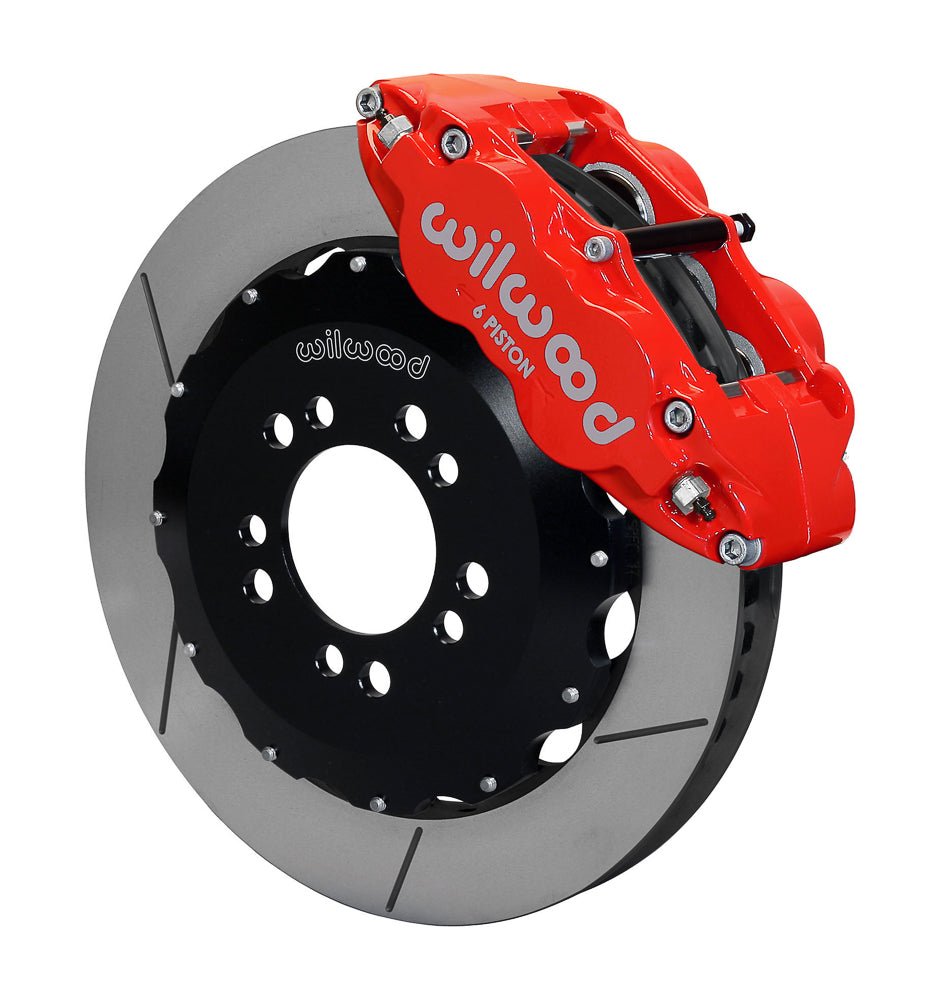

GT slotted 13.06-inch rotors and red six-piston Superlite calipers make up this Wilwood front assembly for the listed Hyundai Genesis Coupe models. The package uses aluminum hats on the compatible original hubs, with front lines, pads and mounting hardware supplied. Engine and trim coverage differs across the vehicle list, so the overall year span cannot be treated as universal model fitment. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13043-R
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat).
• Calipers: Forged Narrow Superlite 6R; 6-piston; Red Powder Coat.
• Piston bore dimensions: 1.62, 1.12, 1.12 inches; stainless pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 13.06-inch outside diameter × 1.25-inch width; GT Slotted; Spec-37 Iron; Black Electro Coat surface finish.
• Rotor ventilation: 48 curved vanes.
• Rotor hats: Big Brake Hat - Flared Bell; Aluminum; Black E-Coat.
• Wheel bolt circles: 5 x 4.25; 5 x 4.50 inches.
• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 17 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Establish the precise year and engine/trim row before comparing the factory disc spindle and hub register. Follow the rotor assembly and bracket alignment instructions and verify caliper centering with the hats seated. Compare the wheel interior with the full template, checking spoke depth as well as barrel diameter. Route the supplied lines freely through steering travel. Assess the chosen front hardware alongside the retained rear brakes and verify the completed system before use.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.

Manufacturer warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
