Wilwood Front Red Caliper and Drilled 13.06-Inch Rotor Conversion, Hyundai Genesis Coupe (2010–2016), Supplied Flex Lines

Red Superlite 6R calipers distinguish this drilled/slotted Wilwood front kit for the supported Genesis Coupe configurations. The 13.06-inch iron rings bolt to separate aluminum hats and use BP-10 pads with the selected six-piston calipers. Application-specific hoses and mounting hardware are included, with factory hub and upright compatibility still essential before the conversion can be installed correctly. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13043-DR

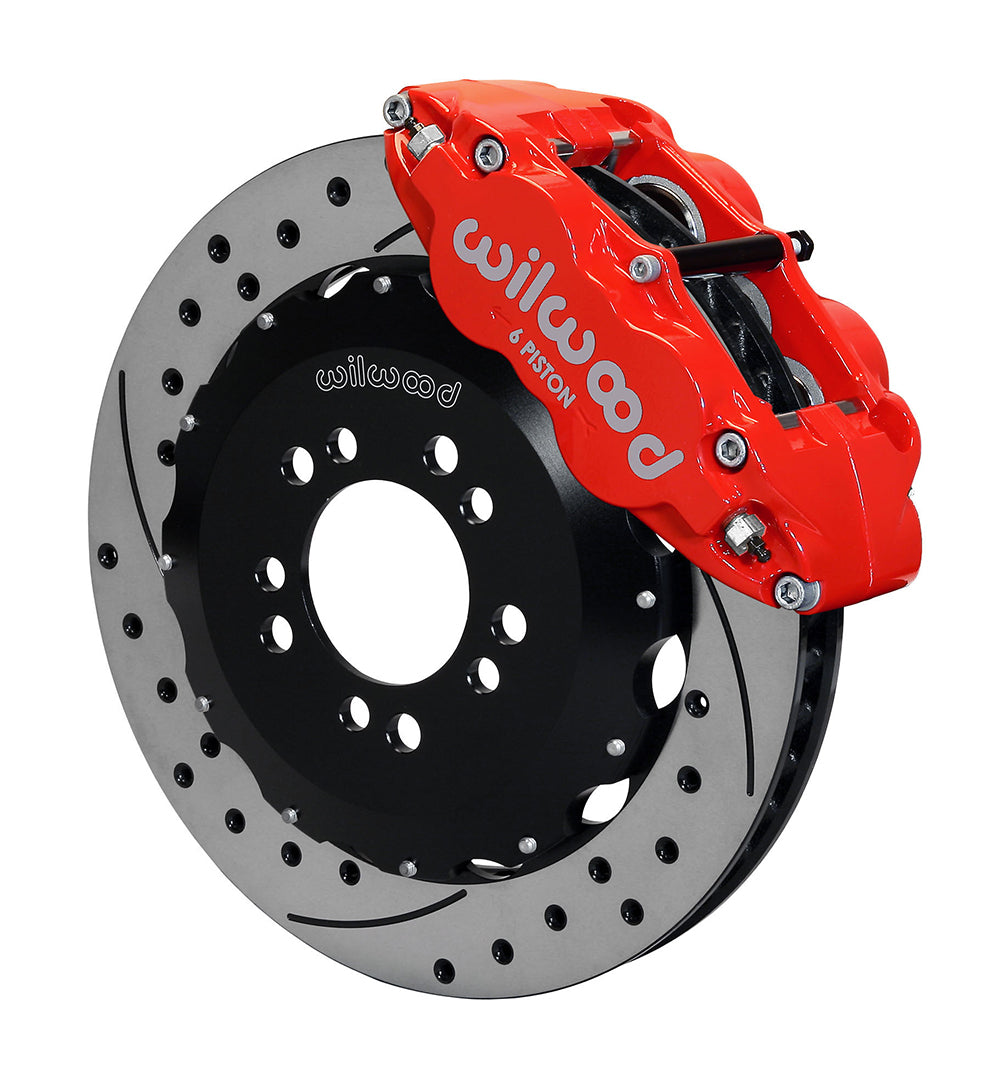

• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat).
• Calipers: Forged Narrow Superlite 6R; 6-piston; Red Powder Coat.
• Piston bore dimensions: 1.62, 1.12, 1.12 inches; stainless pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 13.06-inch outside diameter × 1.25-inch width; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface finish.
• Rotor ventilation: 48 curved vanes.
• Rotor hats: Big Brake Hat - Flared Bell; Aluminum; Black E-Coat.
• Wheel bolt circles: 5 x 4.25; 5 x 4.50 inches.

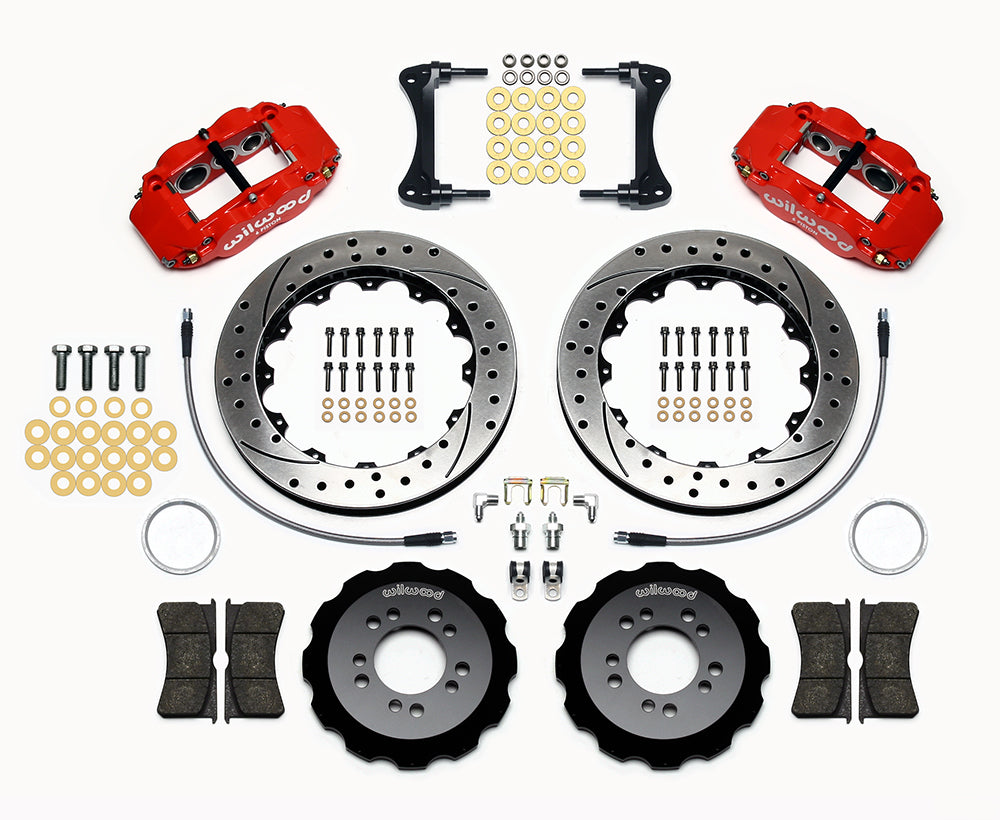

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 17 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Confirm the engine, trim and year from the specific application row. Inspect hub seating and compare any changed spindle or front brake components with the assembly drawing. Follow the bracket-shimming procedure to establish rotor/caliper alignment. A nominal 17-inch wheel does not guarantee clearance, so assess the full spoke and barrel profile. Secure the hoses against steering and suspension interference, then verify pedal travel and proportioning with the existing rear package.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.
