Wilwood Drilled 13.06-Inch Front Brake Conversion, Hyundai Genesis Coupe (2010–2016), Black Six-Piston Calipers

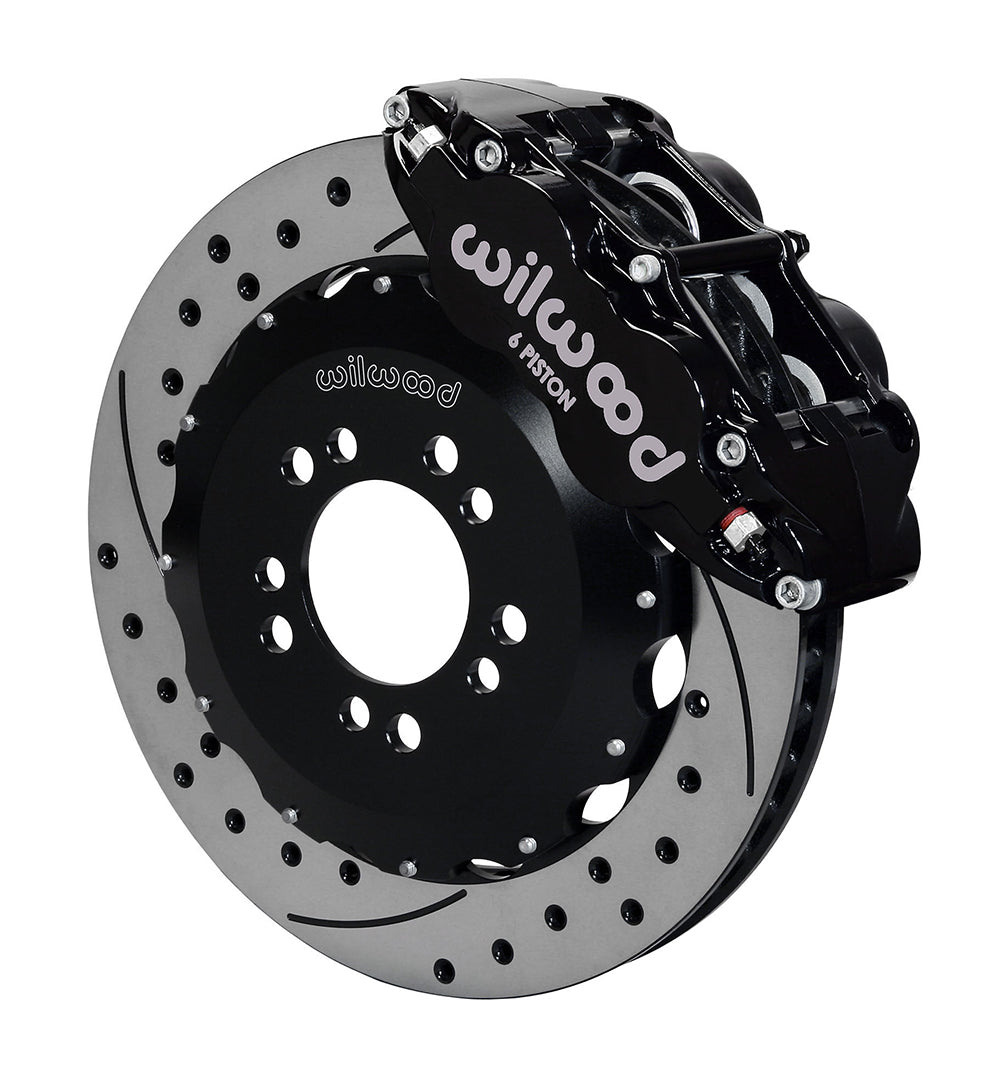

This Wilwood Genesis Coupe front package pairs black six-piston calipers with drilled/slotted 13.06-inch Spec-37 rotor rings. Separate hats retain the compatible original hub arrangement, and the kit supplies BP-10 pads, front hoses and radial mounting components. Correct engine/trim identification remains necessary across the listed years, particularly when the car has previously received a different front brake setup. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13043-D
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat).
• Calipers: Forged Narrow Superlite 6R; 6-piston; Black Powder Coat.
• Piston bore dimensions: 1.62, 1.12, 1.12 inches; stainless pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 13.06-inch outside diameter × 1.25-inch width; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface finish.
• Rotor ventilation: 48 curved vanes.
• Rotor hats: Big Brake Hat - Flared Bell; Aluminum; Black E-Coat.
• Wheel bolt circles: 5 x 4.25; 5 x 4.50 inches.

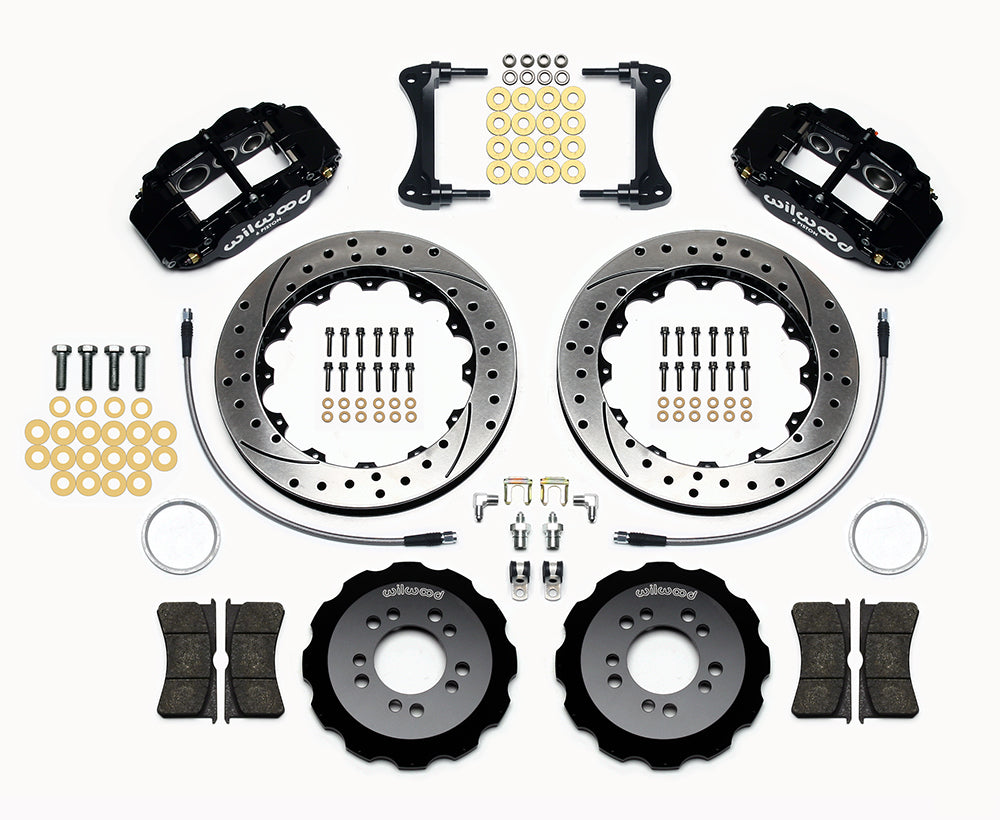

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 17 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Read the individual engine and trim row rather than assuming all Genesis Coupe equipment is interchangeable. Compare the original hub register and spindle mounting points with the installation instructions. Assemble the rotor hats and center the calipers before checking the wheel envelope. Use the full clearance template, including spoke offset. Ensure the supplied flex lines remain unstrained at steering lock and verify the complete hydraulic arrangement against the rear brakes and master cylinder.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
