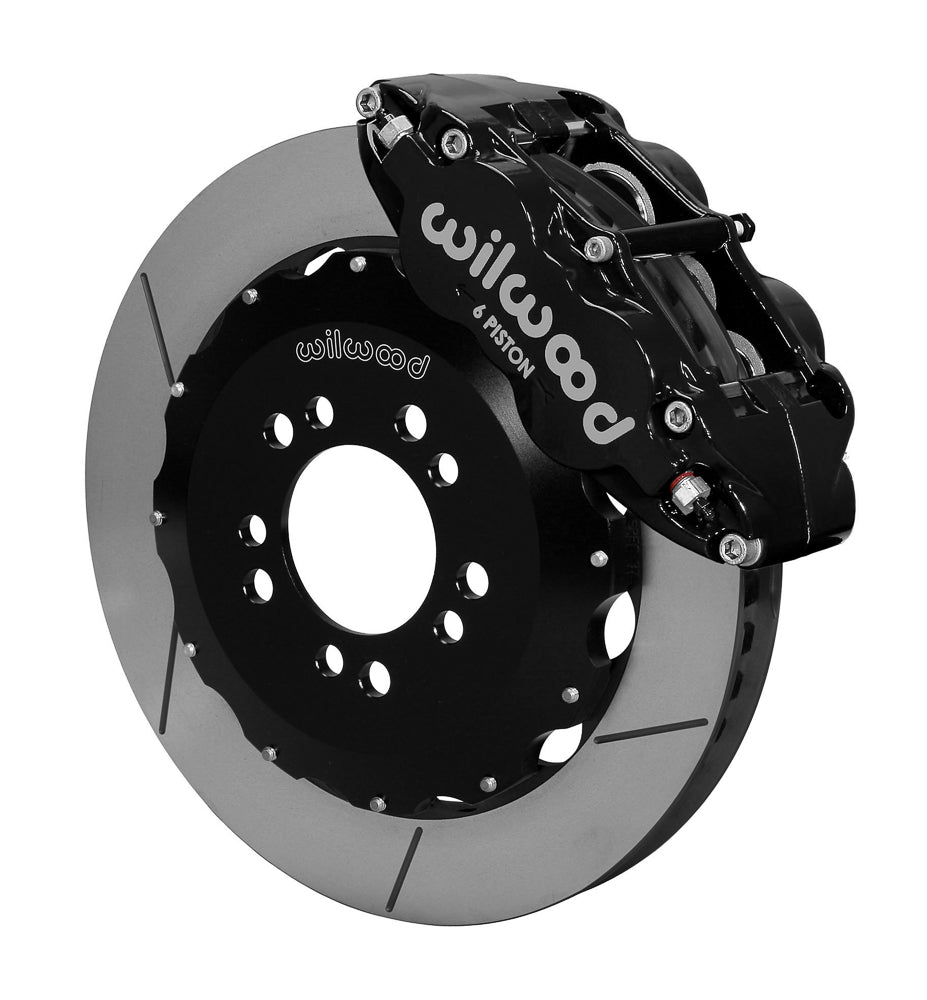

Wilwood Front Superlite 6R Brake Kit for Hyundai Genesis Coupe (2010–2016), Black Calipers, GT Slotted 13.06-Inch Rotors

The Genesis Coupe applications listed for this Wilwood conversion retain their compatible front hubs while replacing the braking package with black Superlite six-piston calipers and GT slotted rings. Each rotor measures 13.06 inches across and 1.25 inches wide, using 48 curved vanes in Spec-37 iron. Aluminum hats, radial brackets, BP-10 pads and front hoses complete the selected assembly for the appropriate factory upright. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13043
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat).
• Calipers: Forged Narrow Superlite 6R; 6-piston; Black Powder Coat.
• Piston bore dimensions: 1.62, 1.12, 1.12 inches; stainless pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 13.06-inch outside diameter × 1.25-inch width; GT Slotted; Spec-37 Iron; Black Electro Coat surface finish.
• Rotor ventilation: 48 curved vanes.
• Rotor hats: Big Brake Hat - Flared Bell; Aluminum; Black E-Coat.
• Wheel bolt circles: 5 x 4.25; 5 x 4.50 inches.

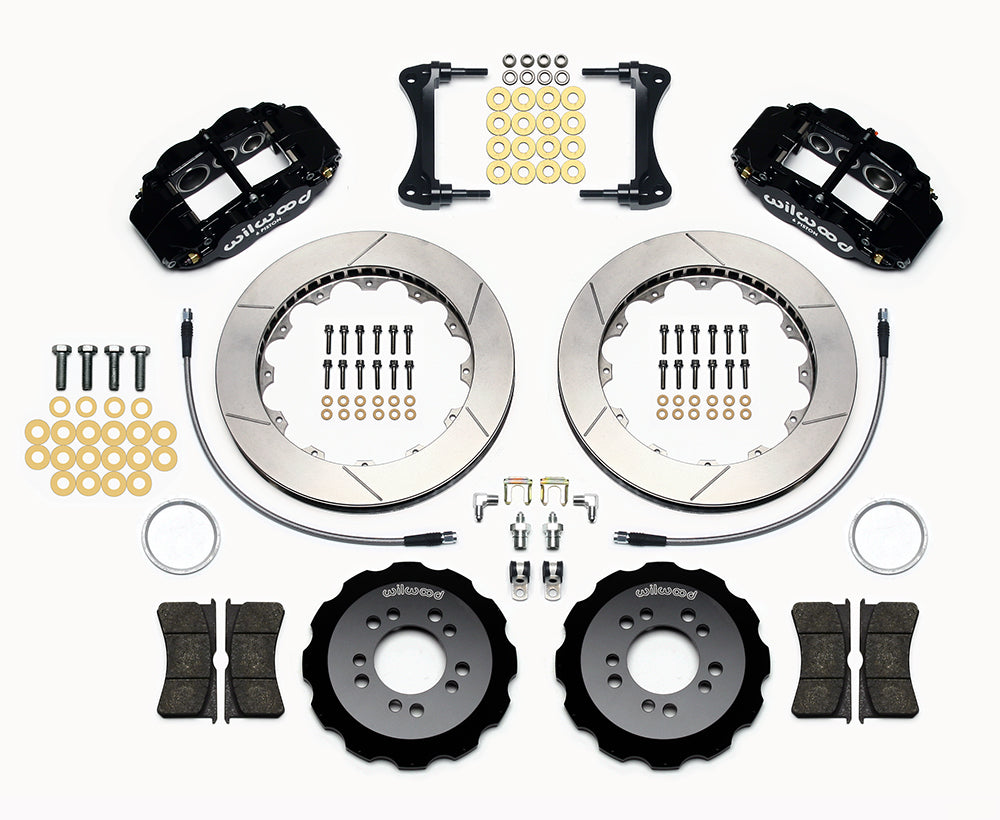

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 17 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Identify the exact engine and trim first: the table separates the 2.0T variants from the 3.8-litre models and gives different production ranges for each. Compare the factory hub register and caliper-mounting bosses with DS981, especially after suspension changes. Establish hat seating and bracket alignment before installing the calipers. The wheel template controls the necessary spoke offset and barrel space, even with a nominal 17-inch rim. Finish by checking hose freedom at steering lock and the hydraulic relationship to the retained rear package.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
