Wilwood Red DPHA Front Caliper and Pad Kit, Legend/Accord/Prelude/Integra/Civic/Fit/Insight (1986–2019), Original 262 mm Mounts

Red four-piston DPHA calipers distinguish this caliper-and-pad conversion for the listed Honda and Acura vehicles. The package supplies BP-10 pads and fastening hardware, retaining suitable original-size rotors rather than supplying new friction rings. It uses the original 262 mm brake spindle geometry specified by Wilwood, with detailed model-year, trim and body-style conditions defining the compatible applications. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13029-R
• Type: Forged DPHA Front Caliper Kit.
• Calipers: Forged DPHA; 4-piston; Red Powder Coat.
• Piston bore dimensions: 1.62, 1.62 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.

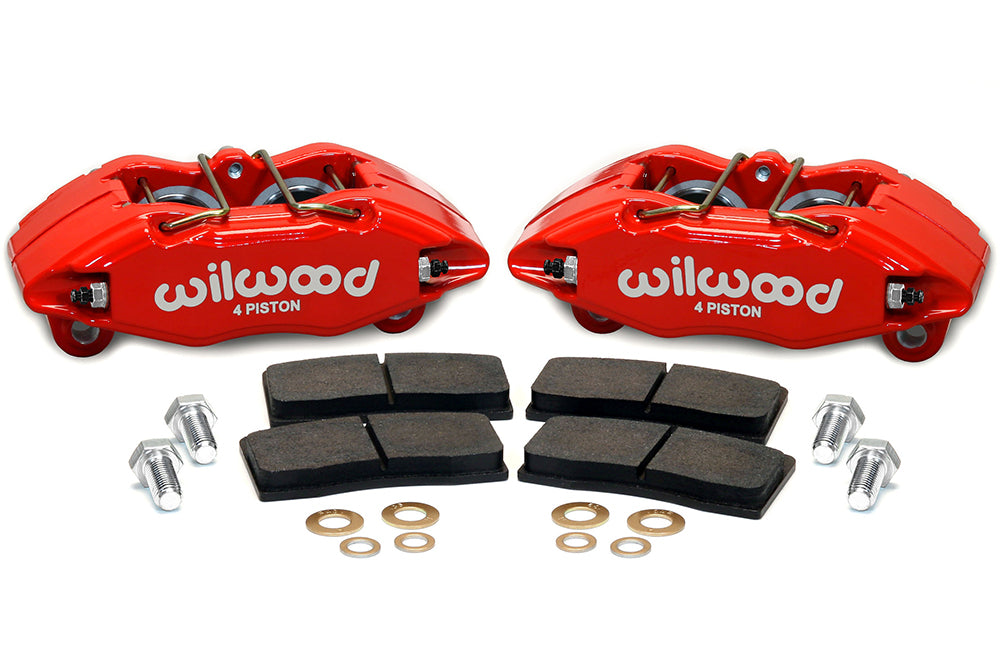

• Included: paired front calipers, BP-10 pads, bolts and washers. Rotors, hubs, spindles and hydraulic lines are not included; retain suitable matching components.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Match the exact application row and inspect the original mounting points before ordering. Vehicles built with 240 mm rotor spindles remain excluded even if those rotors have already been replaced by 262 mm items. Check retained rotor condition and follow the caliper installation instructions. Compare the actual rim's barrel and spokes with the full wheel template. Obtain suitable hydraulic lines separately, verify steering clearance and pad contact, and assess pedal travel and brake balance with the rear system.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.

Manufacturer warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
