Wilwood Competition Blue Front Caliper/Pad Conversion, Legend/Accord/Prelude/Integra/Civic/Fit/Insight (1986–2019), DPHA

Competition Blue DPHA calipers and BP-10 pads make up this Wilwood front conversion for the supported Honda/Acura configurations. The four-piston kit includes the caliper hardware while leaving rotors and hydraulic lines to the compatible vehicle-specific selection. Correct original 262 mm spindle mounting is essential; a smaller original brake spindle does not become suitable merely because a larger rotor has already been installed. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13029-CB
• Type: Forged DPHA Front Caliper Kit.
• Calipers: Forged DPHA; 4-piston; Competition Blue Powder Coat.
• Piston bore dimensions: 1.62, 1.62 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.

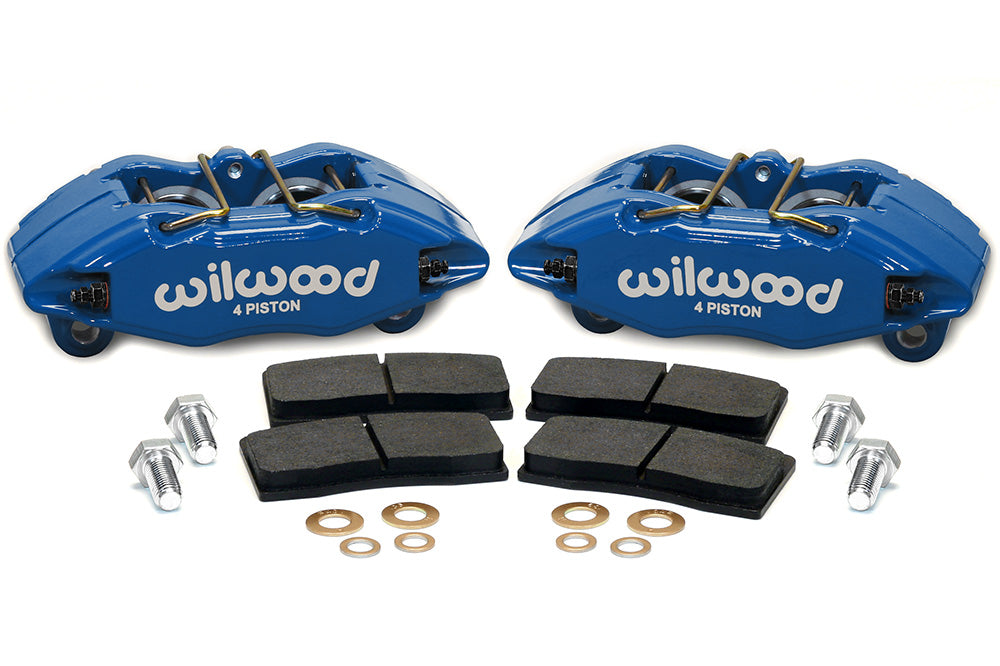

• Included: paired front calipers, BP-10 pads, bolts and washers. Rotors, hubs, spindles and hydraulic lines are not included; retain suitable matching components.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Confirm the individual model/year, trim and body/transmission restrictions, including the relevant Type-R exclusion. Inspect the original spindle and retained rotor rather than relying on the caliper color or model name. A factory 240 mm mounting arrangement is not supported after a rotor-only upgrade. Compare the wheel with the full clearance diagram and select suitable hydraulic hoses separately. Set caliper alignment and verify line movement, pad contact and the hydraulic balance with the rear brakes.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.

Manufacturer warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
