Wilwood Front DPHA Caliper and Pad Kit for Legend/Accord/Prelude/Integra/Civic/Fit/Insight (1986–2019), Black, Factory 262 mm Spindles

This black Wilwood DPHA package supplies paired four-piston front calipers, BP-10 pads and mounting fasteners for the listed Honda and Acura applications. Rotors are retained or selected separately, unlike the rotor-and-caliper package. The conversion requires the original 262 mm brake-spindle mounting geometry, with original rotor diameter serving as a way to identify the required spindle rather than a universal rotor-swap permission. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13029
• Type: Forged DPHA Front Caliper Kit.
• Calipers: Forged DPHA; 4-piston; Black Powder Coat.
• Piston bore dimensions: 1.62, 1.62 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.

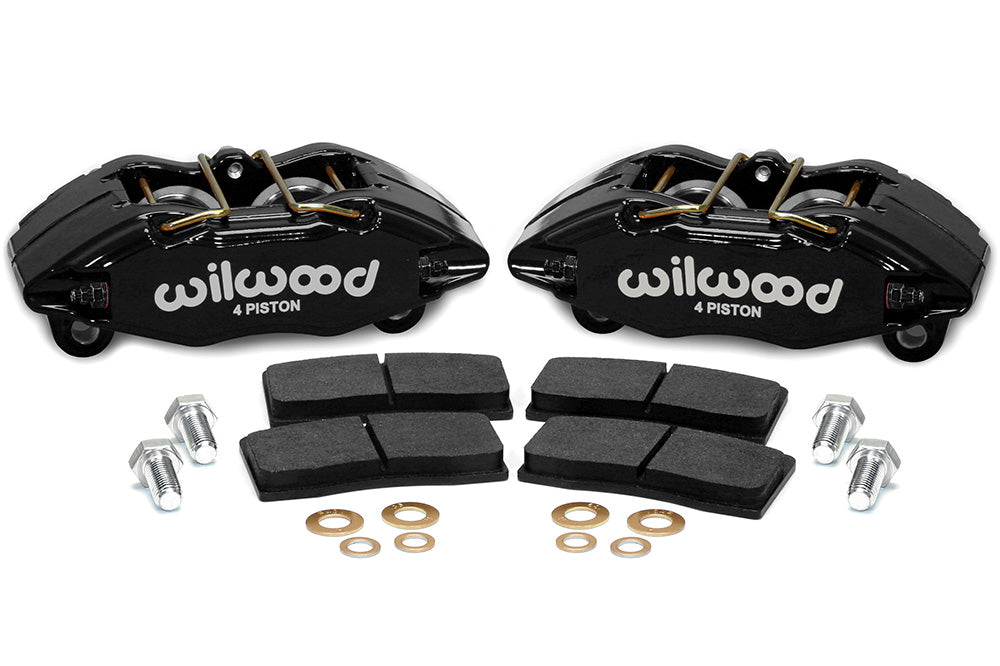

• Included: paired front calipers, BP-10 pads, bolts and washers. Rotors, hubs, spindles and hydraulic lines are not included; retain suitable matching components.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Check year, trim, body style and transmission in the relevant Legend, Accord, Prelude, Integra, Civic, Fit or Insight row. Factory 240 mm spindles remain excluded even if enlarged to 262 mm rotors. Inspect retained rotor condition and dimensions before installation. The complete wheel drawing governs clearance, with some 15-inch rims needing a suitable offset or spacer solution. Choose hoses separately, confirm caliper alignment and steering freedom, then review front/rear hydraulic balance.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
