Wilwood Front Dynalite Brake and Integral-Hub Kit for Buick Electra/Invicta/LeSabre/Riviera/Wildcat (1961–1965), Plain 11.88-Inch Rotors

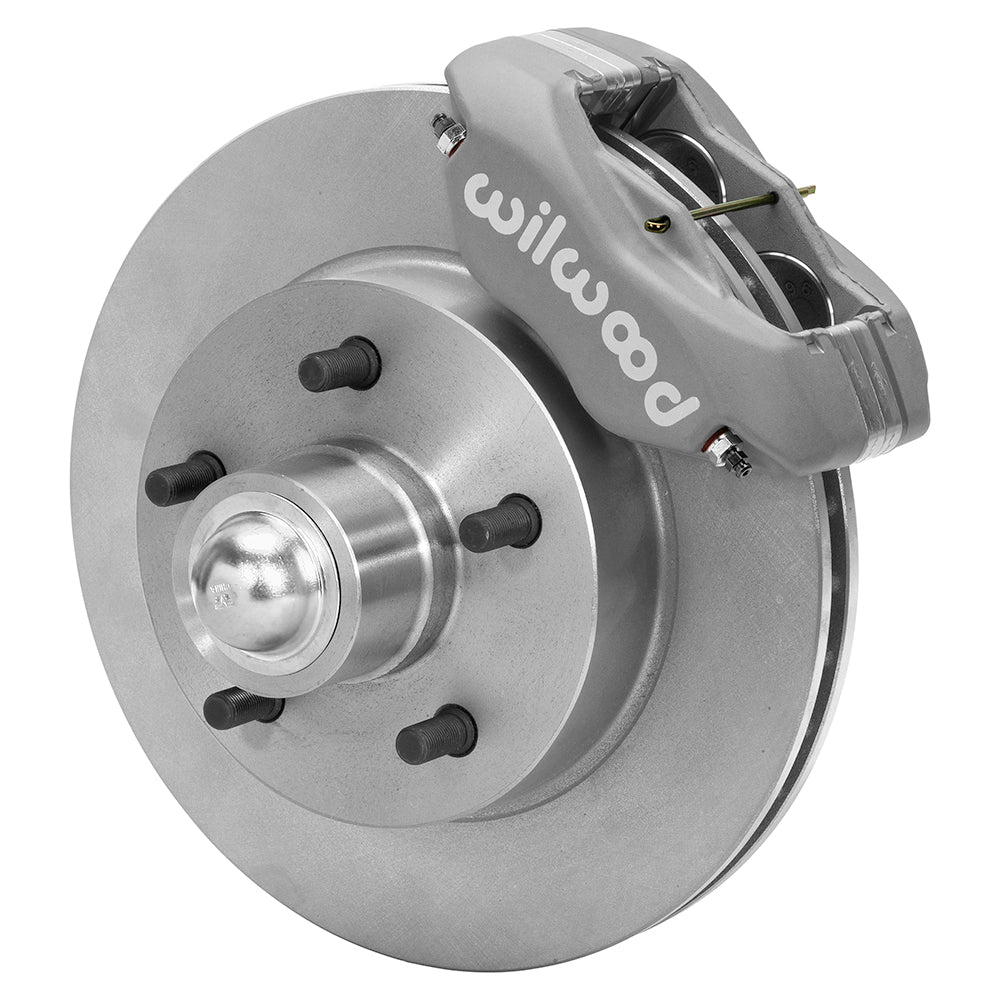

Wilwood's front Dynalite conversion combines Type III anodized four-piston calipers with plain integral rotor/hub assemblies for the listed Buick applications. The selected 11.88-inch rotors use a 1.29-inch width and work with BP-10 pads on the compatible factory drum spindle. The package includes the bearing and mounting hardware needed for that arrangement, with vehicle-year and original spindle identity established before assembly. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13028
• Type: Classic Series Dynalite Front Brake Kit.
• Calipers: Forged Dynalite; 4-piston; Type III Anodize.
• Piston bore dimensions: 1.75, 1.75 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 11.88-inch outside diameter × 1.29-inch width; Plain Face; Iron; Plain surface finish.
• Rotor construction: vented.
• Wheel bolt pattern: 5 x 5 in; 5 x 127 mm.

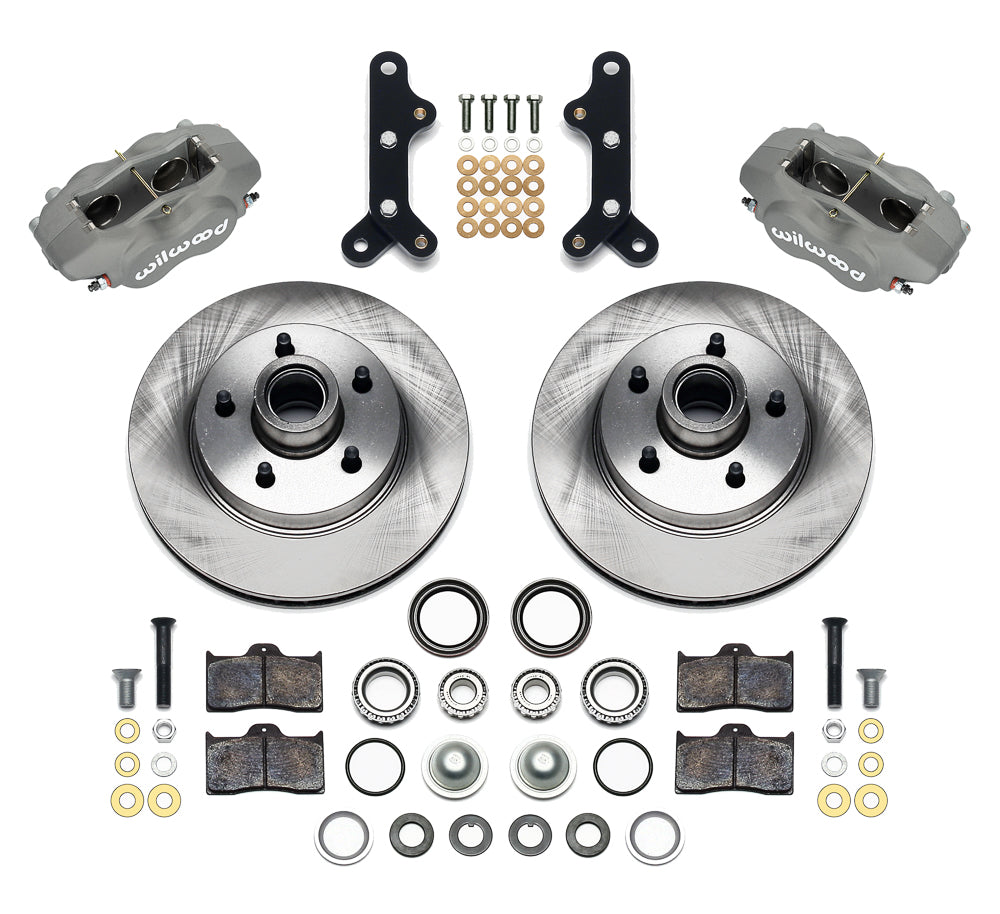

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets; integral rotor/hub assemblies and bearing hardware.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.
• Model-specific bearing assembly: omit the bearing spacer for 1965 Riviera only, as directed in DS979. Follow the specified arrangement for every other listed application.

Fitment & Compatibility

Match Electra, Invicta, LeSabre, Riviera or Wildcat to its specific year range; Special, Skylark and Sport Wagon are excluded by the installation document. Compare the original spindle and wheel pattern with the kit before setting bearing adjustment. The 15-inch wheel reference requires a complete template check. Hydraulic hoses are separate selections. Follow the rotor/hub and caliper-alignment instructions, and assess master-cylinder pushrod compatibility if changing hydraulic components as part of the overall conversion.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.

Manufacturer warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
