Wilwood Plain Rear Parking Brake Conversion, Red D154 Calipers, Chevelle/442/Beaumont/Camaro/Apollo (1964–1974), 12-Bolt Staggered Shocks

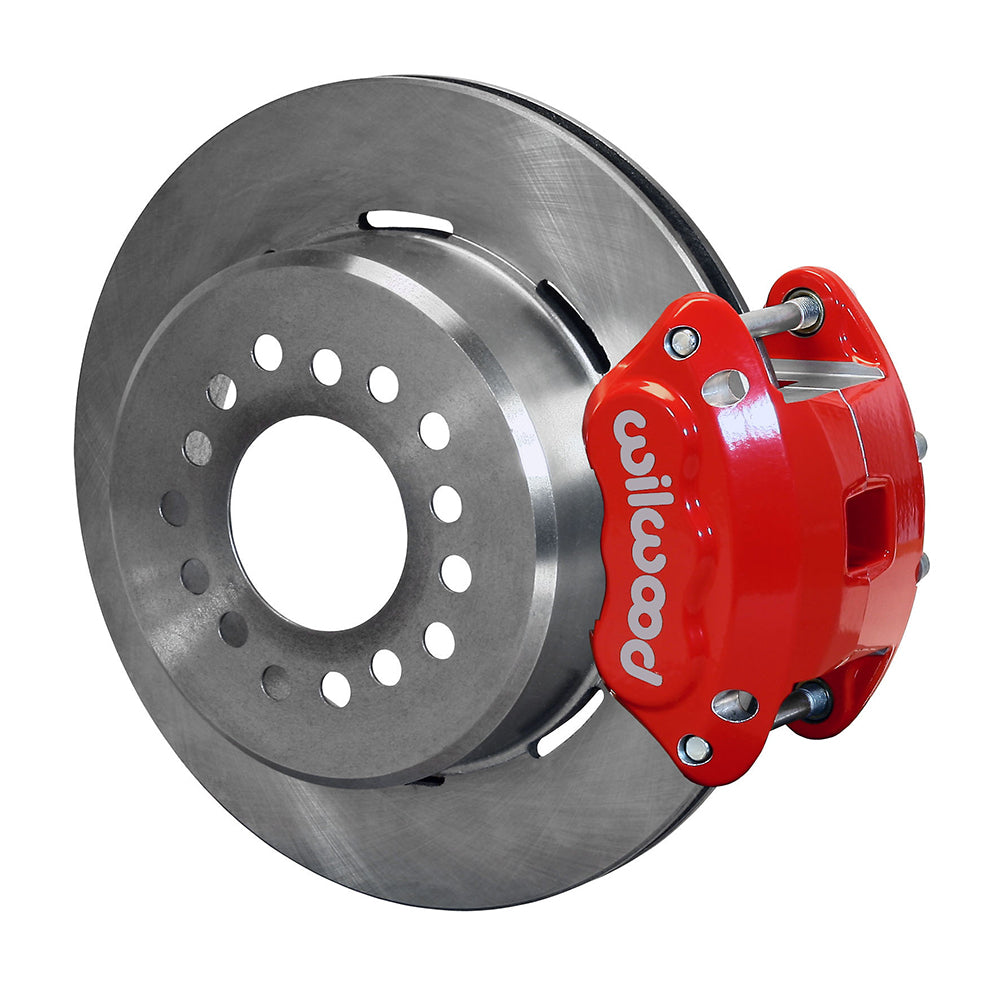

Plain-face 12.19-inch rotors pair with red D154 calipers in this Wilwood rear parking package. The kit includes internal parking-shoe assemblies and uses the specific 2.81-inch-offset 12-bolt special housing arrangement for staggered shocks. It is an axle-geometry conversion, with the actual flange and bracket positions needing verification rather than an unconditional direct-fit claim for the vehicle table. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13025-R
• Type: D154 Rear Parking Brake Kit.
• Calipers: D154; 2-piston; Red Powder Coat.
• Piston bore dimensions: 1.12, 1.12 inches; stainless pistons. Caliper mounting: floating.
• Included pad compound: BP-10.
• Rotors: 12.19-inch outside diameter × 0.81-inch width; Plain Face; Iron; Plain surface finish.
• Rotor ventilation: 32 vanes.
• Rear housing end: 12 Bolt Special; axle offset: 2.81 inches.
• Wheel bolt pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.

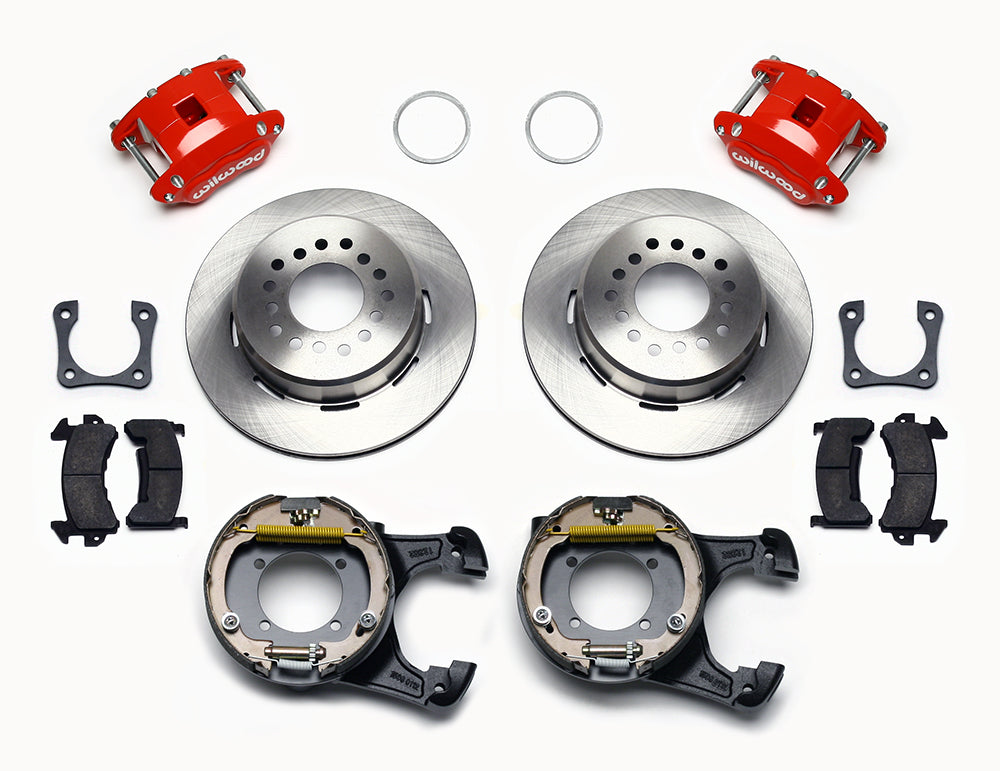

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, internal parking-shoe assemblies.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Parking-brake cable connections are separate and must suit the vehicle.
• Conditional wheel minimum: 16 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Check the flange dimensions, axle offset and staggered shock positions on the actual rear axle. Follow the instructions for right-caliper rearward and left-caliper forward mounting around that axle. Front-spindle notes cannot establish this rear configuration, so confirm those vehicle applications independently. Select hydraulic lines and parking cables to suit the installation, then set the internal shoe clearance. Use the complete wheel drawing and verify caliper centering, rotor release and front/rear hydraulic proportioning after assembly.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions, Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
