Wilwood Drilled Rear Parking Conversion, Chevelle/442/Beaumont/Camaro/Apollo (1964–1974), Black D154, 12-Bolt Staggered Shocks

Drilled/slotted 12.19-inch rotors pair with black two-piston D154 calipers and internal parking shoes in this Wilwood rear conversion. It is configured for the specified 12-bolt special housing and staggered shock mounts, using a 2.81-inch axle offset. The bracket clocking differs from side to side, so a general vehicle-year match or rear-axle description is insufficient to select the package. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13025-D
• Type: D154 Rear Parking Brake Kit.
• Calipers: D154; 2-piston; Black Powder Coat.
• Piston bore dimensions: 1.12, 1.12 inches; stainless pistons. Caliper mounting: floating.
• Included pad compound: BP-10.
• Rotors: 12.19-inch outside diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat surface finish.
• Rotor ventilation: 32 vanes.
• Rear housing end: 12 Bolt Special; axle offset: 2.81 inches.
• Wheel bolt pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.

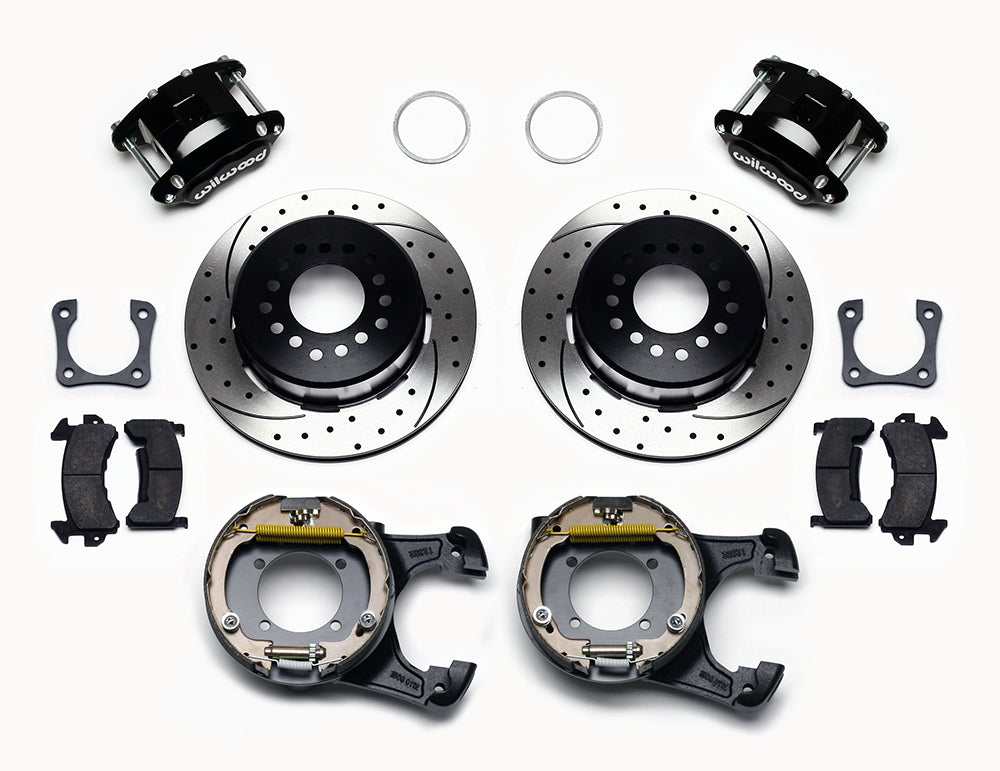

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, internal parking-shoe assemblies.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Parking-brake cable connections are separate and must suit the vehicle.
• Conditional wheel minimum: 16 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Establish flange dimensions and measured axle offset before comparing the staggered shock arrangement with the instructions. The right caliper mounts rearward of the axle while the left mounts forward; that describes rear-axle clocking, not a front brake application. The vehicle table's front-spindle references require separate rear-fitment confirmation. Select suitable lines and parking cables separately, set shoe clearance and caliper alignment, then check the full wheel diagram and complete hydraulic balance.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions, Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
