Wilwood Rear D154 Parking Brake Kit, Chevelle/442/Beaumont/Camaro/Apollo (1964–1974), Staggered-Shock 12-Bolt, Black Calipers and Plain Rotors

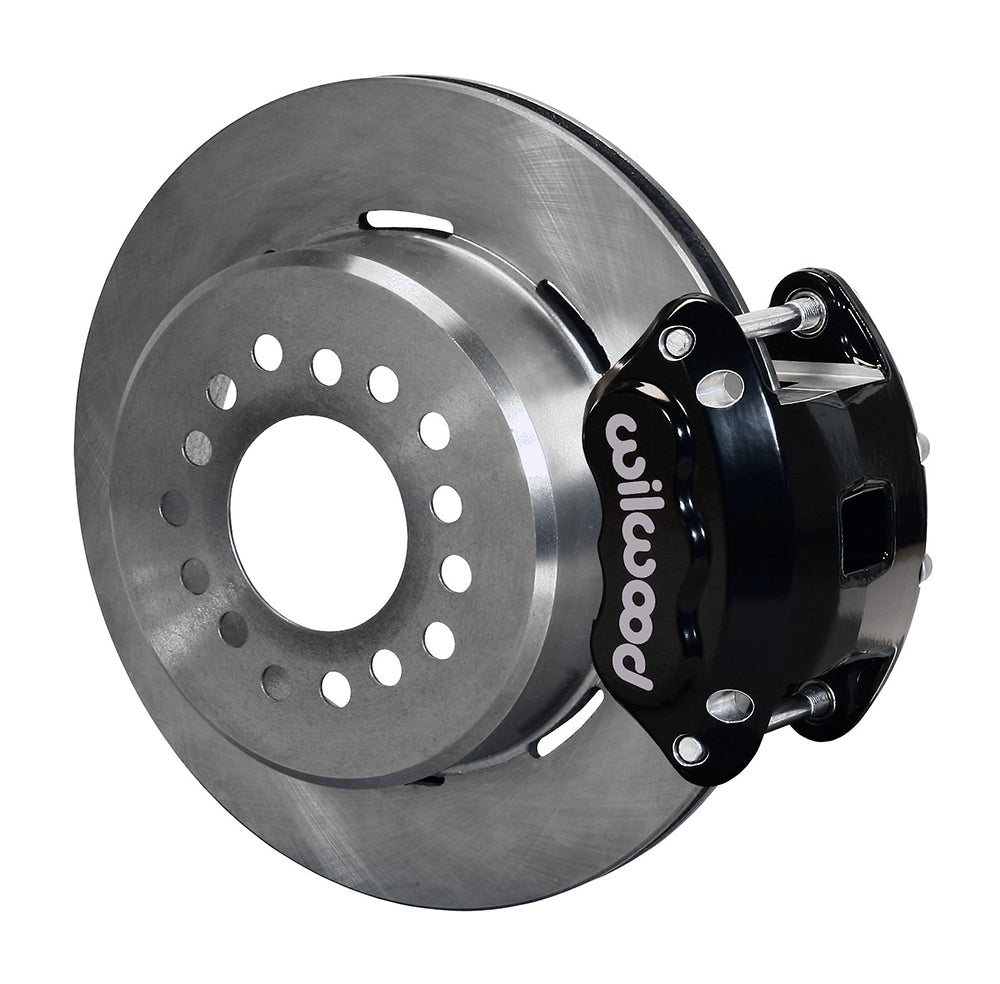

Black D154 calipers and plain 12.19-inch rotors form this Wilwood rear parking-brake package for the specified staggered-shock 12-bolt housing configuration. The two-piston hydraulic calipers work with internal parking-shoe assemblies and a measured 2.81-inch axle offset. Vehicle model names are conditional references; the actual flange and shock arrangement determine the rear installation and must be checked before ordering. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13025
• Type: D154 Rear Parking Brake Kit.
• Calipers: D154; 2-piston; Black Powder Coat.
• Piston bore dimensions: 1.12, 1.12 inches; stainless pistons. Caliper mounting: floating.
• Included pad compound: BP-10.
• Rotors: 12.19-inch outside diameter × 0.81-inch width; Plain Face; Iron; Plain surface finish.
• Rotor ventilation: 32 vanes.
• Rear housing end: 12 Bolt Special; axle offset: 2.81 inches.
• Wheel bolt pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.

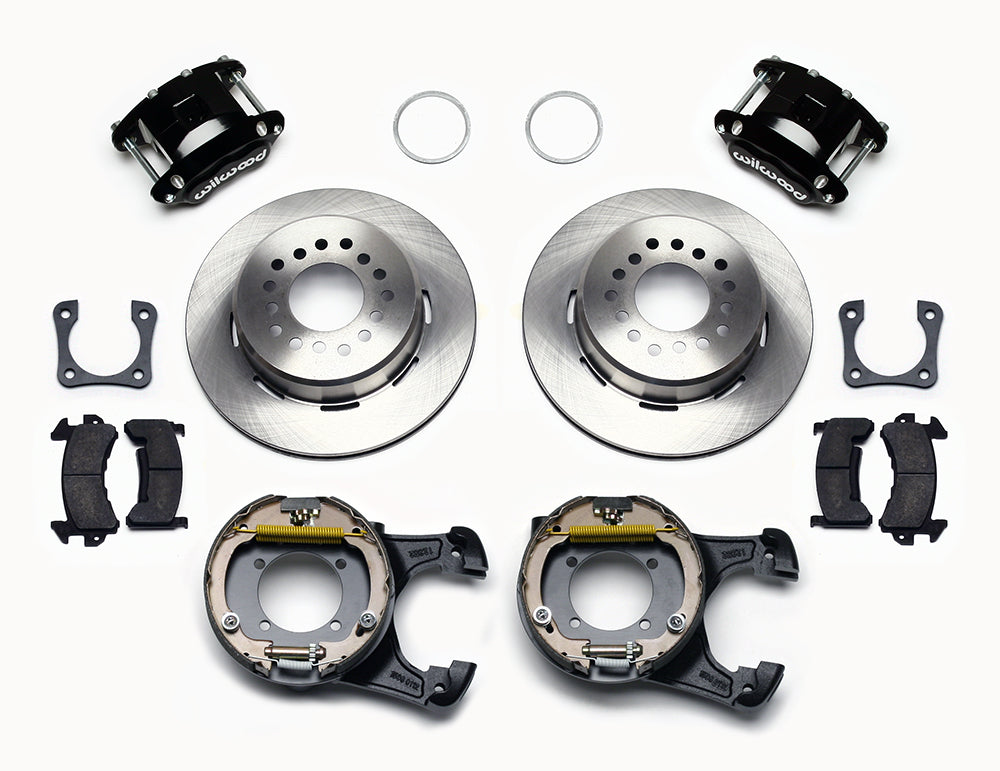

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, internal parking-shoe assemblies.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Parking-brake cable connections are separate and must suit the vehicle.
• Conditional wheel minimum: 16 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Match the 12-bolt special housing-end dimensions and axle offset with the manufacturer's drawing. This package places the right-hand caliper behind the axle and the left-hand caliper ahead of it to suit staggered shocks; both are rear brakes. Front Ridetech spindle notes in the application table cannot establish rear-axle compatibility. Choose hydraulic lines and parking cables separately, compare the wheel with the full clearance template and verify balance with the front brakes.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions, Technical bulletin.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
