Wilwood Front Drilled 14-Inch Rotor/Red Six-Piston Caliper Assembly, Ford Focus ST (2013–2018), BP-10 Pads

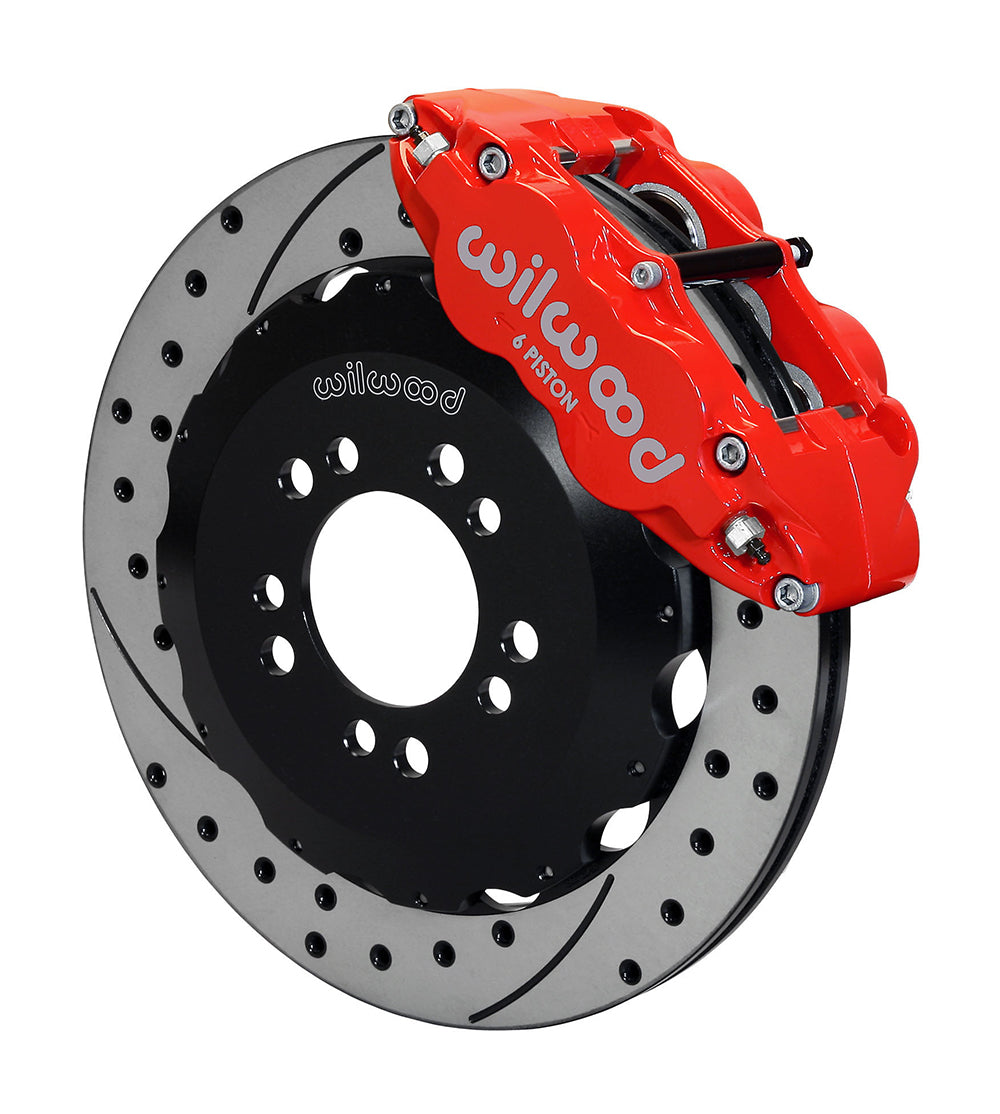

Red Superlite 6R calipers and drilled/slotted 14-inch friction rings define this Wilwood Focus ST front package. The six-piston assembly uses aluminum hats and radial brackets on the compatible original hubs and spindles. Included BP-10 pads and application-specific lines complete this selected configuration, with wheel clearance and hydraulic compatibility requiring confirmation for the actual vehicle. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13019-DR
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat).
• Calipers: Forged Narrow Superlite 6R; 6-piston; Red Powder Coat.
• Piston bore dimensions: 1.62, 1.12, 1.12 inches; stainless pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 14.00-inch outside diameter × 1.10-inch width; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface finish.
• Rotor ventilation: 72 curved vanes.
• Rotor hats: Big Brake Hat - Flared Bell; Aluminum; Black E-Coat.
• Wheel bolt circles: 5 x 4.25; 5 x 4.50 inches.

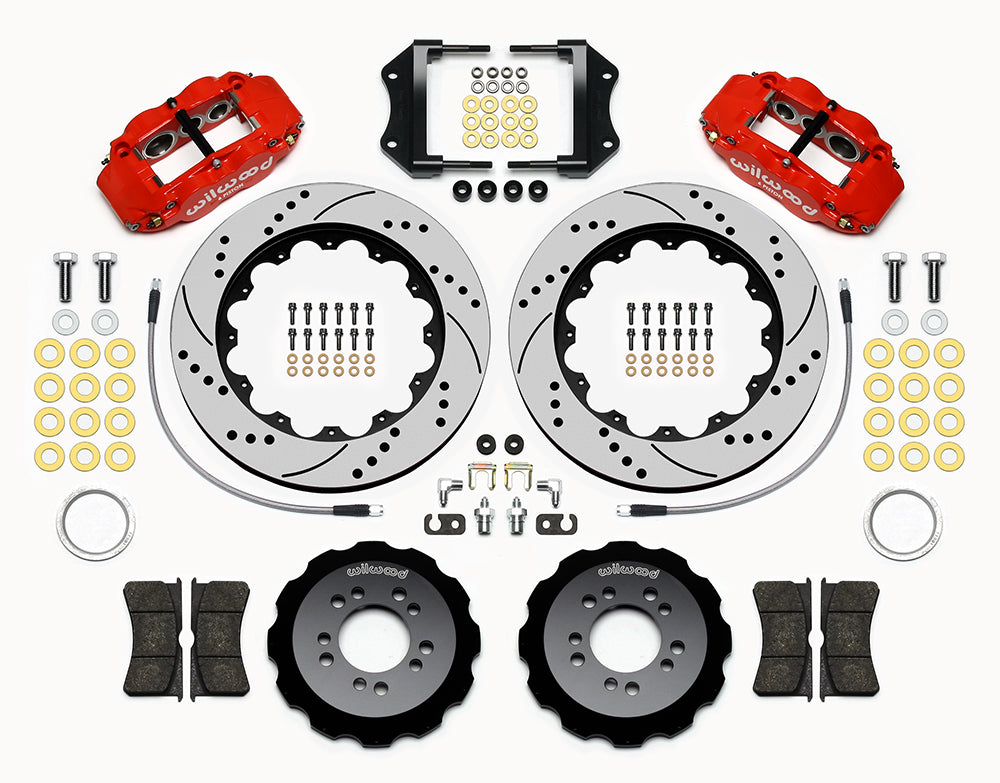

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 18 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Identify ST equipment within the listed year range and inspect any previously changed hub or upright. Follow the installation procedure for rotor registration, bracket alignment and caliper centering. Check the wheel's spokes and barrel against the full 18-inch minimum template before final assembly. Secure the hoses clear of moving components and confirm their freedom at full lock. Review the front package alongside the existing rear brakes, then verify pedal travel and system balance.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
