Wilwood Drilled Front Brake Conversion, Ford Focus ST (2013–2018), Black Six-Piston Calipers, 12.88-Inch Rotors

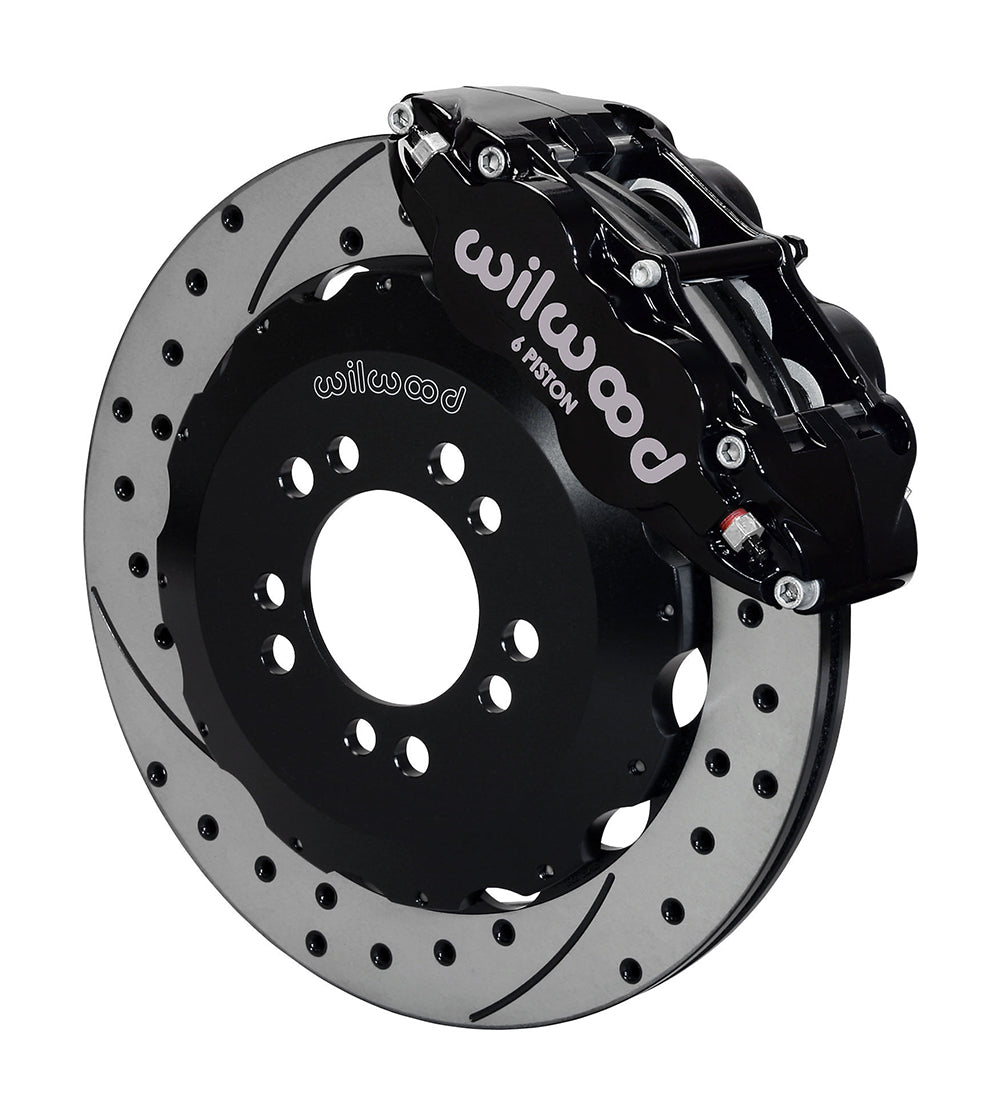

This Wilwood Focus ST front package pairs black six-piston calipers with drilled/slotted 12.88-inch rotor rings on separate hats. The selected brake assembly includes BP-10 pads, radial mounting components and the specified front flex lines. It is intended for the compatible original ST hub and upright arrangement; a Focus model name or a previously enlarged rotor does not alone establish the correct installation. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13018-D
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat).
• Calipers: Forged Narrow Superlite 6R; 6-piston; Black Powder Coat.
• Piston bore dimensions: 1.62, 1.12, 1.12 inches; stainless pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 12.88-inch outside diameter × 1.10-inch width; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface finish.
• Rotor ventilation: 48 curved vanes.
• Rotor hats: Big Brake Hat - Flared Bell; Aluminum; Black E-Coat.
• Wheel bolt circles: 5 x 4.25; 5 x 4.50 inches.

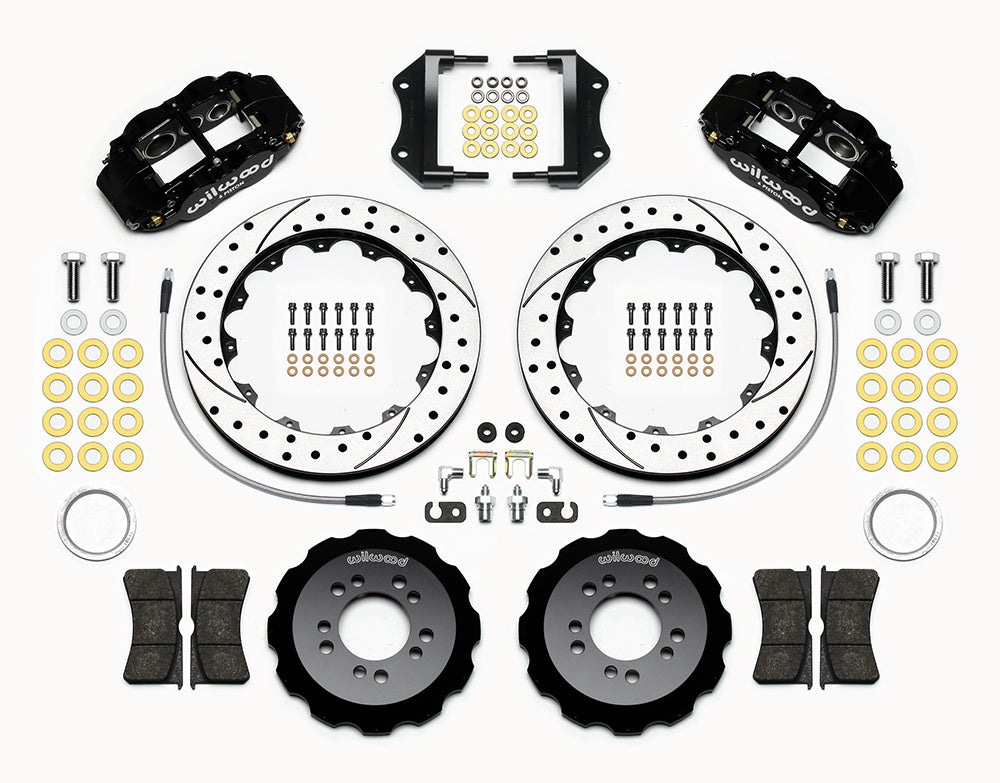

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 17 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Read the 2013–2018 ST application and inspect any replacement spindle or hub against the installation geometry. Seat the hats correctly and follow the bracket procedure for rotor/caliper alignment. Compare the actual wheel interior with the full template, since nominal diameter does not establish spoke clearance. Secure the supplied hoses clear of the tire and moving suspension. After confirming free rotor movement, assess pedal travel and front/rear hydraulic balance with the vehicle's installed rear brakes.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.

Manufacturer warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
