Wilwood Rear Black Four-Piston Dust-Seal Caliper Kit with Drilled 12.88-Inch Rotors, Subaru Impreza WRX (2006–2007)

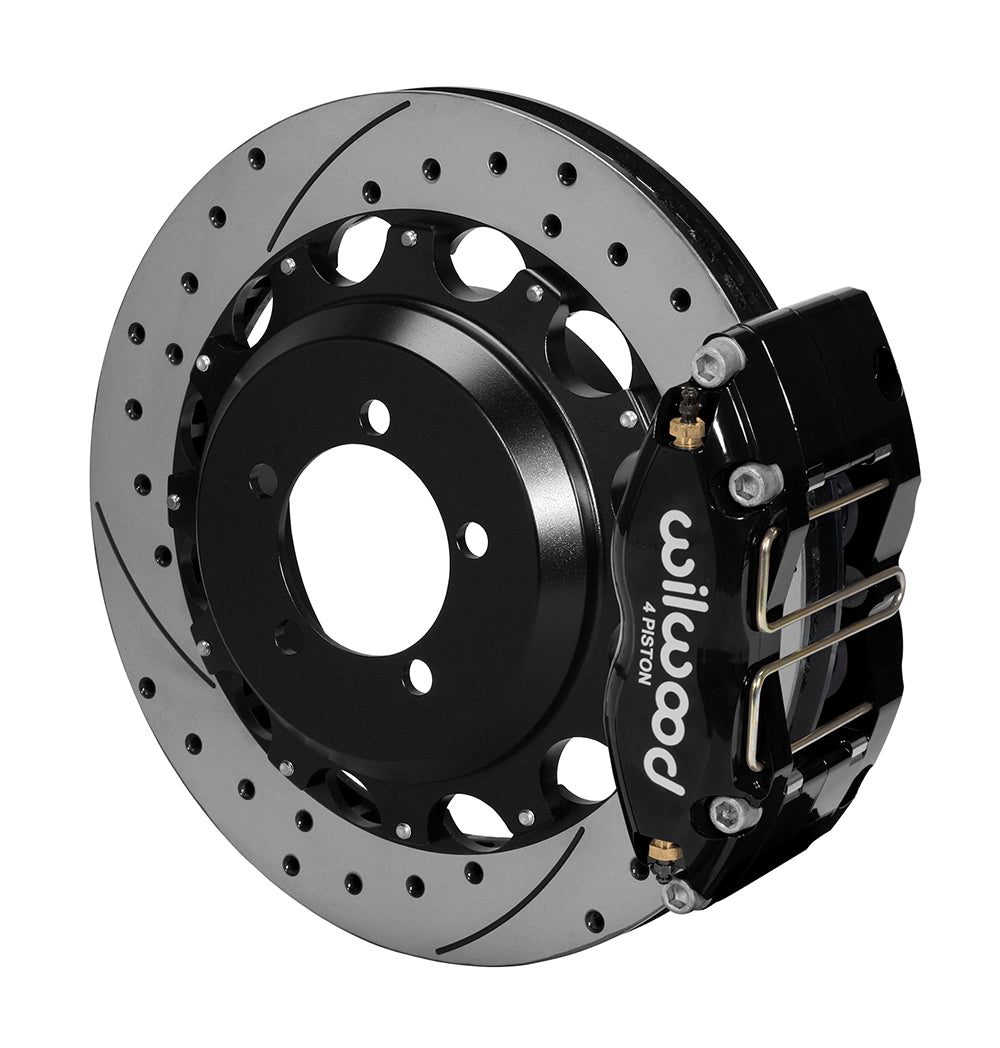

Black four-piston Dynapro calipers pair with drilled/slotted rear rotor rings in this Wilwood package for the supported 2006–2007 Subaru Impreza WRX applications. The 12.88-inch two-piece assembly uses 1.10-inch-wide rotors and compatible original parking hardware. BP-10 pads and application-specific rear flex lines are included with the mounting components for this selected conversion. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-13013-D
• Type: Dynapro Radial Rear Brake Kit For OE Parking Brake.
• Calipers: Dynapro Dust Seal Radial Mount; 4-piston; Black Powder Coat.
• Piston bore dimensions: 1.00, 1.00 inches; stainless pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 12.88-inch outside diameter × 1.10-inch width; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface finish.
• Rotor ventilation: 48 curved vanes.
• Rotor hats: Parking Brake Hat - Standard; Iron; Black E-Coat.
• Wheel bolt circles: 5 x 3.93 inches.

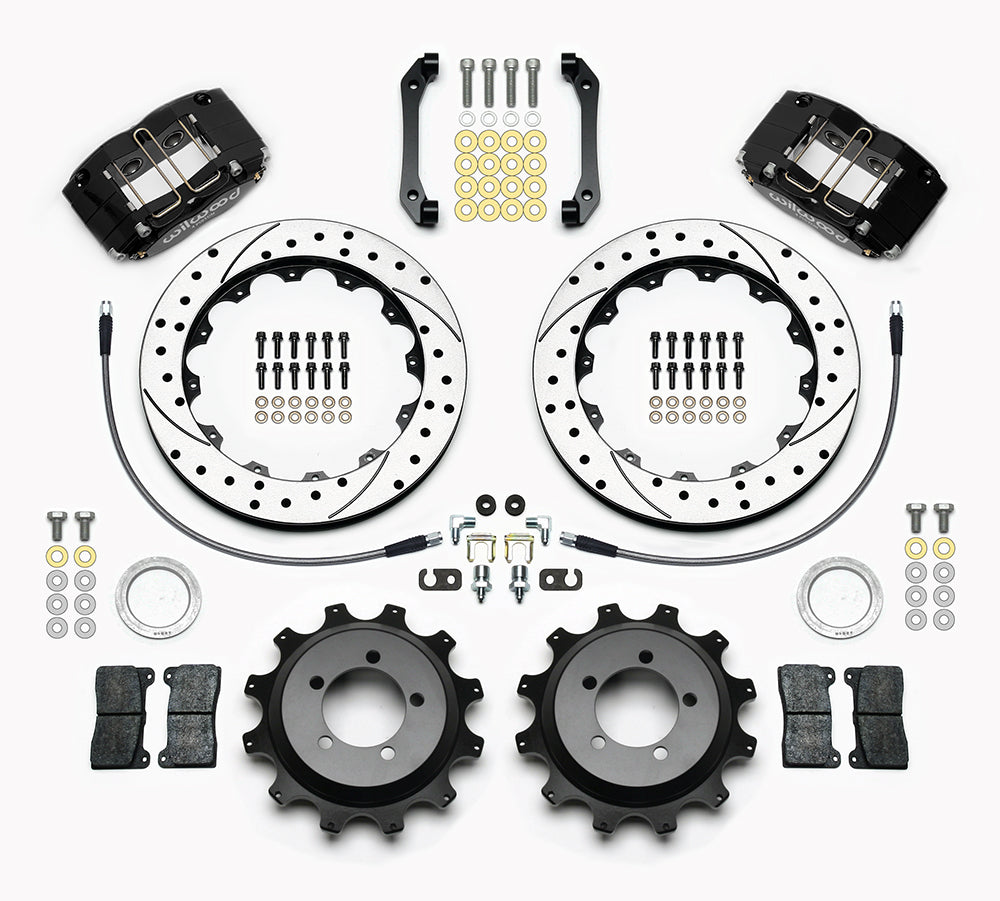

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 17 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Check the exact WRX trim before comparing the original rear hub and upright with the instructions. Verify parking-shoe condition and cable movement rather than assuming those retained parts are renewed by the kit. Set rotor and caliper position as directed, then adjust the parking brake for full release. Use the complete wheel diagram to check barrel and spoke clearance. Route the hoses through suspension movement and assess hydraulic proportioning with the front brake package.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
