Wilwood Plain Front Rotor/Caliper Kit, Red DPHA, Integra/Civic/Fit (1990–2013), Factory 262 mm Spindles

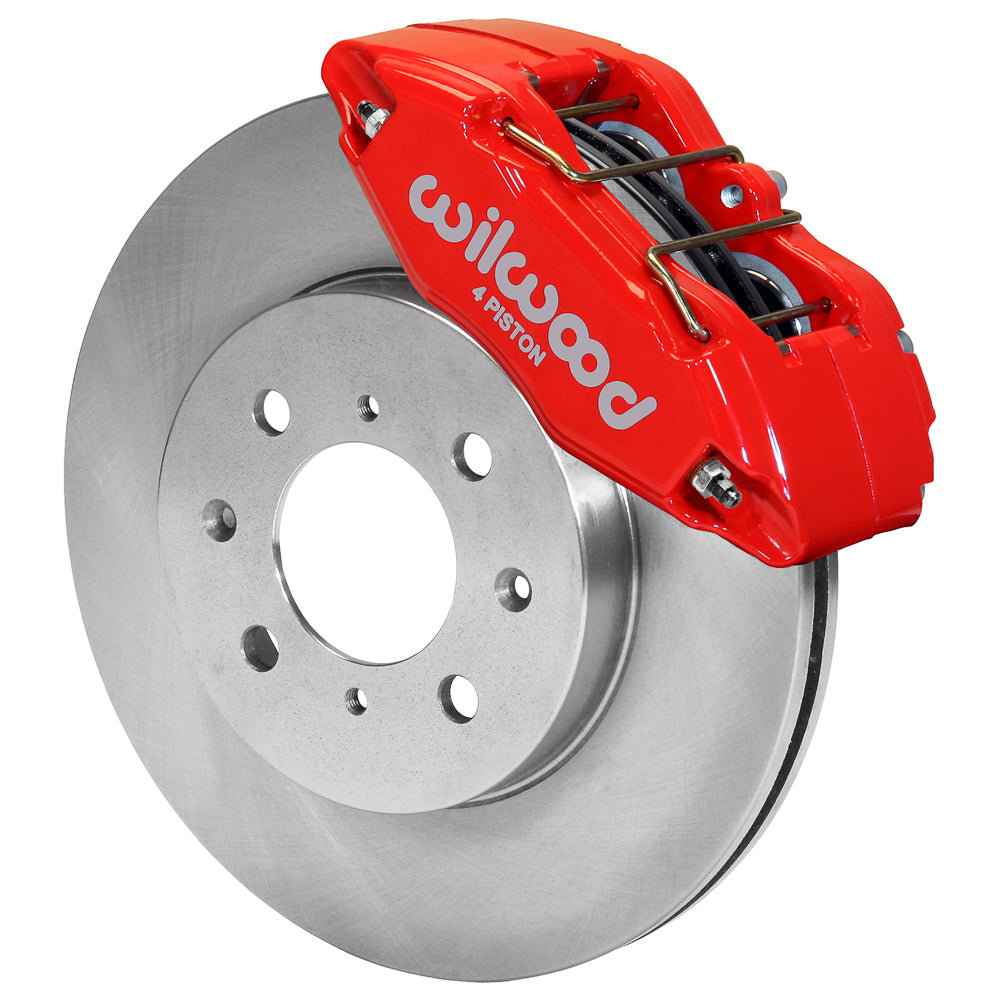

Plain-face 262 mm rotors and red four-piston DPHA calipers form this Wilwood front assembly for the specified Acura Integra and Honda Civic/Fit applications. The kit retains the correct original spindle, using BP-10 pads and included mounting fasteners. Its original-rotor requirement is a spindle-identification rule, rather than permission to combine these calipers with any vehicle carrying a 262 mm replacement rotor. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12996-R
• Type: Forged DPHA Front Caliper and Rotor Kit.
• Calipers: Forged DPHA; 4-piston; Red Powder Coat.
• Piston bore dimensions: 1.62, 1.62 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 10.32-inch outside diameter × 0.83-inch width; Plain Face; Iron; Plain surface finish.
• Rotor construction: vented.
• Wheel-mounting change from OE: 0.00 inch per side.
• Wheel bolt pattern: 4 x 3.93 in; 4 x 99.82 mm.

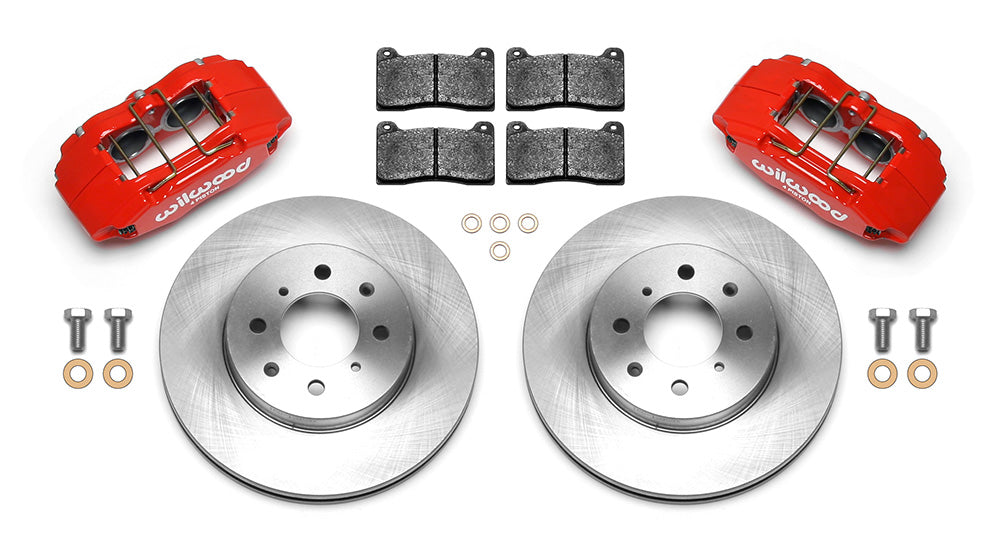

• Included: paired calipers, pads, rotors and mounting hardware.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Read the detailed vehicle row for year, body/transmission configuration and the Integra Type-R exclusion. A factory 240 mm brake spindle remains incompatible even if already converted to larger rotors. Check caliper position and the full wheel template before choosing a rim or spacer arrangement. Suitable hydraulic lines are separate and must clear steering and suspension movement. Confirm rotor freedom and pedal travel, then assess the completed front package with the rear brakes.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.
