Wilwood Red DPHA Front Brake Conversion for Integra/Civic/Fit (1990–2013), Drilled 262 mm Rotors

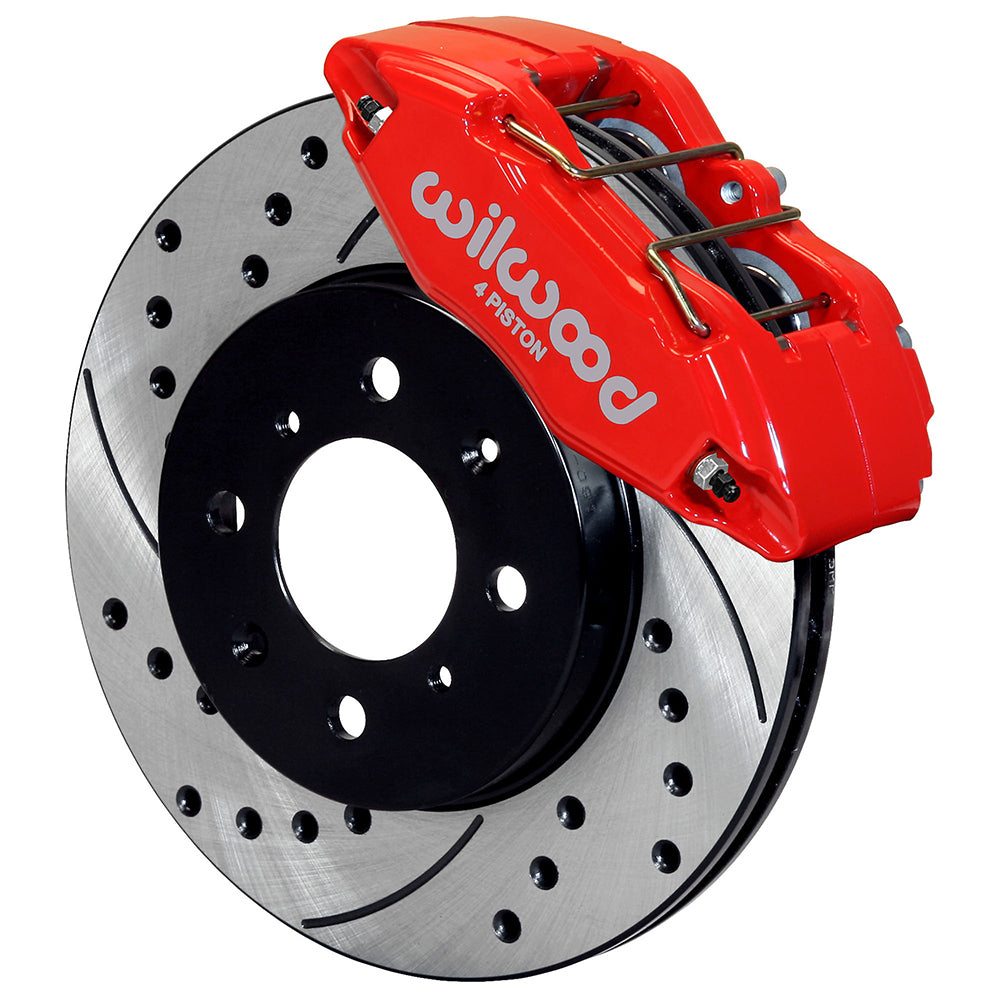

Red DPHA calipers pair with drilled/slotted 10.32-inch rotors in this Wilwood Honda/Acura front conversion. The four-piston package includes BP-10 pads and the caliper fastening hardware for the compatible factory 262 mm spindle arrangement. It is a rotor-and-caliper package for the individually listed applications, requiring direct verification of original brake equipment before ordering. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12996-DR
• Type: Forged DPHA Front Caliper and Rotor Kit.
• Calipers: Forged DPHA; 4-piston; Red Powder Coat.
• Piston bore dimensions: 1.62, 1.62 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 10.32-inch outside diameter × 0.83-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat surface finish.
• Rotor construction: vented.
• Wheel-mounting change from OE: 0.00 inch per side.
• Wheel bolt pattern: 4 x 3.93 in; 4 x 99.82 mm.

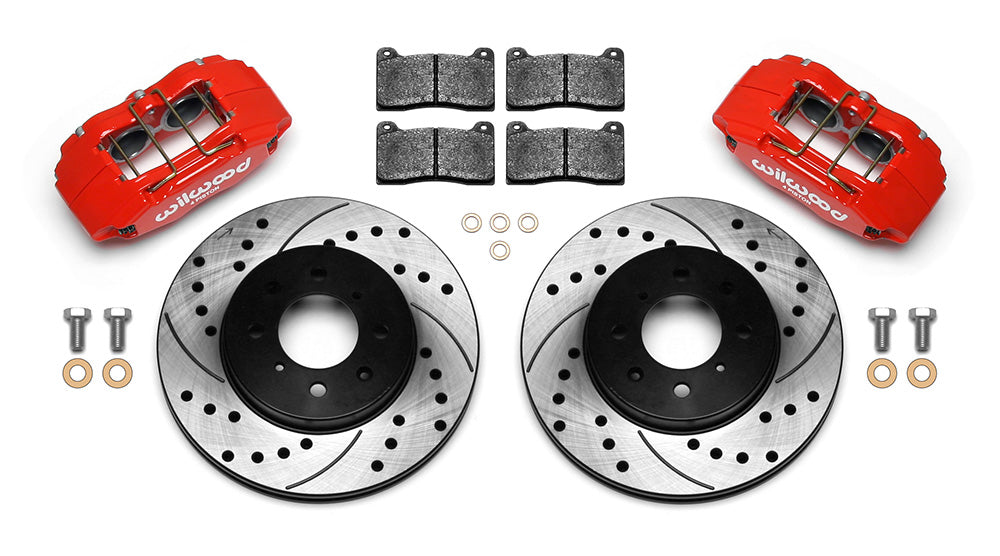

• Included: paired calipers, pads, rotors and mounting hardware.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Confirm trim, body style, transmission and year in the application table; Integra Type-R coverage is excluded where noted. Original 240 mm spindles cannot be made compatible merely by installing 262 mm rotors. Follow the installation drawing to verify caliper location and wheel clearance, including spoke offset. Choose the flexible lines separately for the actual vehicle connections and travel. Check free rotor movement, pad alignment and front/rear hydraulic proportioning after assembly.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
