Wilwood Blue Four-Piston Front Brake Package, Integra/Civic/Fit (1990–2013), Drilled/Slotted 262 mm Rotors

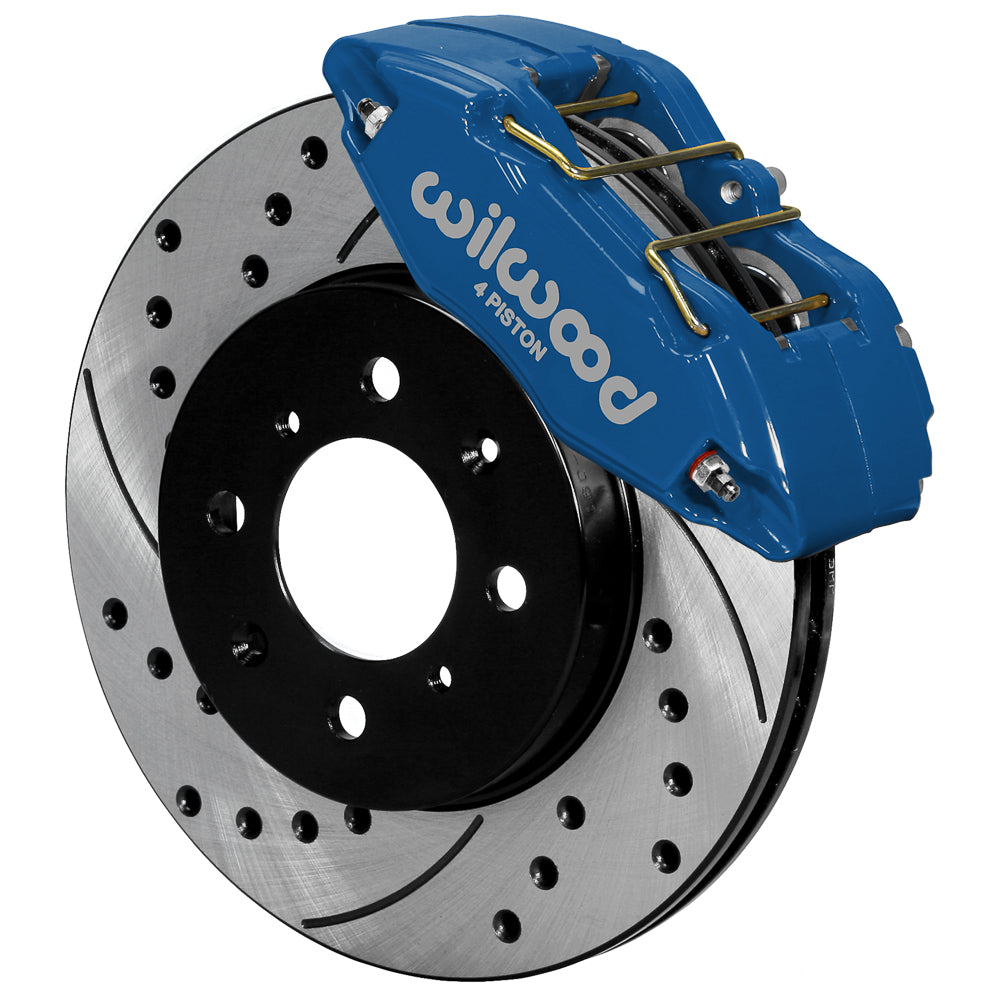

Competition Blue calipers and drilled/slotted rotor faces identify this Wilwood DPHA front package for the supported Integra, Civic and Fit configurations. The four-piston calipers work with 262 mm rotor assemblies and the specified factory spindle mounting points. BP-10 pads and mounting hardware are supplied, while the flexible hydraulic lines and vehicle wheel clearance must be established separately. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12996-DCB
• Type: Forged DPHA Front Caliper and Rotor Kit.
• Calipers: Forged DPHA; 4-piston; Competition Blue Powder Coat.
• Piston bore dimensions: 1.62, 1.62 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 10.32-inch outside diameter × 0.83-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat surface finish.
• Rotor construction: vented.
• Wheel-mounting change from OE: 0.00 inch per side.
• Wheel bolt pattern: 4 x 3.93 in; 4 x 99.82 mm.

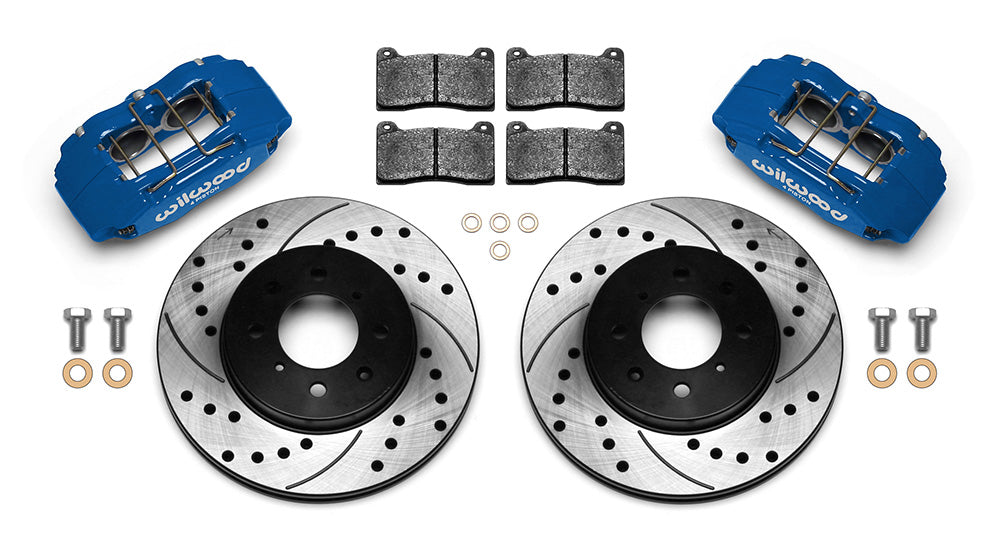

• Included: paired calipers, pads, rotors and mounting hardware.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Compare the exact year, body style and transmission row with the car, noting the Integra Type-R exclusion. Verify original 262 mm spindles; a vehicle built with 240 mm brake mounts remains unsuitable after a rotor swap. Check the full wheel drawing because spoke offset can prevent clearance even with a 15-inch rim. Select the proper hydraulic fittings and hose route, then verify caliper alignment, steering movement and the completed system's brake balance.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
