Wilwood Front Black DPHA Caliper/Drilled-Rotor Conversion, Integra/Civic/Fit (1990–2013), Requires Factory 262 mm Spindles

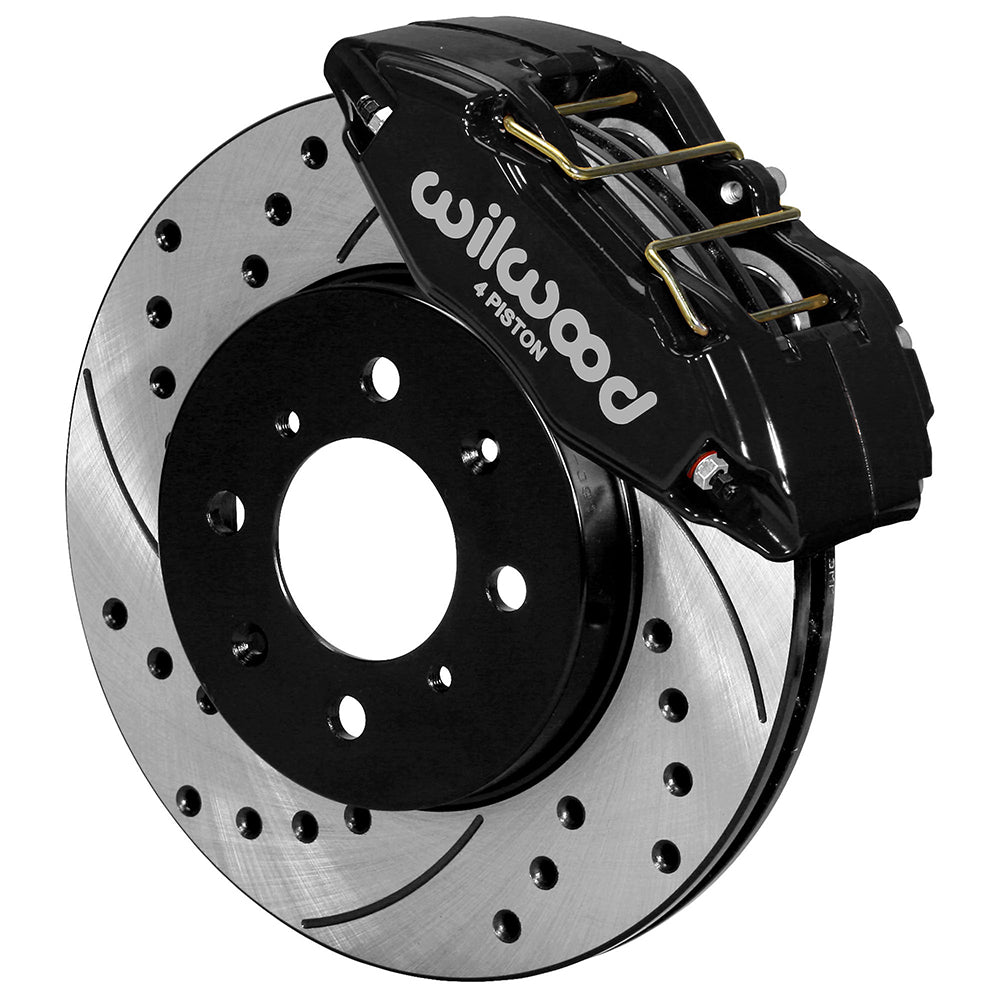

This Wilwood front conversion combines black four-piston DPHA calipers with drilled/slotted 262 mm rotors on the listed Acura and Honda applications. The selected calipers use the appropriate original mounting arrangement and BP-10 pads. Correct factory spindle identification remains decisive across the varied Integra, Civic and Fit rows, including production, body-style and transmission conditions that cannot be inferred from the model name alone. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12996-D
• Type: Forged DPHA Front Caliper and Rotor Kit.
• Calipers: Forged DPHA; 4-piston; Black Powder Coat.
• Piston bore dimensions: 1.62, 1.62 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 10.32-inch outside diameter × 0.83-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat surface finish.
• Rotor construction: vented.
• Wheel-mounting change from OE: 0.00 inch per side.
• Wheel bolt pattern: 4 x 3.93 in; 4 x 99.82 mm.

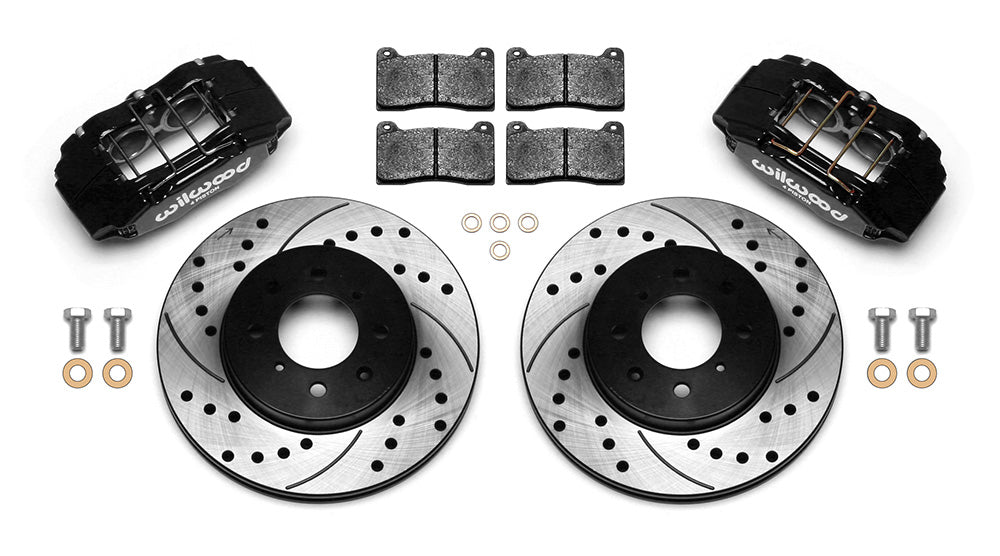

• Included: paired calipers, pads, rotors and mounting hardware.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Confirm the original 262 mm rotor/spindle configuration and do not use a 240 mm spindle after a rotor-only enlargement. Read the Integra Type-R and Civic body/transmission restrictions for the exact year. Compare the wheel's inner profile with the clearance diagram and account for any required offset or spacer solution. Hoses are chosen separately. Follow the mounting instructions, verify pad contact and free rotation, and check hydraulic balance with the retained rear brakes.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.
