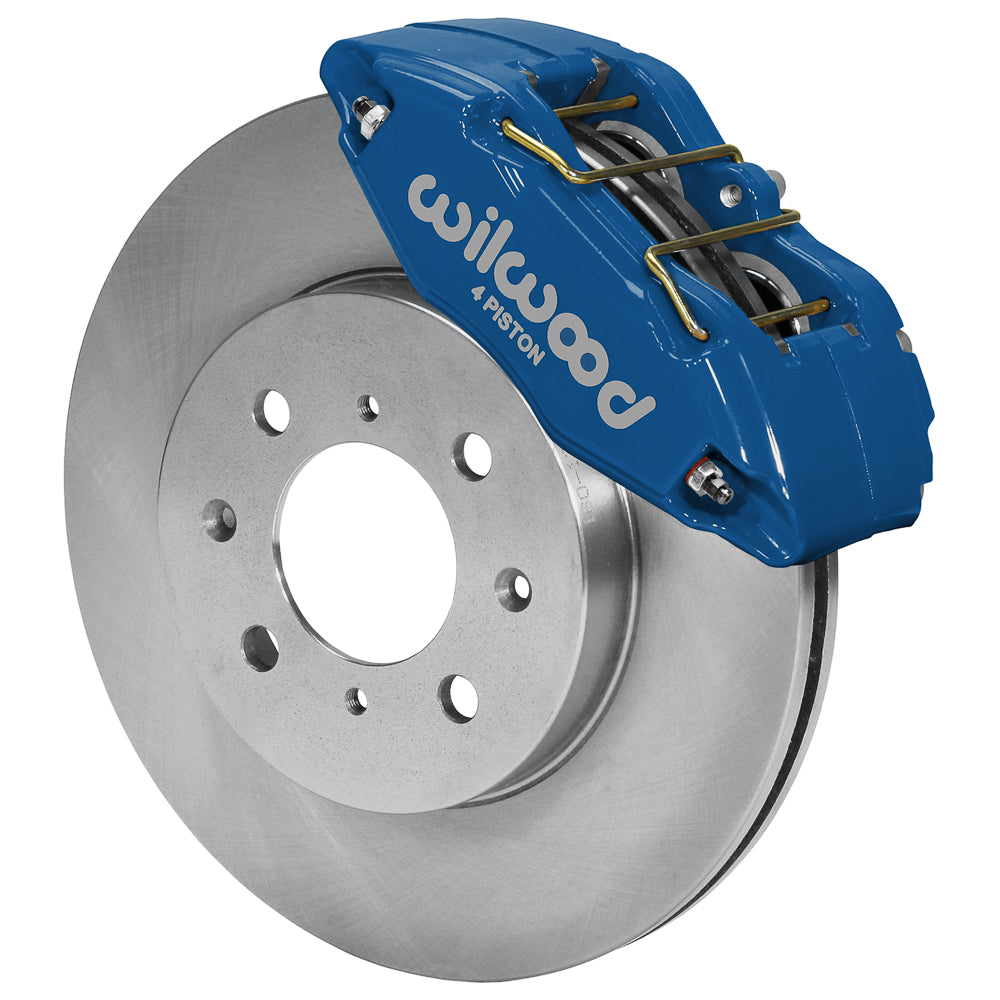

Wilwood Competition Blue Front Brake Conversion, Integra/Civic/Fit (1990–2013), DPHA Calipers and Plain 262 mm Rotors

Competition Blue DPHA calipers distinguish this plain-rotor Wilwood front kit for the supported Honda and Acura fitments. Its four-piston calipers use BP-10 pads with 10.32-inch rotor assemblies and the specified original spindle mounting points. This selected package includes the rotors, rather than only calipers and pads, but still requires the correct factory 262 mm brake-spindle geometry. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12996-CB
• Type: Forged DPHA Front Caliper and Rotor Kit.
• Calipers: Forged DPHA; 4-piston; Competition Blue Powder Coat.
• Piston bore dimensions: 1.62, 1.62 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 10.32-inch outside diameter × 0.83-inch width; Plain Face; Iron; Plain surface finish.
• Rotor construction: vented.
• Wheel-mounting change from OE: 0.00 inch per side.
• Wheel bolt pattern: 4 x 3.93 in; 4 x 99.82 mm.

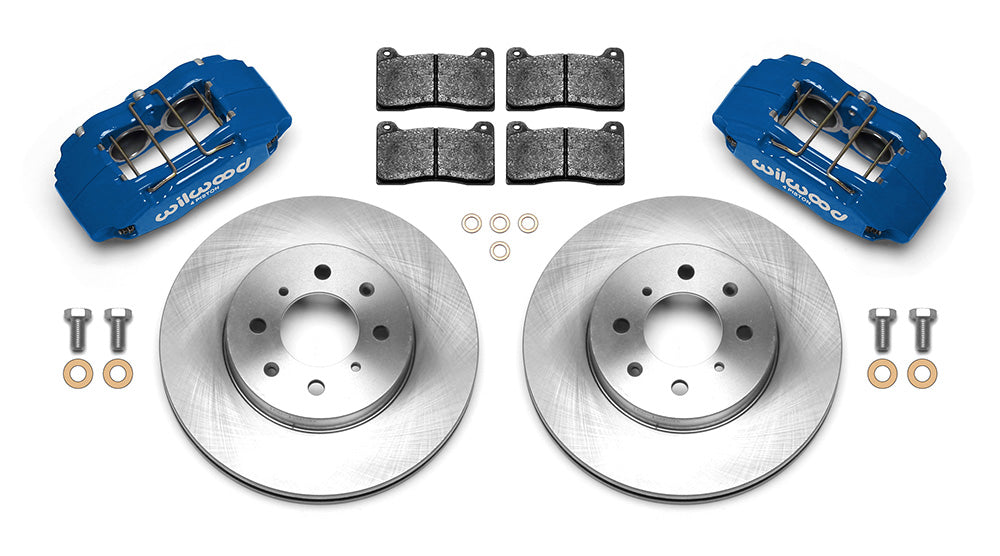

• Included: paired calipers, pads, rotors and mounting hardware.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Identify the original rotor size and spindle before checking the table's body-style, transmission and trim conditions. A 240 mm spindle is unsuitable even if its rotor has already been enlarged. Observe the separate Integra Type-R restriction. Use the full template to compare the actual wheel barrel and spokes; 15-inch size alone is not enough. Select hydraulic lines separately with suitable fittings and routing, and check the completed front package against the rear braking system.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.

Manufacturer warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
