Wilwood Front DPHA Brake Kit for Acura Integra/Honda Civic/Fit (1990–2013), Black Calipers, Plain 262 mm Rotors

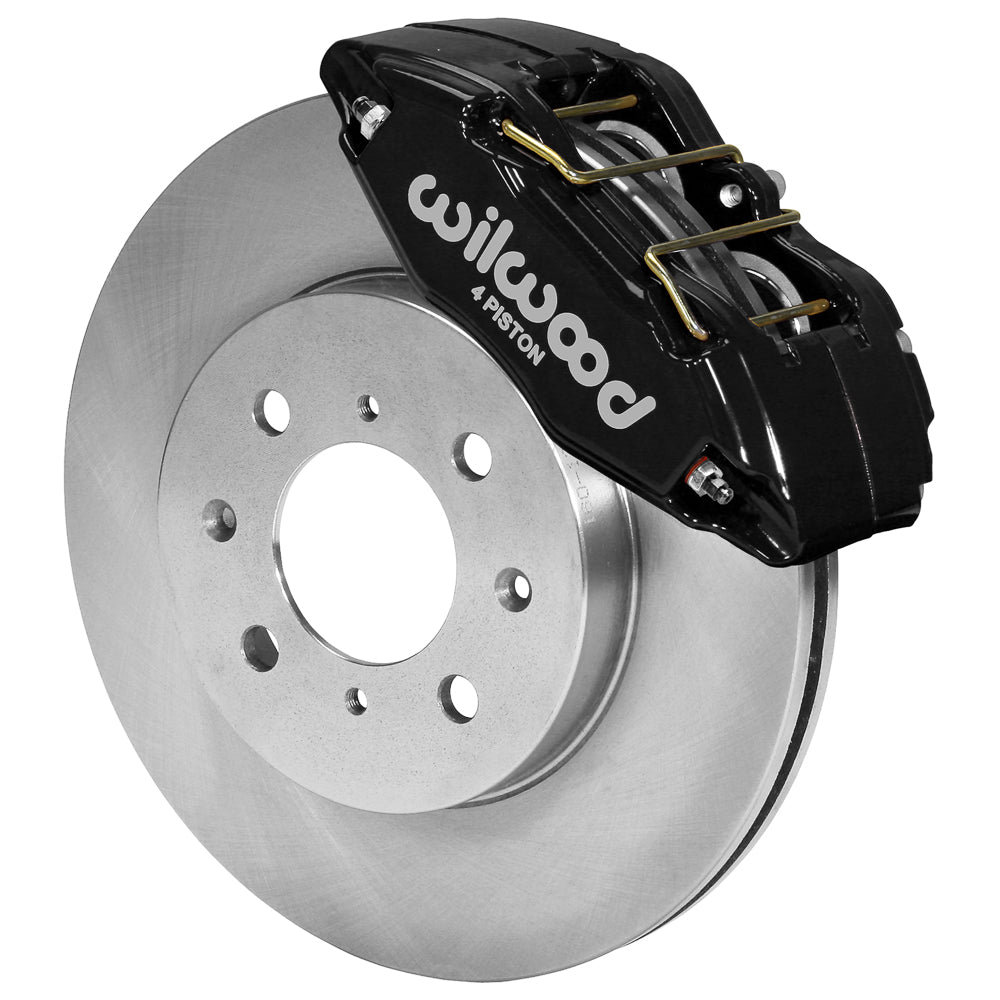

Black four-piston DPHA calipers and plain 262 mm rotors form this Wilwood front brake package for the listed Acura Integra and Honda Civic/Fit applications. The calipers mount to the specified original spindle configuration, with BP-10 pads and fastening hardware included. Original 262 mm rotor equipment is essential: fitting larger rotors to an originally smaller brake spindle does not create the required mounting geometry. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12996
• Type: Forged DPHA Front Caliper and Rotor Kit.
• Calipers: Forged DPHA; 4-piston; Black Powder Coat.
• Piston bore dimensions: 1.62, 1.62 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 10.32-inch outside diameter × 0.83-inch width; Plain Face; Iron; Plain surface finish.
• Rotor construction: vented.
• Wheel-mounting change from OE: 0.00 inch per side.
• Wheel bolt pattern: 4 x 3.93 in; 4 x 99.82 mm.

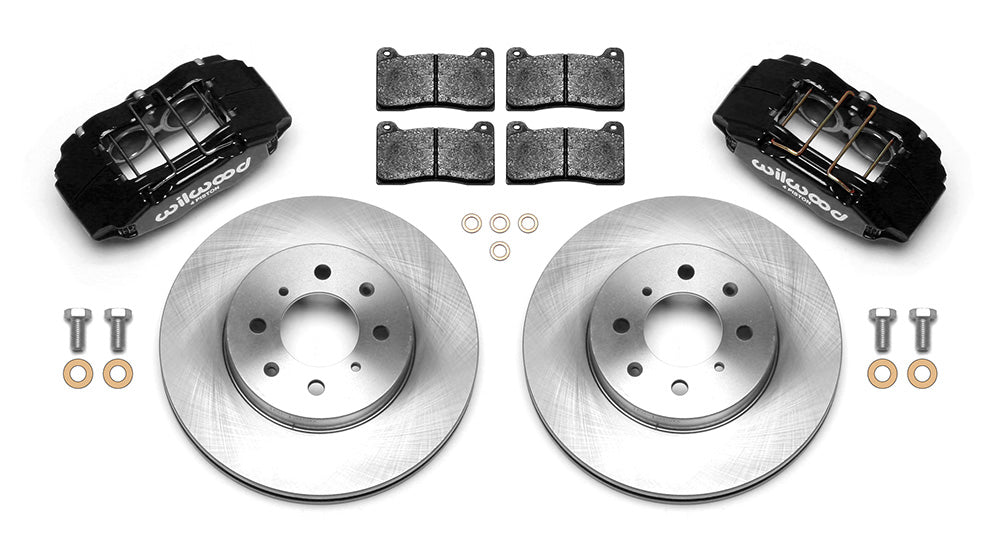

• Included: paired calipers, pads, rotors and mounting hardware.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Confirm model year, body style, transmission and rear-brake equipment against the individual row, including the Integra Type-R exclusion. Vehicles originally using 240 mm rotors and spindles remain excluded even after a 262 mm rotor swap. Check wheel clearance with the complete drawing; some 15-inch wheels need a different offset or spacers. Suitable hydraulic lines are separate. Verify caliper centering, line connections and steering freedom, then assess front/rear balance with the existing system.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.

Manufacturer warning, brake pads only: WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
