Wilwood Plain Front Brake/Hub Package, Red Calipers, Falcon/Ranchero/Comet/Fairlane/Cyclone/Mustang/Caliente/Cougar/Torino/Montego/Maverick (1963–1970)

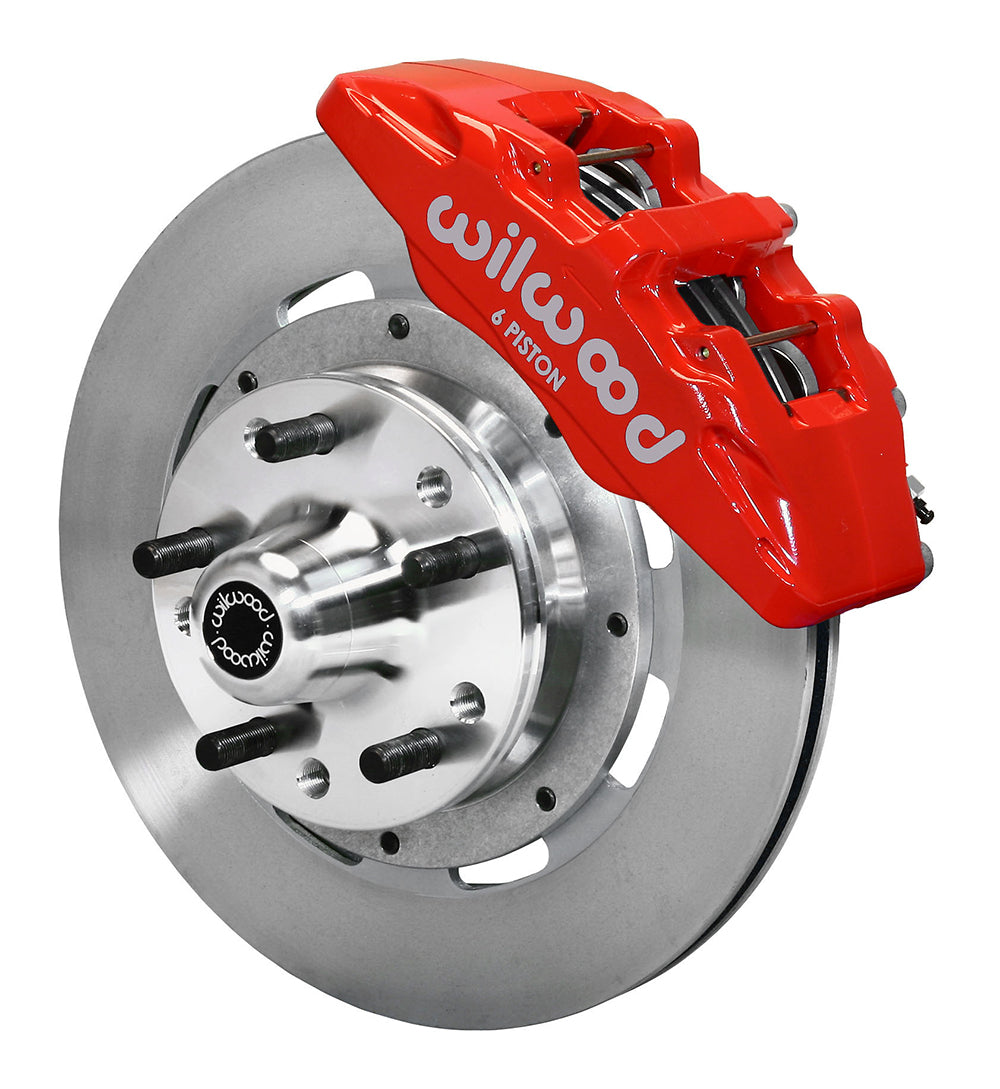

On the specified early Ford/Mercury front spindle, this package places a plain iron friction ring around a separate aluminum replacement hub. The supplied red Dynapro calipers have six stainless pistons, with 1.62- and 1.38-inch bore dimensions, and operate with BP-10 pads. Each ring measures 12.19 inches outside diameter and 0.81 inch across its friction width. The brackets and bearing hardware must correspond to the original spindle arrangement identified for the vehicle. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12947-R
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub).
• Calipers: Dynapro 6; 6-piston; Red Powder Coat.
• Piston bore dimensions: 1.62, 1.38, 1.38 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 12.19-inch outside diameter × 0.81-inch width; Plain Face; Iron; Plain surface finish.
• Rotor ventilation: 32 vanes.
• Wheel-mounting change from OE: +0.09 inch per side.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

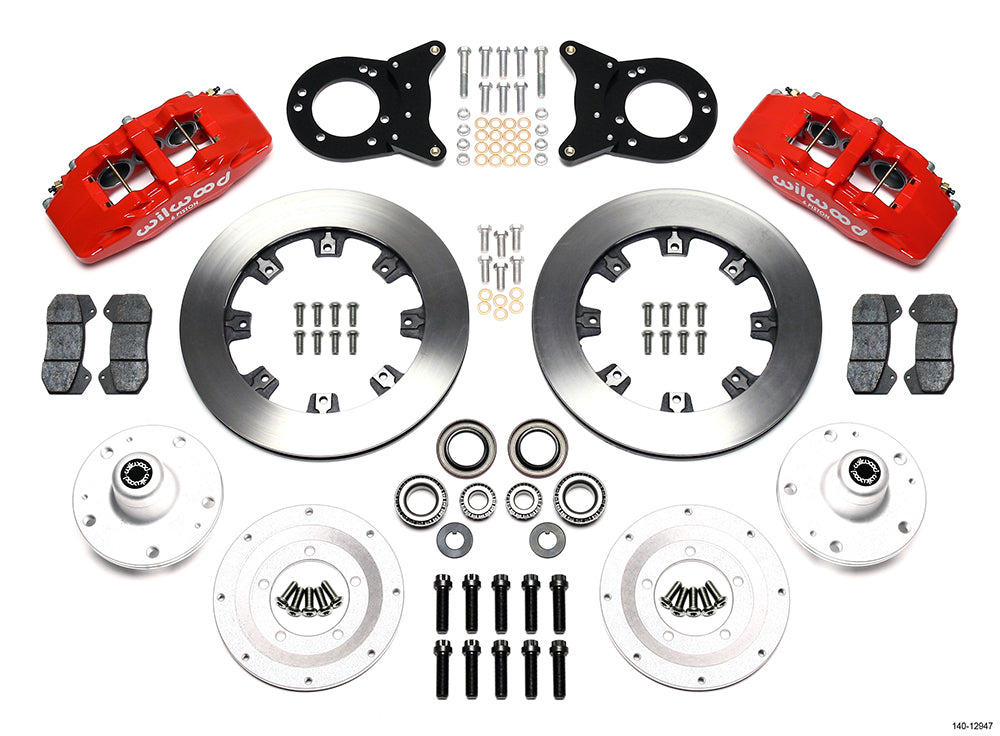

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, replacement hubs and bearing hardware.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.
• Disc-spindle preparation may require drilling and re-tapping the bracket-mounting holes. Follow the exact three-hole versus four-hole bracket arrangement and machining procedure for the specified spindle in the installation document.
• Conditional wheel support: if the wheel contact face overhangs the new hub, the separately sold 6.60-inch-diameter × 0.20-inch-thick steel support spacer specified in the linked installation instructions is required. Check full seating before assembly. For stamped steel wheels without overhang, Wilwood recommends a separate 6.15-inch-diameter × 0.09-inch-thick hub shield.

Fitment & Compatibility

Begin by identifying spindle construction and bearing seats, including the V8-only requirement on the early Falcon, Ranchero and Comet rows. The relevant 1970 Mustang drum application uses the production boundary through August 24, 1969; its disc rows have separate Shelby conditions. DS964 sets out the bracket holes and machining for the different original arrangements. Inspect hub support at the entire wheel contact face, then assess tire position with the 0.09-inch outward change included. The wheel template checks caliper space independently. Choose and route hoses for the actual chassis, and verify the hydraulic setup against the rear brakes.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
