Wilwood Red Six-Piston Front Hub Kit, Falcon/Ranchero/Comet/Fairlane/Cyclone/Mustang/Caliente/Cougar/Torino/Montego/Maverick (1963–1970), Drilled Rotors

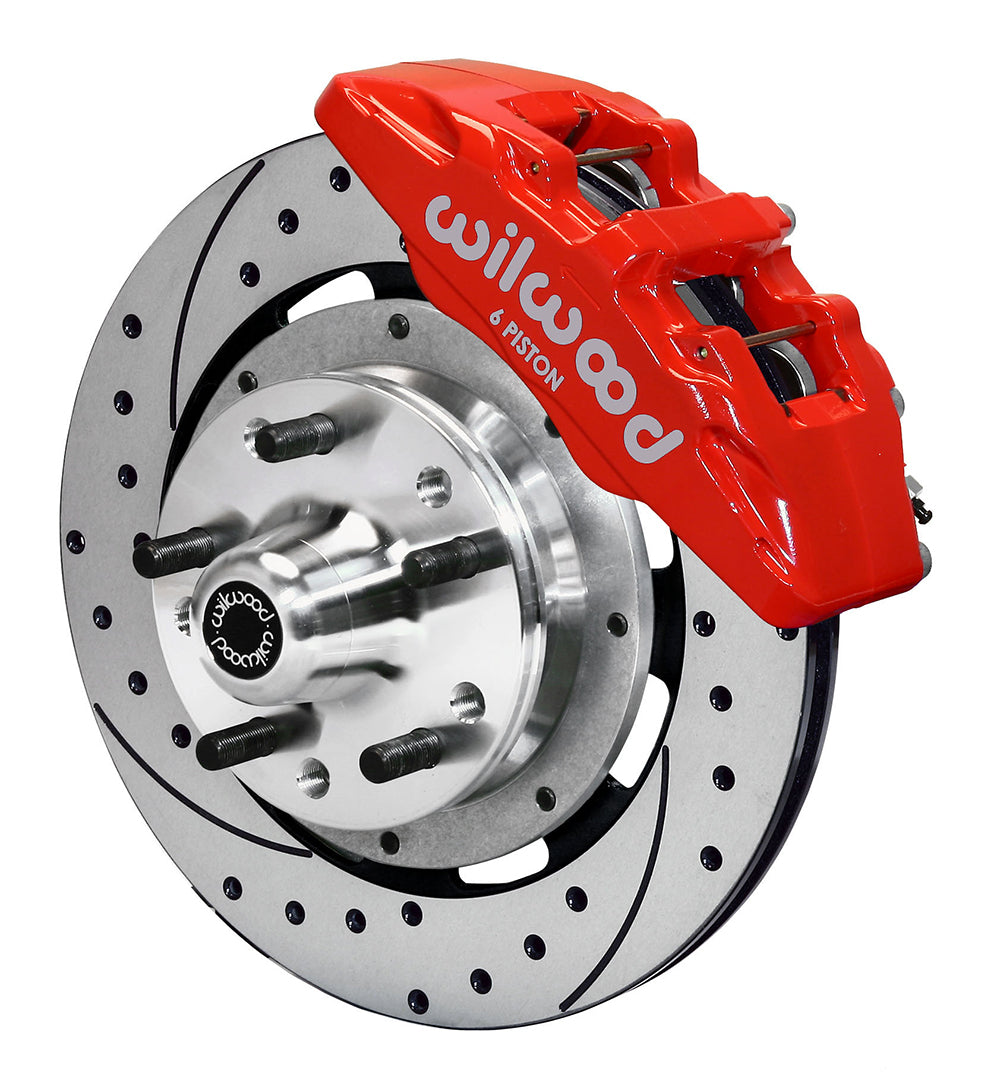

The red Dynapro calipers in this early Ford/Mercury front package use six stainless pistons with 1.62- and 1.38-inch bore dimensions. They work with drilled/slotted 12.19-inch rings, BP-10 pads and replacement hubs rather than a retained integral rotor/hub. The selected 0.81-inch-wide friction rings and spindle-specific brackets must match the individual vehicle conditions in the application list. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12947-DR
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub).
• Calipers: Dynapro 6; 6-piston; Red Powder Coat.
• Piston bore dimensions: 1.62, 1.38, 1.38 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 12.19-inch outside diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat surface finish.
• Rotor ventilation: 32 vanes.
• Wheel-mounting change from OE: +0.09 inch per side.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

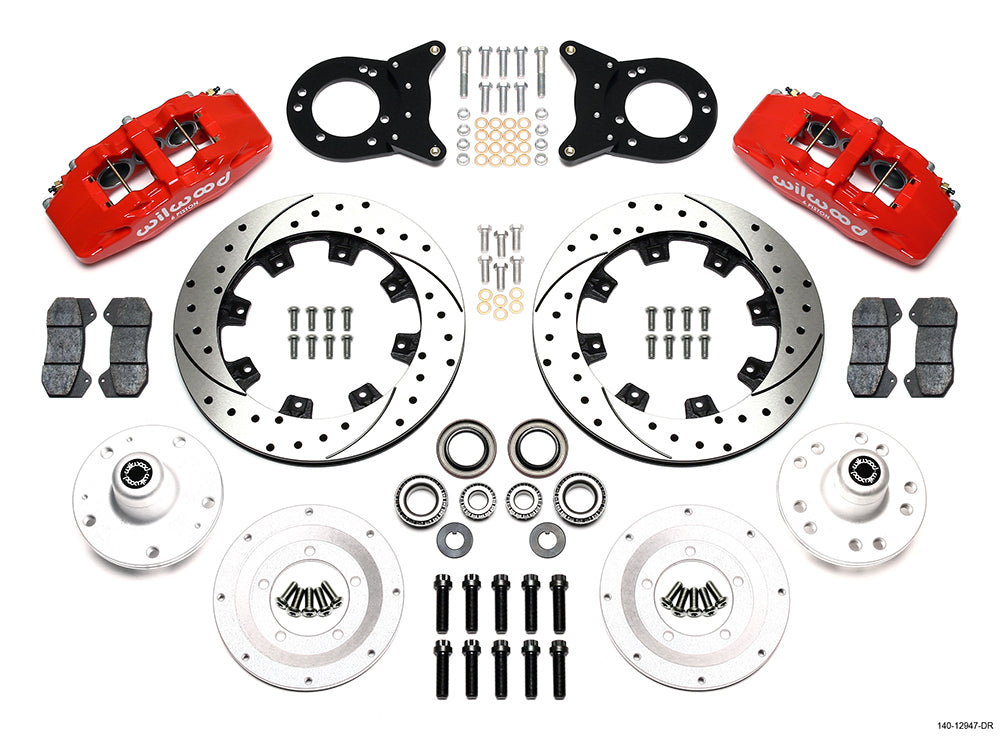

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, replacement hubs and bearing hardware.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.
• Disc-spindle preparation may require drilling and re-tapping the bracket-mounting holes. Follow the exact three-hole versus four-hole bracket arrangement and machining procedure for the specified spindle in the installation document.
• Conditional wheel support: if the wheel contact face overhangs the new hub, the separately sold 6.60-inch-diameter × 0.20-inch-thick steel support spacer specified in the linked installation instructions is required. Check full seating before assembly. For stamped steel wheels without overhang, Wilwood recommends a separate 6.15-inch-diameter × 0.09-inch-thick hub shield.

Fitment & Compatibility

Determine whether the original spindle uses the four-hole arrangement or the specified three-hole disc configuration before ordering. DS964 explains the associated drilling and re-tapping work. The early V8-spindle requirements and the relevant 1969 production boundary remain important, as do the separately listed Shelby brake applications. Inspect bearing seating and include the 0.09-inch outward wheel change when checking tire position. The hydraulic lines are a separate choice. Verify the actual rim with the clearance diagram and assess the rear brakes before final setup.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
