Wilwood Drilled Front Hub Conversion, Falcon/Ranchero/Comet/Fairlane/Cyclone/Mustang/Caliente/Cougar/Torino/Montego/Maverick (1963–1970), Black Calipers

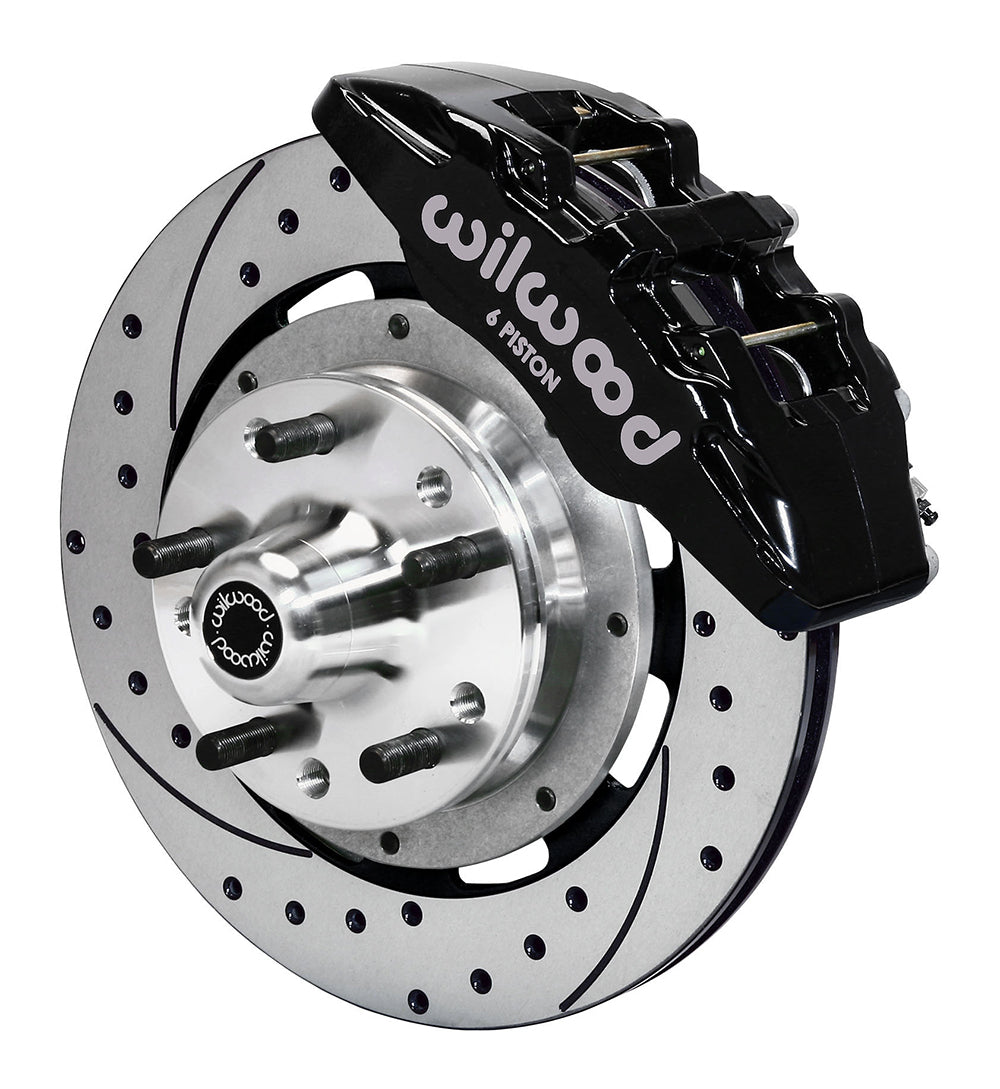

This front axle conversion supplies black Dynapro calipers and drilled/slotted 12.19-inch rotors on separate aluminum hubs for the specified early Ford/Mercury spindle arrangements. Six pistons, BP-10 pads and kit-specific bracket hardware make up the selected braking package. The replacement hubs list 5 x 4.50- and 5 x 4.75-inch bolt circles, so the installed stud pattern and chosen wheels must agree before assembly. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12947-D
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub).
• Calipers: Dynapro 6; 6-piston; Black Powder Coat.
• Piston bore dimensions: 1.62, 1.38, 1.38 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 12.19-inch outside diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat surface finish.
• Rotor ventilation: 32 vanes.
• Wheel-mounting change from OE: +0.09 inch per side.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

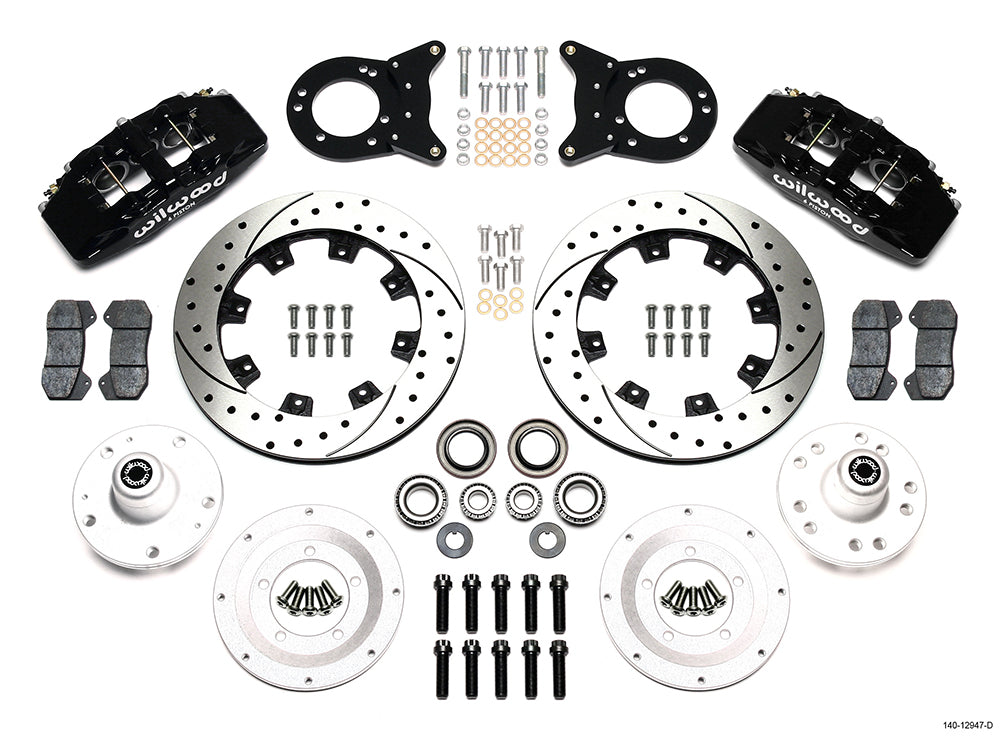

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, replacement hubs and bearing hardware.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.
• Disc-spindle preparation may require drilling and re-tapping the bracket-mounting holes. Follow the exact three-hole versus four-hole bracket arrangement and machining procedure for the specified spindle in the installation document.
• Conditional wheel support: if the wheel contact face overhangs the new hub, the separately sold 6.60-inch-diameter × 0.20-inch-thick steel support spacer specified in the linked installation instructions is required. Check full seating before assembly. For stamped steel wheels without overhang, Wilwood recommends a separate 6.15-inch-diameter × 0.09-inch-thick hub shield.

Fitment & Compatibility

Identify the actual spindle and its bearing journals before using the model-year list. DS964 separates the bracket-hole arrangements, including the three-hole 1968–1969 disc-spindle configuration, and details the machining that applies. Early V8-only entries and the drum-brake production boundary still need individual confirmation. Inspect complete wheel-face seating on the hub and account for the outward offset change. Check the rim against the entire caliper envelope, choose hydraulic lines separately and confirm the completed system suits the rear brake arrangement.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
