Wilwood Front Red Caliper/Plain-Rotor Package with New Hubs for Bel Air/Biscayne/Caprice/Impala/Brookwood/Corvette/Kingswood/Townsman/Estate (1968–1982)

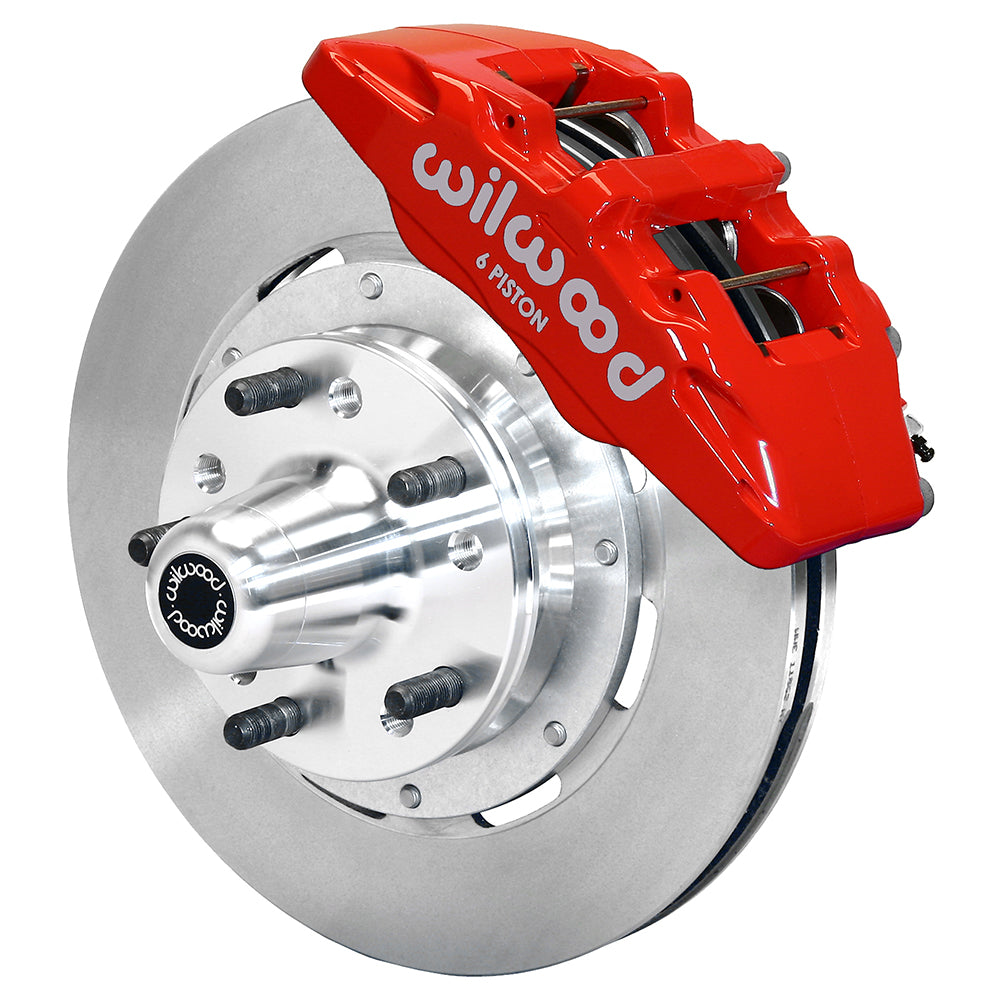

Plain 12.19-inch rotors and red Dynapro 6 calipers make up this Chevrolet front brake/hub conversion. The six-piston kit supplies replacement hubs and mounting hardware with 1.10-inch-wide friction rings. Correct original spindle identification is essential for the individually listed full-size cars and C3 Corvette; neither the broad year span nor caliper finish establishes compatibility by itself. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12946-R
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub).
• Calipers: Dynapro 6; 6-piston; Red Powder Coat.
• Piston bore dimensions: 1.62, 1.38, 1.38 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 12.19-inch outside diameter × 1.10-inch width; Plain Face; Iron; Plain surface finish.
• Rotor ventilation: 32 vanes.
• Wheel-mounting change from OE: +0.28 inch per side.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

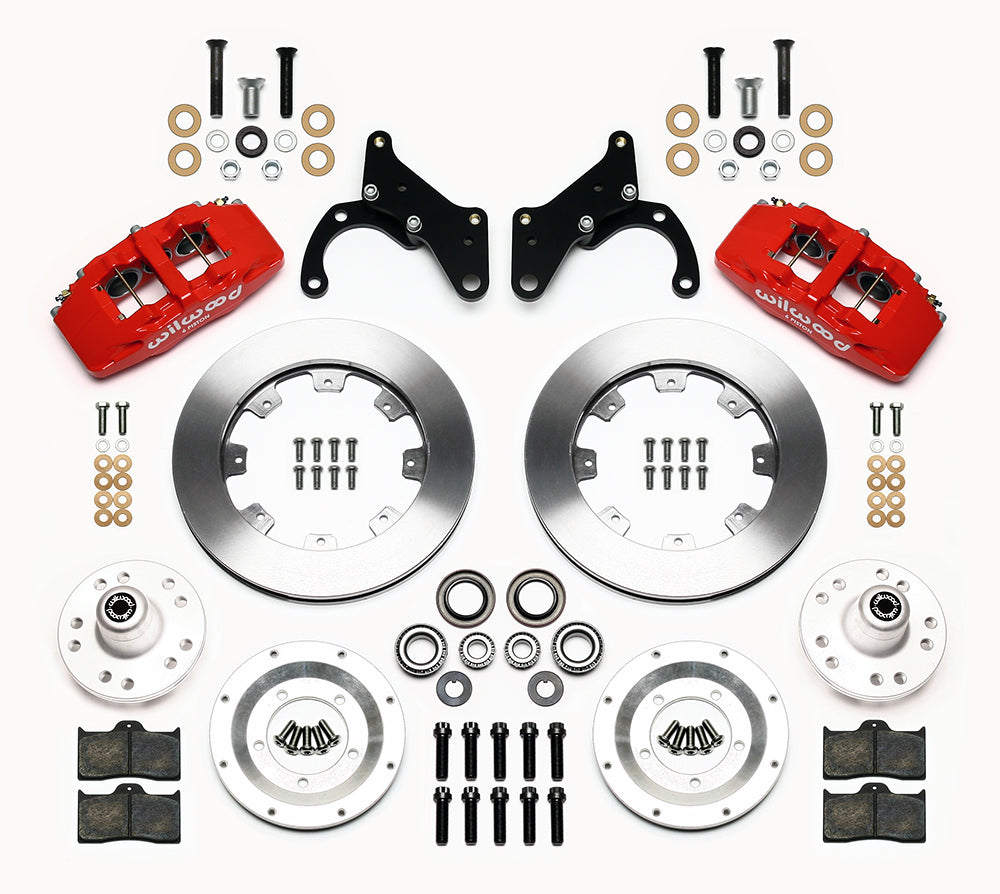

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, replacement hubs and bearing hardware.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.
• Conditional wheel support: if the wheel contact face overhangs the new hub, the separately sold 6.60-inch-diameter × 0.20-inch-thick steel support spacer specified in the linked installation instructions is required. Check full seating before assembly. For stamped steel wheels without overhang, Wilwood recommends a separate 6.15-inch-diameter × 0.09-inch-thick hub shield.

Fitment & Compatibility

Check the exact vehicle row, including factory drum/disc distinctions and exclusions associated with single-piston power-disc equipment. Inspect spindle and bearing fit before assembling and adjusting the replacement hubs. The wheel mounting surface moves outward 0.28 inch per side, which must be included in tire-clearance checks. Verify spoke and barrel space using the complete wheel drawing. Choose suitable flex lines separately and confirm caliper centering, hose freedom and hydraulic balance before testing the completed installation.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
