Wilwood Plain 12.19-Inch Front Brake/Hub Package, Red Calipers, Fairlane/Falcon/Maverick/Mustang/Ranchero/Torino/Cougar/Cyclone/Montego/Comet (1970–1974)

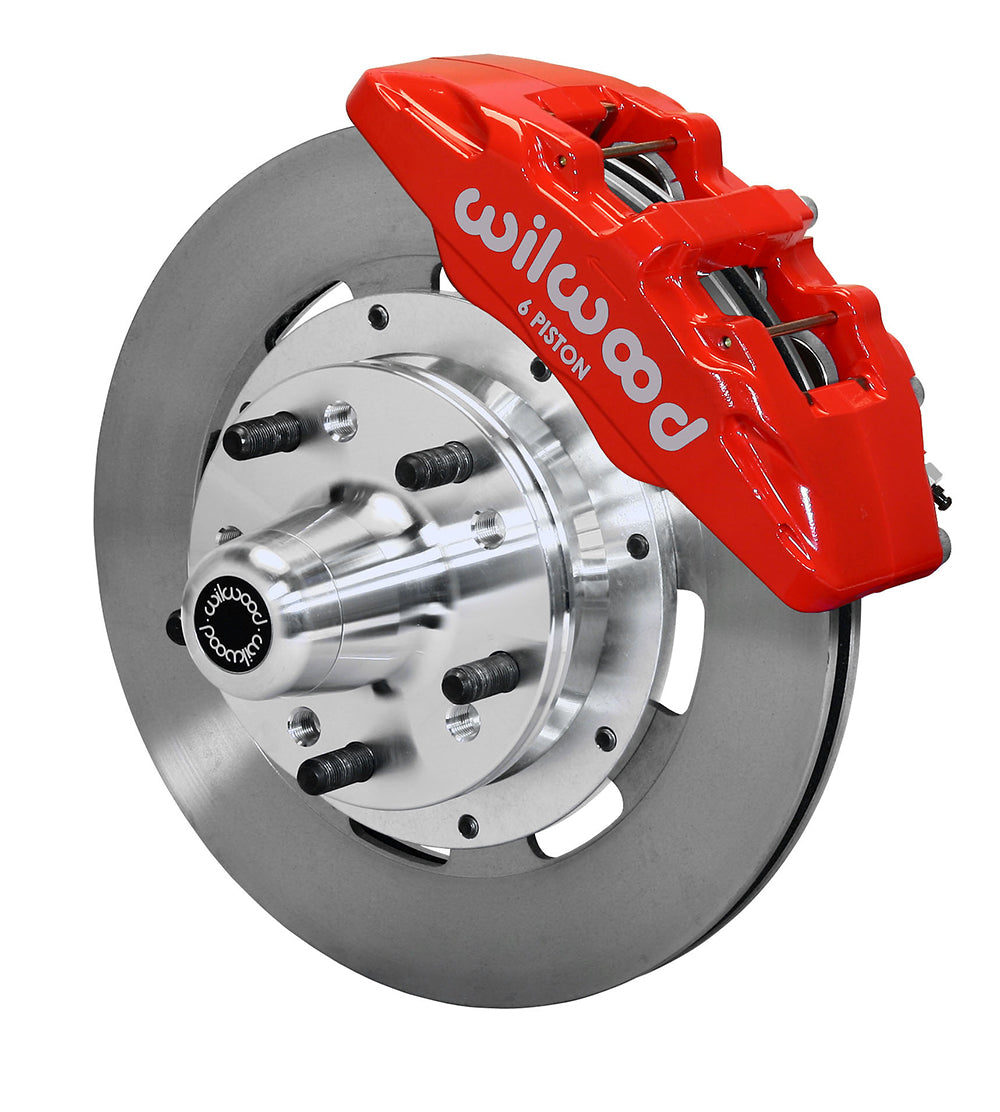

Separate aluminum hubs carry plain iron rotor rings in this red-caliper front conversion for the listed later Ford and Mercury spindles. The 12.19-inch rings have a 0.81-inch friction width and work with six-piston Dynapro bodies, stainless pistons and BP-10 pads. Brackets and bearing hardware accompany the package, but the original spindle and the rest of the hydraulic system must still match the vehicle-specific requirements. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12945-R
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub).
• Calipers: Dynapro 6; 6-piston; Red Powder Coat.
• Piston bore dimensions: 1.62, 1.38, 1.38 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 12.19-inch outside diameter × 0.81-inch width; Plain Face; Iron; Plain surface finish.
• Rotor ventilation: 32 vanes.
• Wheel-mounting change from OE: +0.09 inch per side.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

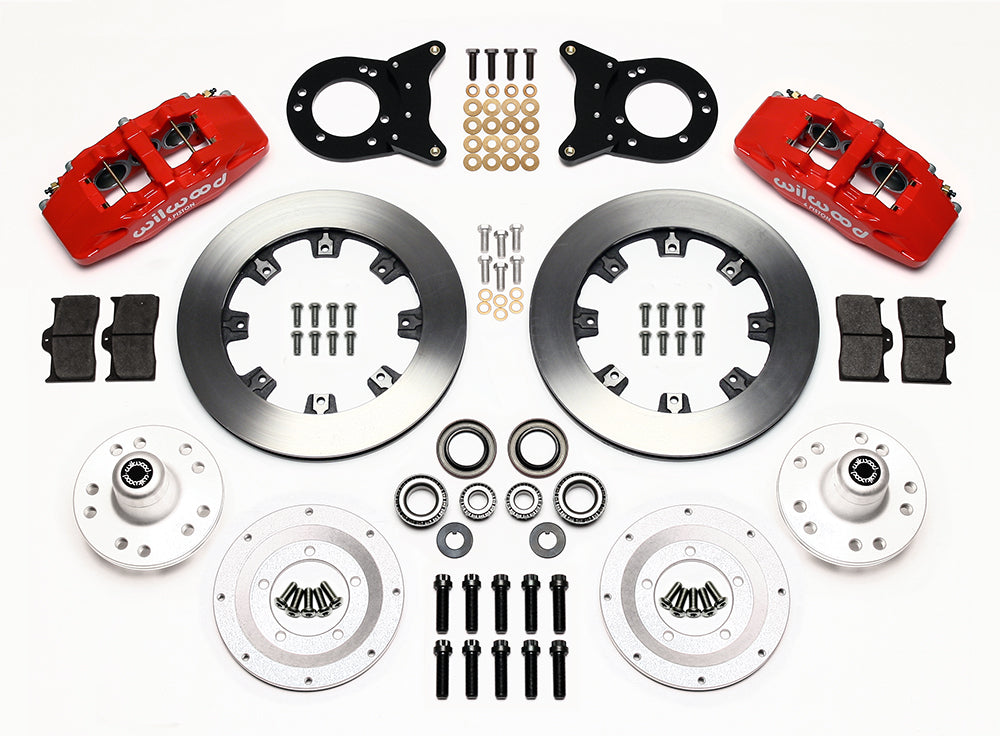

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, replacement hubs and bearing hardware.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.
• Disc-spindle preparation may require drilling and re-tapping the bracket-mounting holes. Follow the exact three-hole versus four-hole bracket arrangement and machining procedure for the specified spindle in the installation document.
• Conditional wheel support: if the wheel contact face overhangs the new hub, the separately sold 6.60-inch-diameter × 0.20-inch-thick steel support spacer specified in the linked installation instructions is required. Check full seating before assembly. For stamped steel wheels without overhang, Wilwood recommends a separate 6.15-inch-diameter × 0.09-inch-thick hub shield.

Fitment & Compatibility

Establish whether the car has the relevant factory drum spindle or the supported disc version. DS962 uses different bracket holes and fasteners for those configurations, with disc-spindle drilling and re-tapping specified where applicable. Check the exact build date and the Mustang Shelby exclusions in the vehicle list. The supplied hubs move the wheel outward by 0.09 inch per side; check tire position and complete hub-face support before evaluating the rim against the clearance drawing. Obtain suitable flex lines separately and verify pedal travel after balancing the whole system.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
