Wilwood Drilled Front Hub Conversion for Fairlane/Falcon/Maverick/Mustang/Ranchero/Torino/Cougar/Cyclone/Montego/Comet (1970–1974), Black Calipers

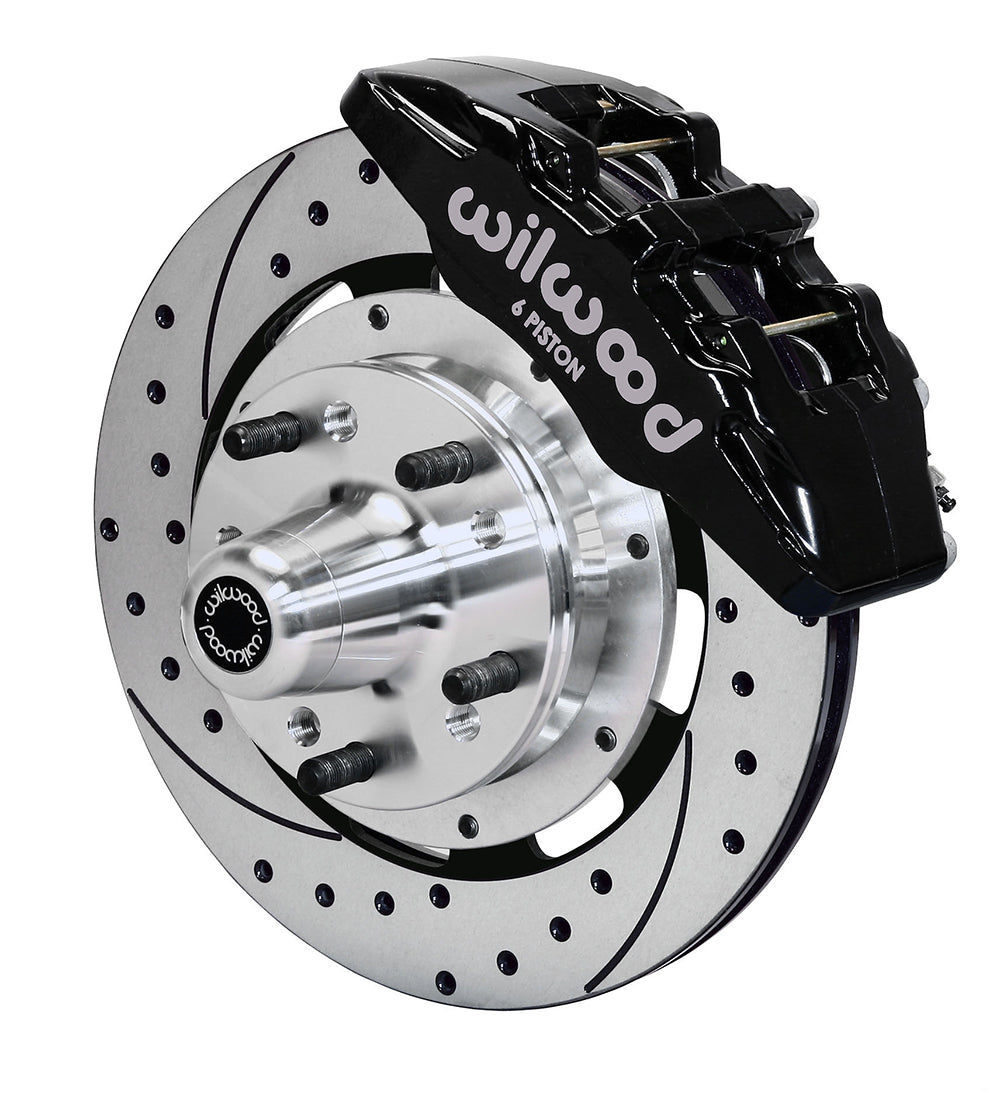

Black six-piston Dynapro calipers work with drilled/slotted 12.19-inch rotors and replacement hubs in this Wilwood front package. It serves the individually listed later Ford/Mercury drum- and disc-spindle configurations. The kit's bearing, bracket and rotor hardware must match the original spindle, including production-date and factory brake-package differences rather than relying on the vehicle model alone. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12945-D
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub).
• Calipers: Dynapro 6; 6-piston; Black Powder Coat.
• Piston bore dimensions: 1.62, 1.38, 1.38 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 12.19-inch outside diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat surface finish.
• Rotor ventilation: 32 vanes.
• Wheel-mounting change from OE: +0.09 inch per side.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

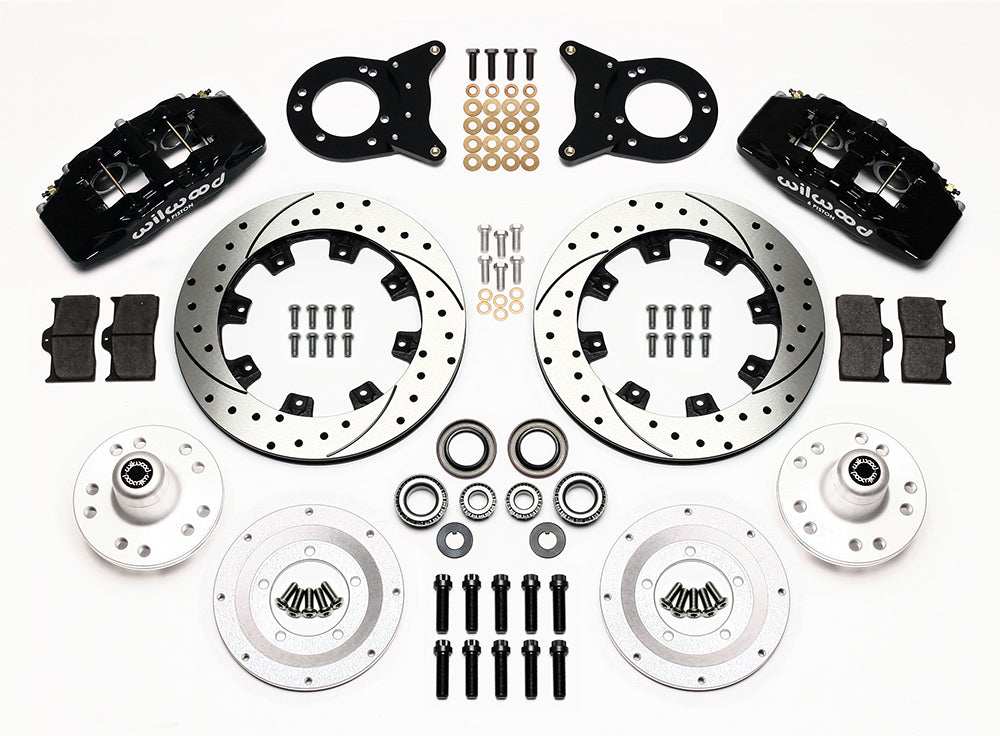

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, replacement hubs and bearing hardware.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.
• Disc-spindle preparation may require drilling and re-tapping the bracket-mounting holes. Follow the exact three-hole versus four-hole bracket arrangement and machining procedure for the specified spindle in the installation document.
• Conditional wheel support: if the wheel contact face overhangs the new hub, the separately sold 6.60-inch-diameter × 0.20-inch-thick steel support spacer specified in the linked installation instructions is required. Check full seating before assembly. For stamped steel wheels without overhang, Wilwood recommends a separate 6.15-inch-diameter × 0.09-inch-thick hub shield.

Fitment & Compatibility

Identify the actual spindle and observe each application restriction, including early-versus-late 1970 equipment and Mustang GT350/GT500 exclusions. Follow the hub-bearing adjustment and caliper-centering instructions. The wheel mounting surface moves outward 0.09 inch per side, so include that change in tire/fender checks. Some 15-inch wheels may clear only after template verification. Select compatible flex lines separately and confirm steering freedom, pedal travel and the complete front/rear hydraulic relationship.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.
