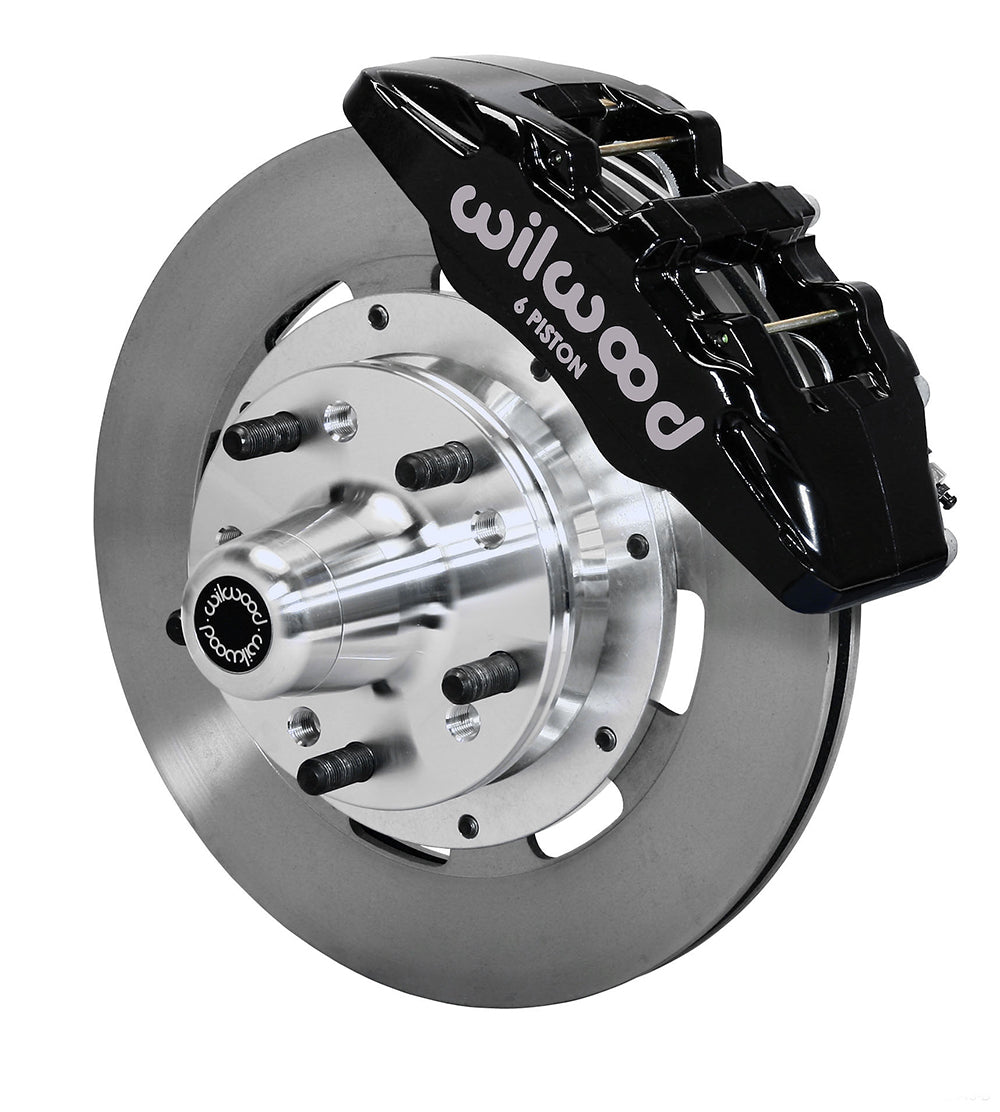

Wilwood Front Dynapro 6 Hub Brake Kit for Fairlane/Falcon/Maverick/Mustang/Ranchero/Torino/Cougar/Cyclone/Montego/Comet (1970–1974), Black Calipers and Plain Rotors

This black Dynapro 6 front conversion uses plain 12.19-inch rotors and replacement hubs on the listed Ford and Mercury spindle applications. The six-piston kit includes BP-10 pads and mounting components, with the appropriate original disc or drum spindle retained. Production dates and Shelby-related restrictions matter within the vehicle list; a general 1970s Ford application does not establish the required spindle geometry. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12945
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub).
• Calipers: Dynapro 6; 6-piston; Black Powder Coat.
• Piston bore dimensions: 1.62, 1.38, 1.38 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 12.19-inch outside diameter × 0.81-inch width; Plain Face; Iron; Plain surface finish.
• Rotor ventilation: 32 vanes.
• Wheel-mounting change from OE: +0.09 inch per side.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

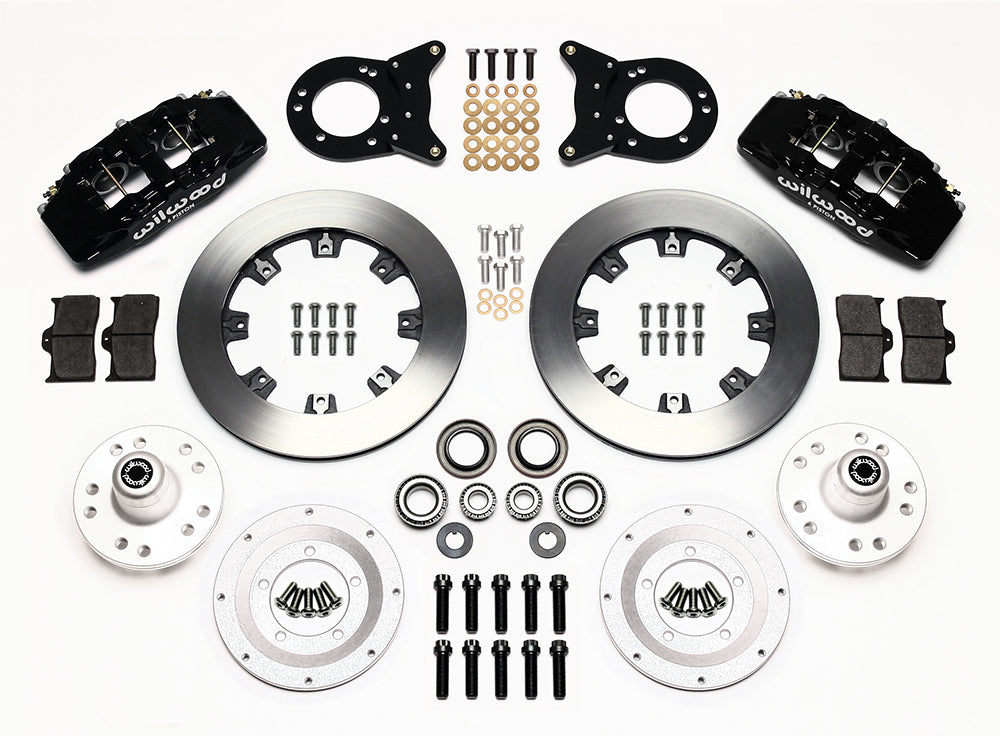

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, replacement hubs and bearing hardware.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.
• Disc-spindle preparation may require drilling and re-tapping the bracket-mounting holes. Follow the exact three-hole versus four-hole bracket arrangement and machining procedure for the specified spindle in the installation document.
• Conditional wheel support: if the wheel contact face overhangs the new hub, the separately sold 6.60-inch-diameter × 0.20-inch-thick steel support spacer specified in the linked installation instructions is required. Check full seating before assembly. For stamped steel wheels without overhang, Wilwood recommends a separate 6.15-inch-diameter × 0.09-inch-thick hub shield.

Fitment & Compatibility

Check the table's disc-versus-drum conditions and the August 25, 1969 production boundary where shown. Some Mustang entries exclude GT350/GT500 equipment. Inspect spindle and bearing seating before assembling the new hubs. Allow for the published outward wheel-mounting change of 0.09 inch per side, and compare the wheel with the full template. Hoses are selected separately; use the correct vehicle fittings and clearance through steering movement before checking brake balance.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
