Wilwood Front Dynalite Brake Kit for Custom/Deluxe/Country Squire/Crestline/Crestliner/Victoria/Crestline Victoria/Mainline/Sunliner/Monterey/Customline (1949–1953), Black Calipers, Integral Rotor/Hubs

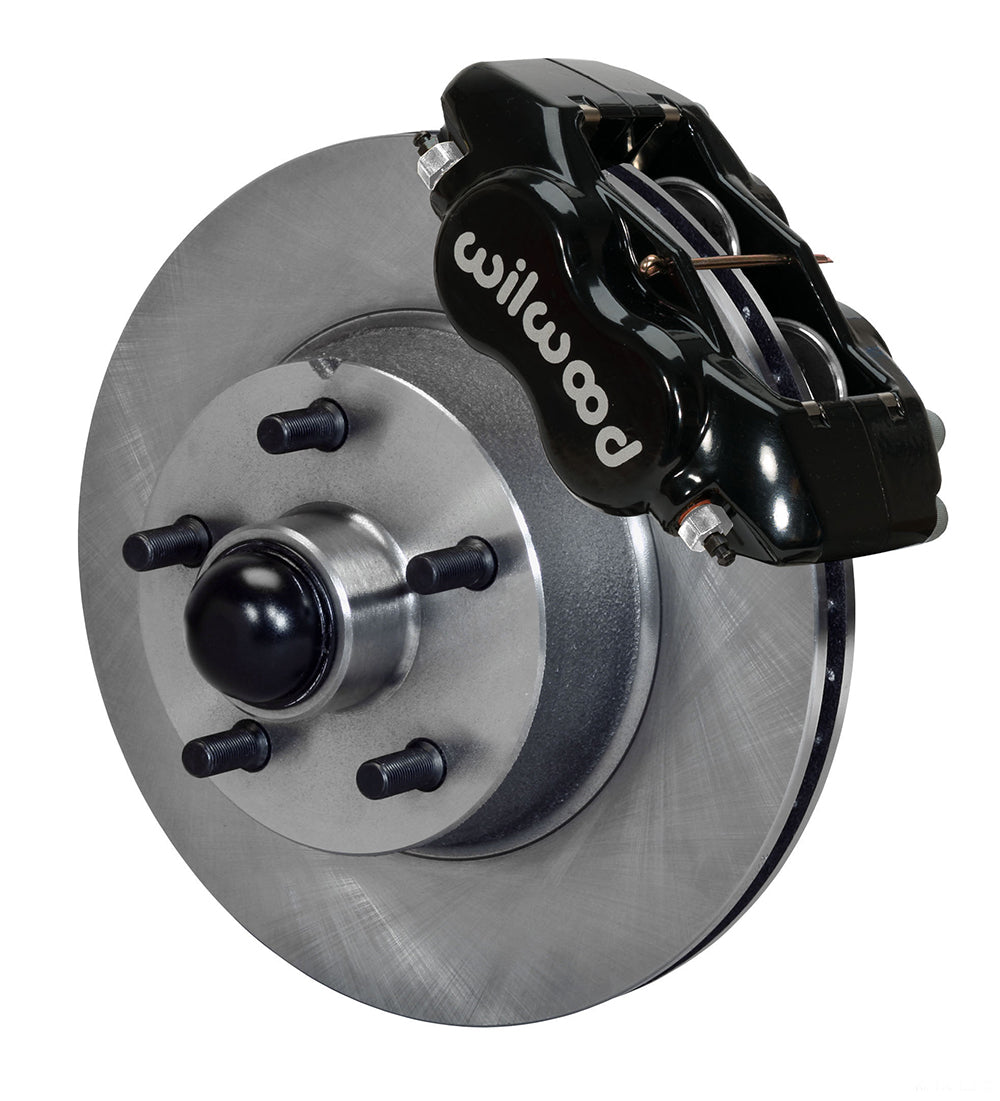

Wilwood's classic front conversion uses black four-piston Dynalite Internal calipers and integral rotor/hub assemblies for the listed Ford and Mercury passenger cars. The selected component diameter is 11.29 inches, with plain friction faces and BP-10 pads. Included flex lines and bearing-related hardware accompany the conversion on the compatible factory drum spindle; the original vehicle's body style and production year remain significant. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12913
• Type: Classic Series Dynalite Front Brake Kit.
• Calipers: Forged Dynalite Internal; 4-piston; Black Powder Coat.
• Piston bore dimensions: 1.75, 1.75 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 11.29-inch outside diameter × 0.94-inch width; Plain Face; Iron; Plain surface finish.
• Rotor construction: vented.
• Wheel bolt pattern: 5 X 4.5 in; 5 X 114.3 mm.

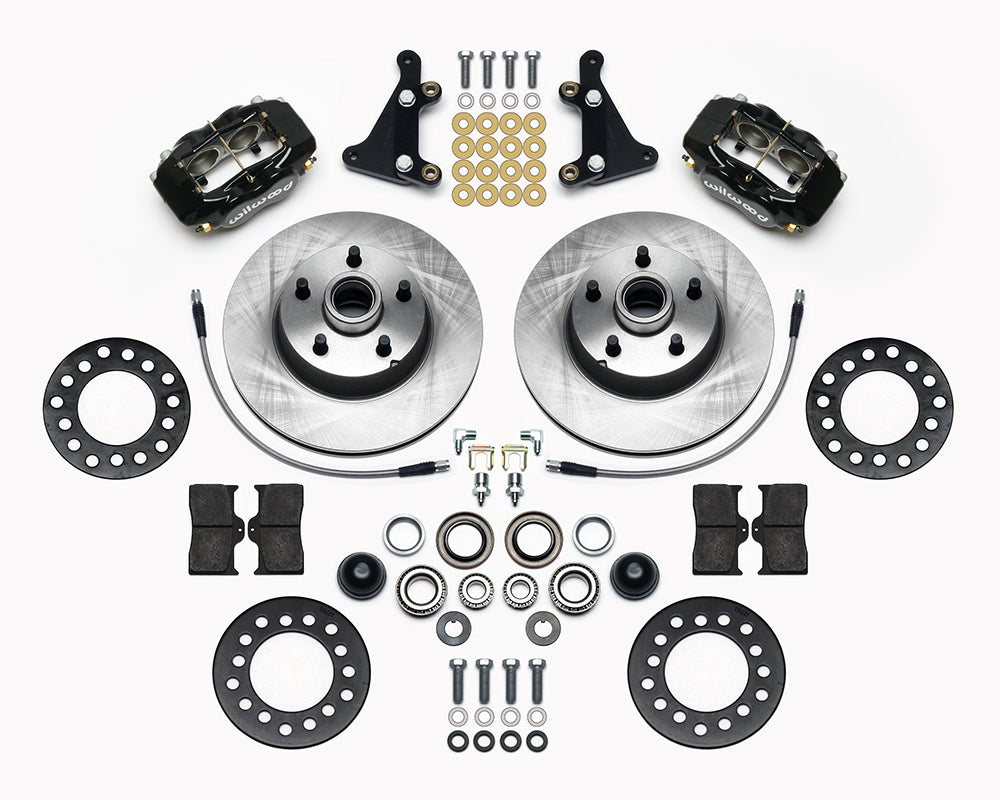

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets; integral rotor/hub assemblies and bearing hardware.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.
• Diameter confirmation required: selected rotor component is 11.29 inches; kit summary says 11.28 inches and the installation heading says 11.30 inches. Confirm the supplied component before machining or clearance decisions.
• Stock-wheel clearance requires the supplied wheel spacers in the arrangement specified by the installation drawing; account for spacer thickness in wheel position and hardware engagement.

Fitment & Compatibility

Match the exact Ford or Mercury model/year row and its body-style note before comparing the drum spindle with the instructions. Confirm the 5 x 4.50-inch wheel pattern and hub seating. Assemble and adjust the rotor/hub bearings as directed, then align the calipers. The nominal 15-inch wheel reference remains conditional on the full diagram. Route the supplied hoses clear of steering movement and verify pedal travel and balance with the rear brakes.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
