Wilwood Rear Drilled/Slotted Brake Package, FR-S/BRZ/86/GR86 (2013–2024), Black Four-Piston Calipers

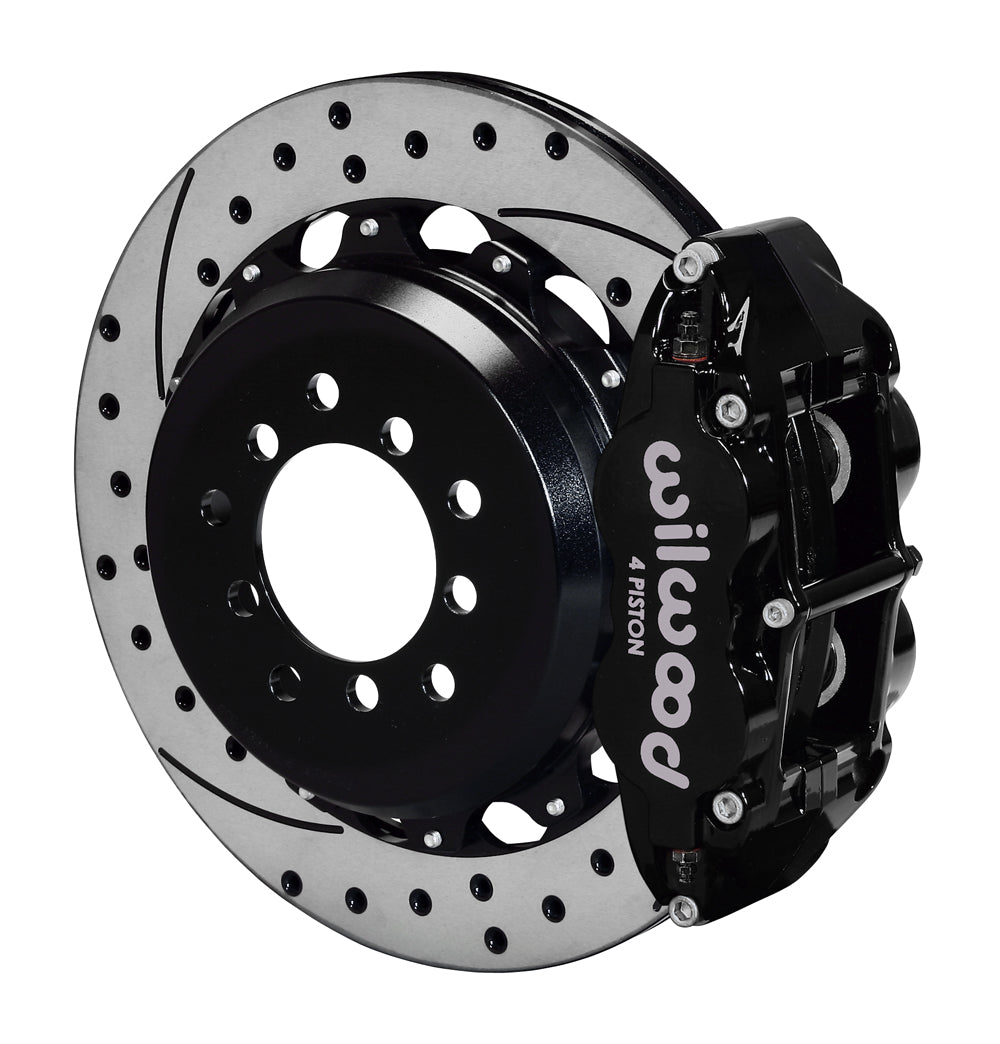

This Wilwood rear conversion pairs black four-piston radial calipers with drilled/slotted 12.88-inch iron rotors on separate hats. The supported Scion, Subaru and Toyota applications retain their compatible original parking-brake arrangement. Application-specific rear hoses are included, while the condition and adjustment of the vehicle's parking components remain part of a correct installation. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12871-D
• Type: Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake.
• Calipers: Forged Narrow Superlite 4R; 4-piston; Black Powder Coat.
• Piston bore dimensions: 1.12, 1.12 inches; stainless pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 12.88-inch outside diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat surface finish.
• Rotor ventilation: 48 curved vanes.
• Rotor hats: Parking Brake Hat - Standard; Iron; Black E-Coat.
• Wheel bolt circles: 5 x 3.93; 5 x 4.50 inches.

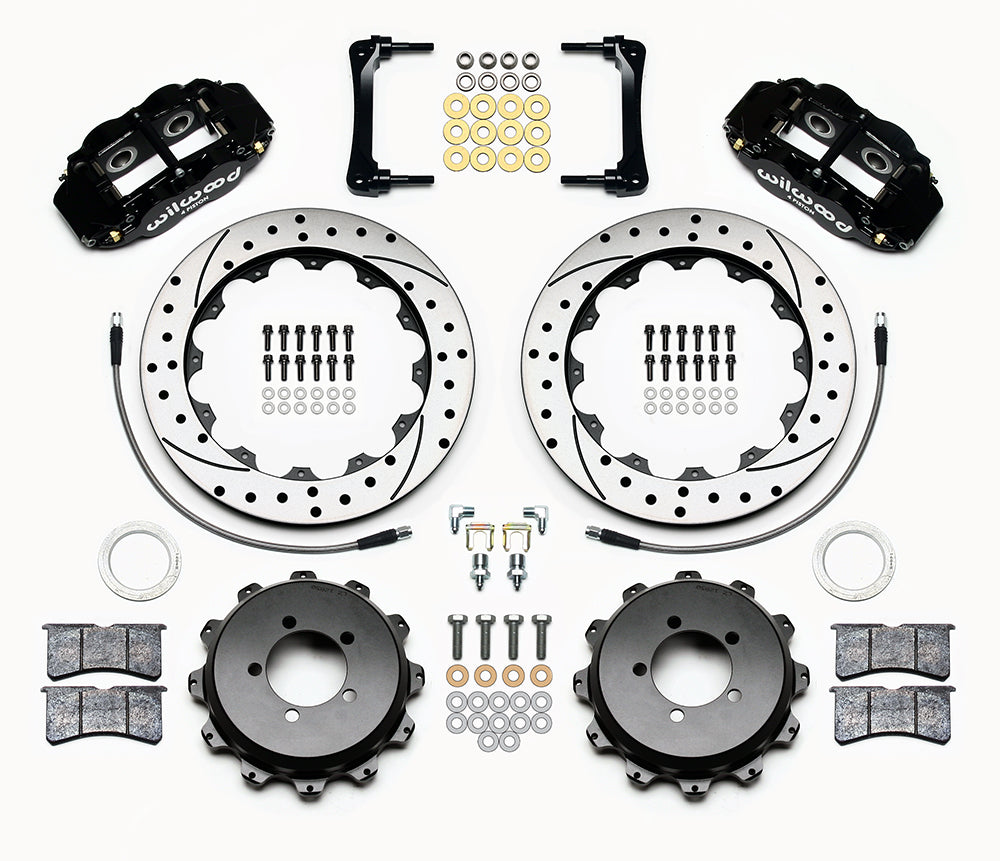

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 17 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Check the exact model/year entry before comparing the rear hubs and rotor-hat registration. A shared platform does not remove the need to identify original brake equipment. Inspect and adjust the existing parking mechanism, then align the hydraulic calipers using the bracket instructions. Compare the wheel's inner profile with the full clearance drawing. Brake hoses need freedom through suspension travel, and the completed rear package should be assessed against the front brakes and master-cylinder output.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
