Wilwood GT Slotted Front Brake Conversion, FR-S/BRZ/86/GR86 (2013–2024), Red Superlite Calipers

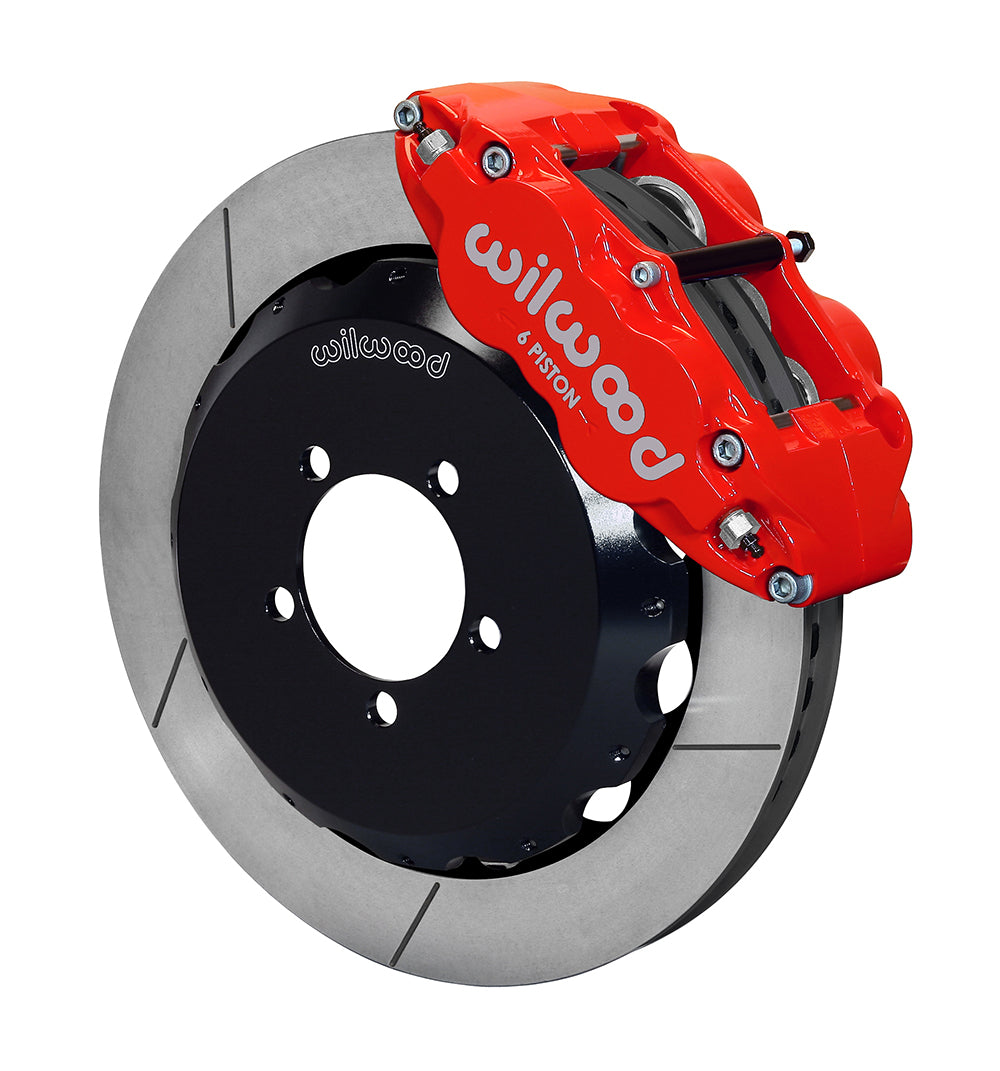

Red Superlite 6R calipers pair with GT slotted 12.88-inch rotors in this Wilwood front brake conversion for the listed coupe applications. Each rotor ring attaches to an aluminum hat, and the kit includes front hoses, pads and mounting hardware. Correct production-year and original hub identification remain essential across FR-S, BRZ, Toyota 86 and GR86 coverage. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12870-R
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat).
• Calipers: Forged Narrow Superlite 6R; 6-piston; Red Powder Coat.
• Piston bore dimensions: 1.62, 1.12, 1.12 inches; stainless pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 12.88-inch outside diameter × 1.10-inch width; GT Slotted; Spec-37 Iron; Black Electro Coat surface finish.
• Rotor ventilation: 48 curved vanes.
• Rotor hats: Big Brake Hat - Flared Bell; Aluminum; Black E-Coat.
• Wheel bolt circles: 5 x 3.93; 5 x 4.50 inches.

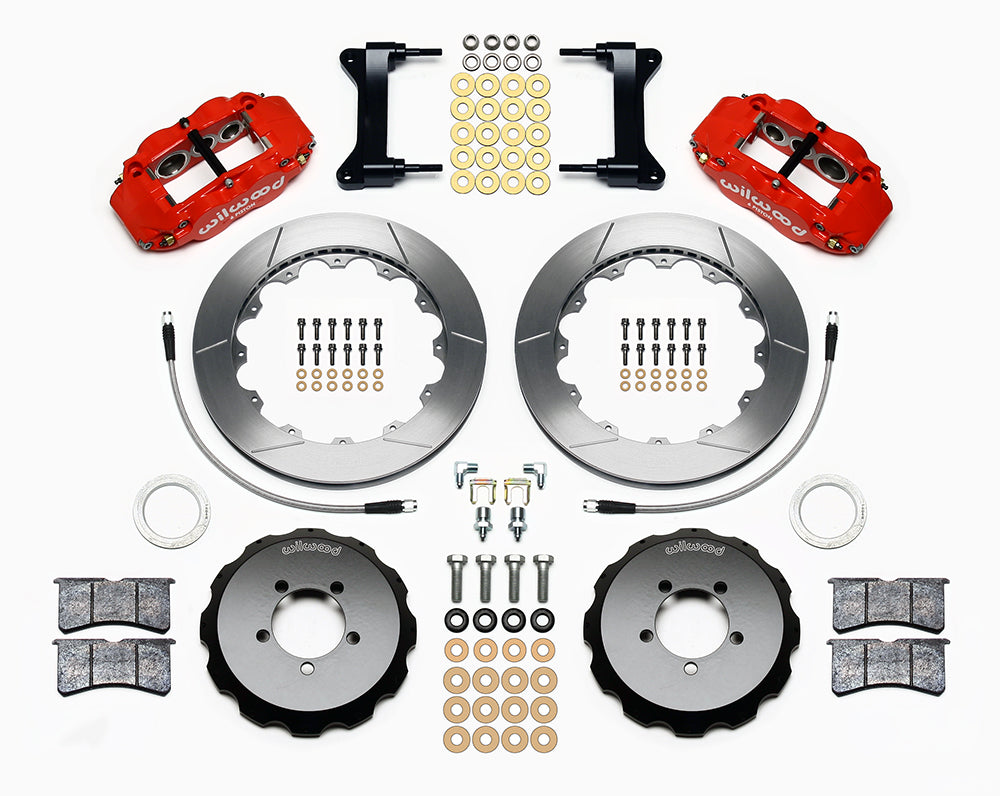

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 17 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Match the specific application and confirm that any aftermarket upright or hub retains the manufacturer's required geometry. Check hat seating, rotor position and caliper centering using the supplied assembly instructions. The wheel must clear the caliper over its entire spoke and barrel profile, not only at the rim opening. Route the flex lines through steering lock and suspension movement without strain, then check pedal travel and proportioning with the existing rear brake system.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
