Wilwood Front Plain 12.19-Inch Rotor/Hub Conversion, Estate Wagon/LeSabre/Skylark/Camaro/Caprice/Impala/Nova/Custom Cruiser/Delta 88/Omega/Bonneville/Catalina/Firebird/Phoenix/Parisienne (1979–1990), Red Six-Piston Calipers

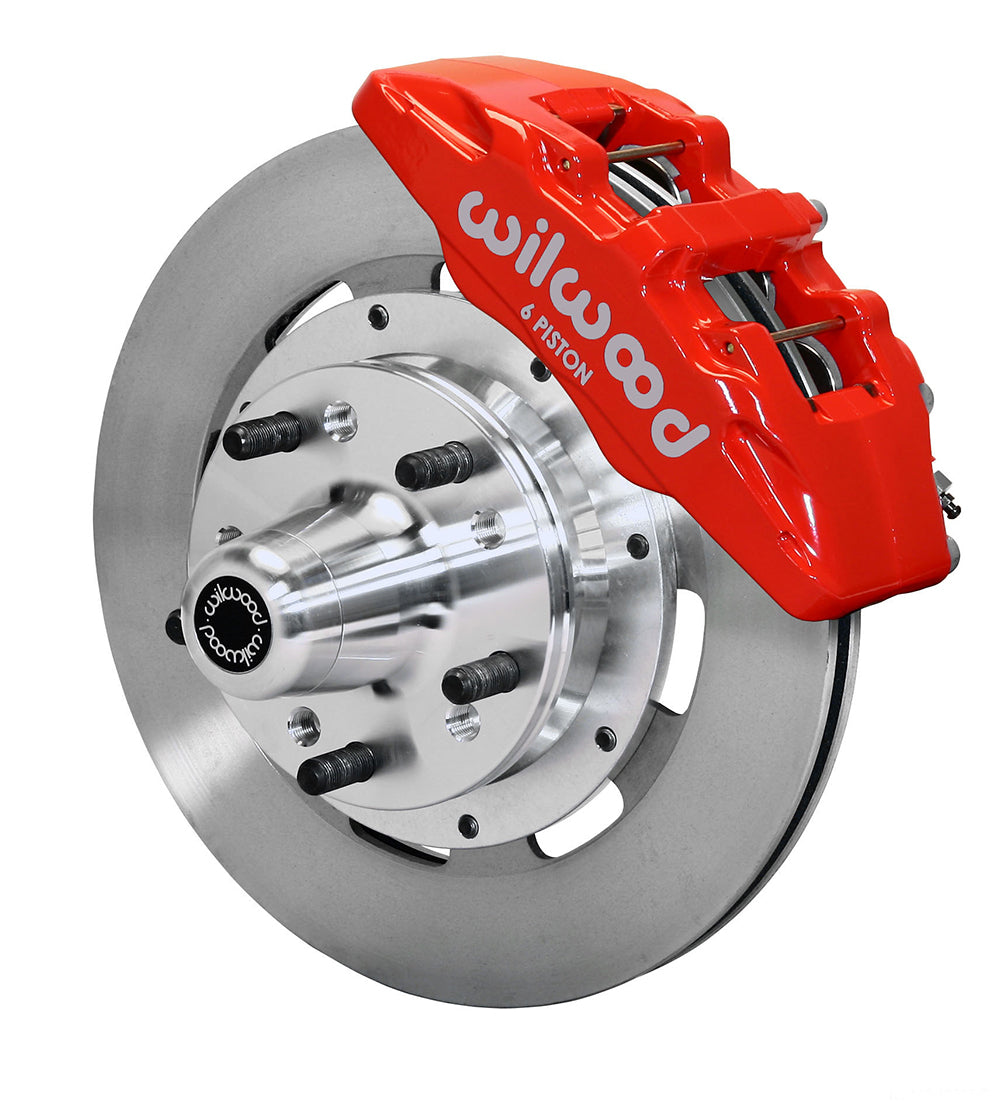

Plain friction faces distinguish this red-caliper Wilwood front hub kit from the drilled version. It combines six-piston Dynapro calipers with 12.19-inch iron rotors and replacement hubs for the compatible GM disc-spindle applications. Installation requires the specified 11-inch-rotor spindle and its documented modification. The kit supplies the brake and hub hardware, while vehicle-specific hydraulic lines remain a separate selection. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12836-R
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hub).
• Calipers: Dynapro 6; 6-piston; Red Powder Coat.
• Piston bore dimensions: 1.62, 1.38, 1.38 inches; stainless pistons. Caliper mounting: lug.
• Included pad compound: BP-10.
• Rotors: 12.19-inch outside diameter × 0.81-inch width; Plain Face; Iron; Plain surface finish.
• Rotor ventilation: 32 vanes.
• Wheel-mounting change from OE: -0.10 inch per side.
• Replacement hubs: Hub - Vented Rotor Offset; Aluminum; Bare.
• Wheel bolt circles: 5 x 4.50; 5 x 4.75 inches.

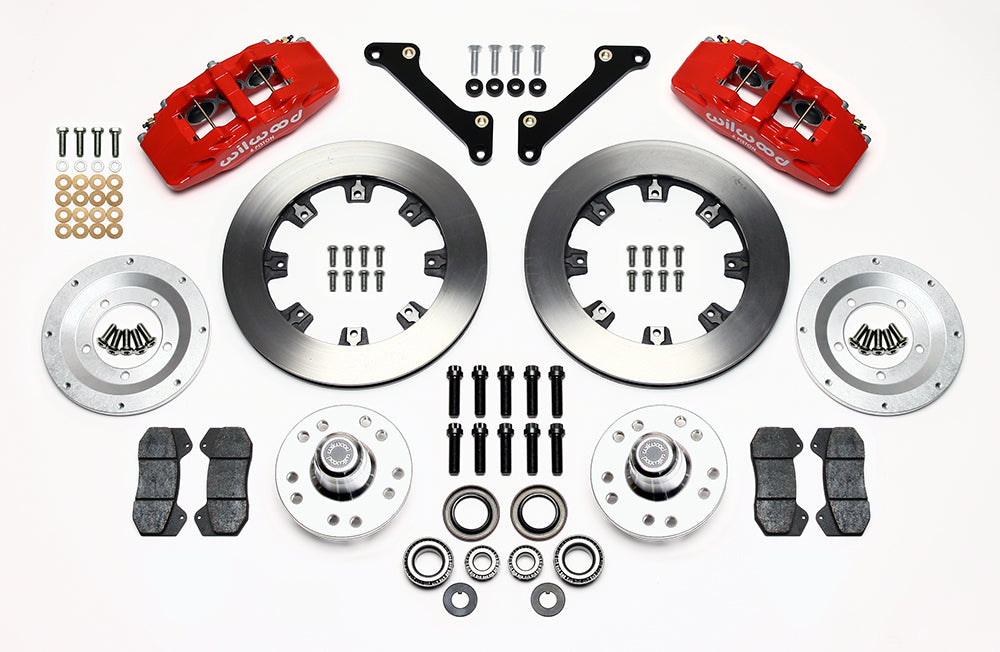

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, replacement hubs and bearing hardware.
• Hydraulic flex lines are separate; select the correct fittings, length and route for the vehicle.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.
• Required spindle preparation: substantial steering-arm/spindle modification includes drilling, tapping and removal of interfering ears. Follow the exact installation drawing; Wilwood recommends a qualified machine shop.
• Conditional wheel support: if the wheel contact face overhangs the new hub, the separately sold 6.60-inch-diameter × 0.20-inch-thick steel support spacer specified in the linked installation instructions is required. Check full seating before assembly. For stamped steel wheels without overhang, Wilwood recommends a separate 6.15-inch-diameter × 0.09-inch-thick hub shield.

Fitment & Compatibility

Inspect the actual upright and compare it with the manufacturer's preparation instructions before ordering. The application list includes multiple GM makes, but it does not authorize substituting a drum spindle or an unrelated disc spindle. Allow for the published inward wheel movement of 0.10 inch on each side when considering fender and suspension clearance. Check the complete wheel drawing rather than assuming any 15-inch rim fits. Adjust bearings, align calipers and route the selected hoses as specified before verifying the complete hydraulic setup.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
