Wilwood Red AERO6 Front Brake Package, F-150/F-150 Heritage/Navigator/Blackwood (1997–2004), 14.25-Inch Drilled Rotors

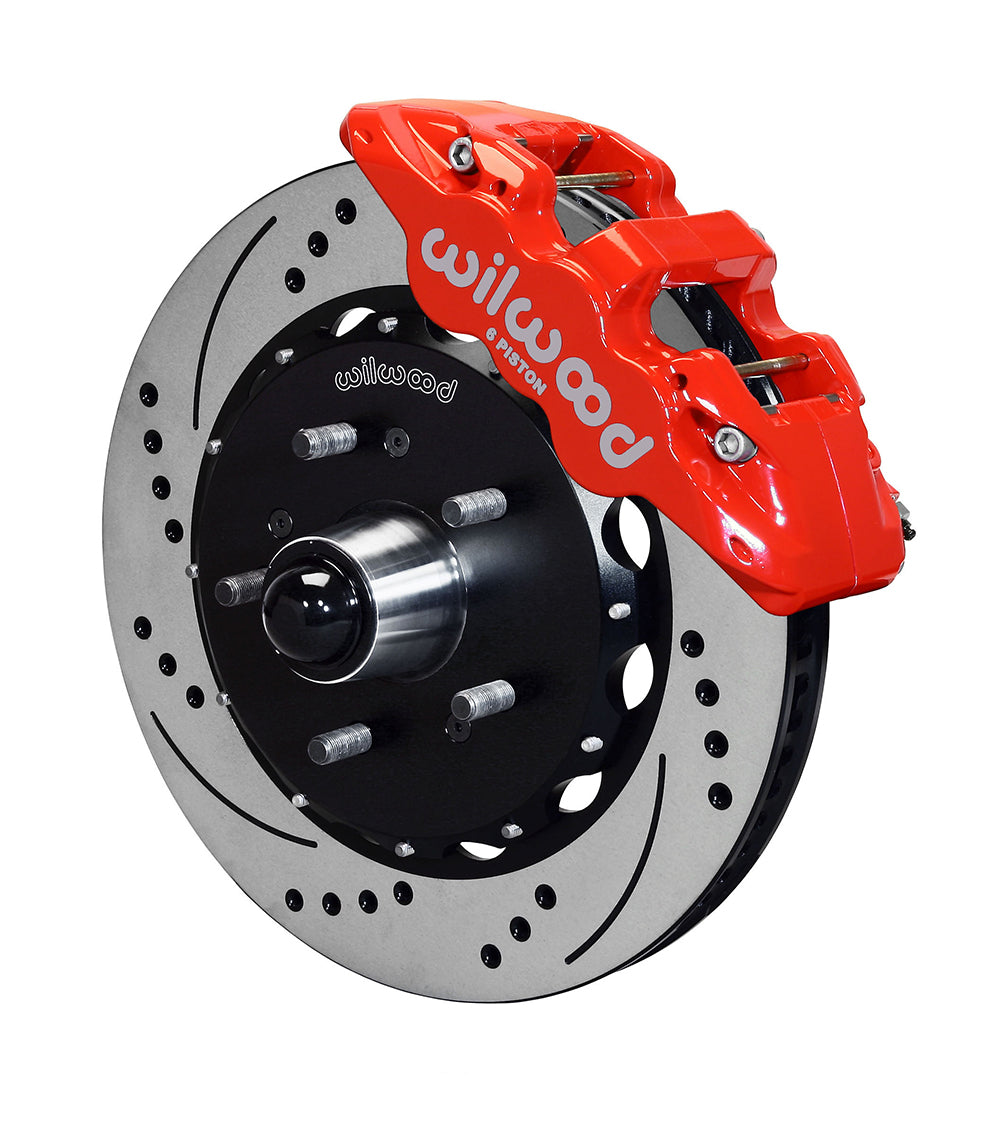

Red powder-coated AERO6 calipers pair with drilled/slotted 14.25-inch rotors in this Wilwood front truck package. It serves the defined 1997–2004 Ford/Lincoln applications shown below, using the selected five-lug, two-wheel-drive front mounting configuration. The rotor and caliper dimensions must be checked against the installed wheel design; appearance and nominal wheel diameter do not establish compatibility. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12824-DR
• Type: AERO6 Big Brake Truck Front Brake Kit.
• Calipers: AERO6; 6-piston; Red Powder Coat.
• Piston bore dimensions: 1.75, 1.38, 1.38 inches; stainless pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 14.25-inch outside diameter × 1.25-inch width; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface finish.
• Rotor ventilation: 72 curved vanes.
• Replacement hubs: Truck; Aluminum; Bare.
• Rotor hats: Big Brake Hat - Flared Bell; Aluminum; Black E-Coat.
• Wheel bolt circles: 5 x 5.32 inches.

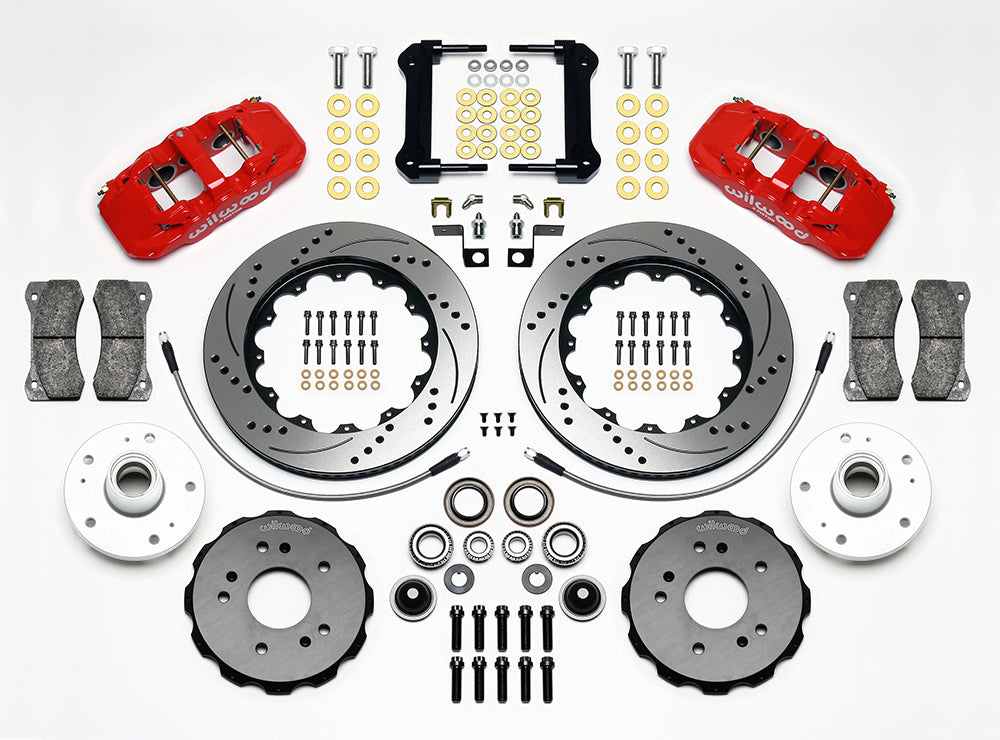

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, replacement hubs and bearing hardware, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 18 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.
• Confirm the supplied pad compound before ordering: the current selected component page identifies BP-10, while DS943 lists BP-22 in its parts list.
• Replacement lug nuts are required to match the supplied 1/2-20 wheel studs; do not reuse incompatible original lug nuts. Follow DS943.

Fitment & Compatibility

Establish the precise model, rear brake type and front hub arrangement before ordering. Navigator and Blackwood coverage differs from F-150 coverage, and the Heritage model has a specific rear-axle exclusion. Inspect hub condition and follow the bracket and hat assembly instructions. Route the supplied flex lines clear of steering and suspension movement. Allow for spoke clearance as well as barrel diameter using the kit template, then confirm that the truck's hydraulic system and rear brakes are appropriate for the completed conversion.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
