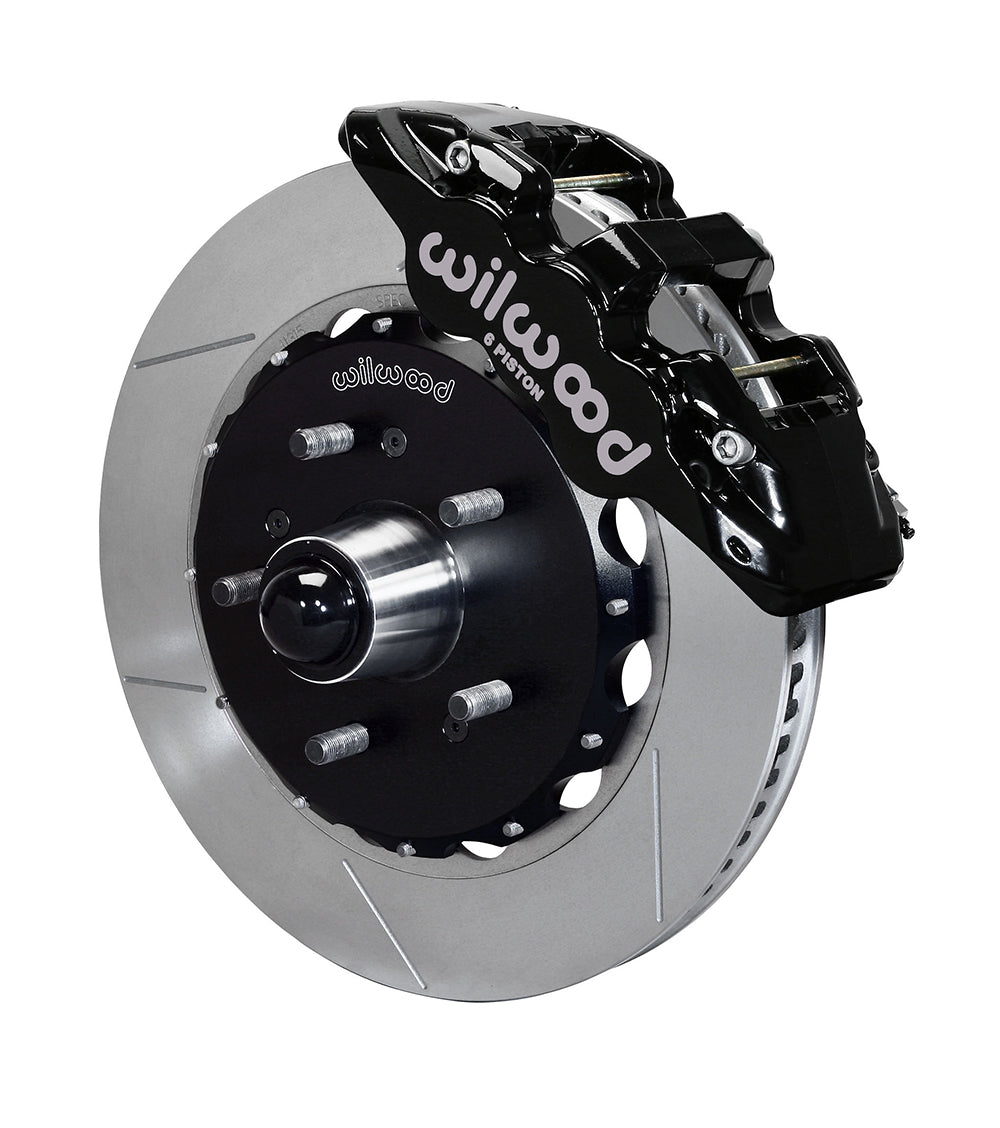

Wilwood Front AERO6 Brake Kit for Ford F-150/F-150 Heritage and Lincoln Navigator/Blackwood (1997–2004), Black Calipers, GT Slotted 14.25-Inch Rotors

Wilwood combines black AERO6 six-piston calipers with GT slotted 14.25-inch rotors in this front truck brake conversion. The listed Ford F-150 and Lincoln applications require the specified five-lug, two-wheel-drive arrangement; this package is not a general F-Series replacement. Included application-specific front flex lines connect the larger rotor and caliper assembly to the compatible vehicle's hydraulic system. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12824
• Type: AERO6 Big Brake Truck Front Brake Kit.
• Calipers: AERO6; 6-piston; Black Powder Coat.
• Piston bore dimensions: 1.75, 1.38, 1.38 inches; stainless pistons. Caliper mounting: radial.
• Included pad compound: BP-20.
• Rotors: 14.25-inch outside diameter × 1.25-inch width; GT Slotted; Spec-37 Iron; Black Electro Coat surface finish.
• Rotor ventilation: 72 curved vanes.
• Replacement hubs: Truck; Aluminum; Bare.
• Rotor hats: Big Brake Hat - Flared Bell; Aluminum; Black E-Coat.
• Wheel bolt circles: 5 x 5.32 inches.
• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, replacement hubs and bearing hardware, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 18 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.
• Confirm the supplied pad compound before ordering: the current selected component page identifies BP-20, while DS943 lists BP-22 in its parts list.
• Replacement lug nuts are required to match the supplied 1/2-20 wheel studs; do not reuse incompatible original lug nuts. Follow DS943.

Fitment & Compatibility

Check the table for disc-versus-drum rear brake distinctions, Lincoln model-year coverage and the 2004 F-150 Heritage restriction. The Heritage entry excludes the 7700 GVW rear axle. Verify the front hub and spindle configuration directly before ordering, particularly on a modified truck. Large-diameter rotors require an actual wheel-template check of the barrel and spoke profile. Follow the installation instructions for hose location and bracket alignment, and match the master-cylinder and rear-brake combination to the complete truck.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
