Wilwood Red Six-Piston Front Brake Package, Jetta/A3/A3 Quattro/Golf/GTI/Rabbit/Eos/Tiguan/Golf R (2005–2014), Drilled Rotors

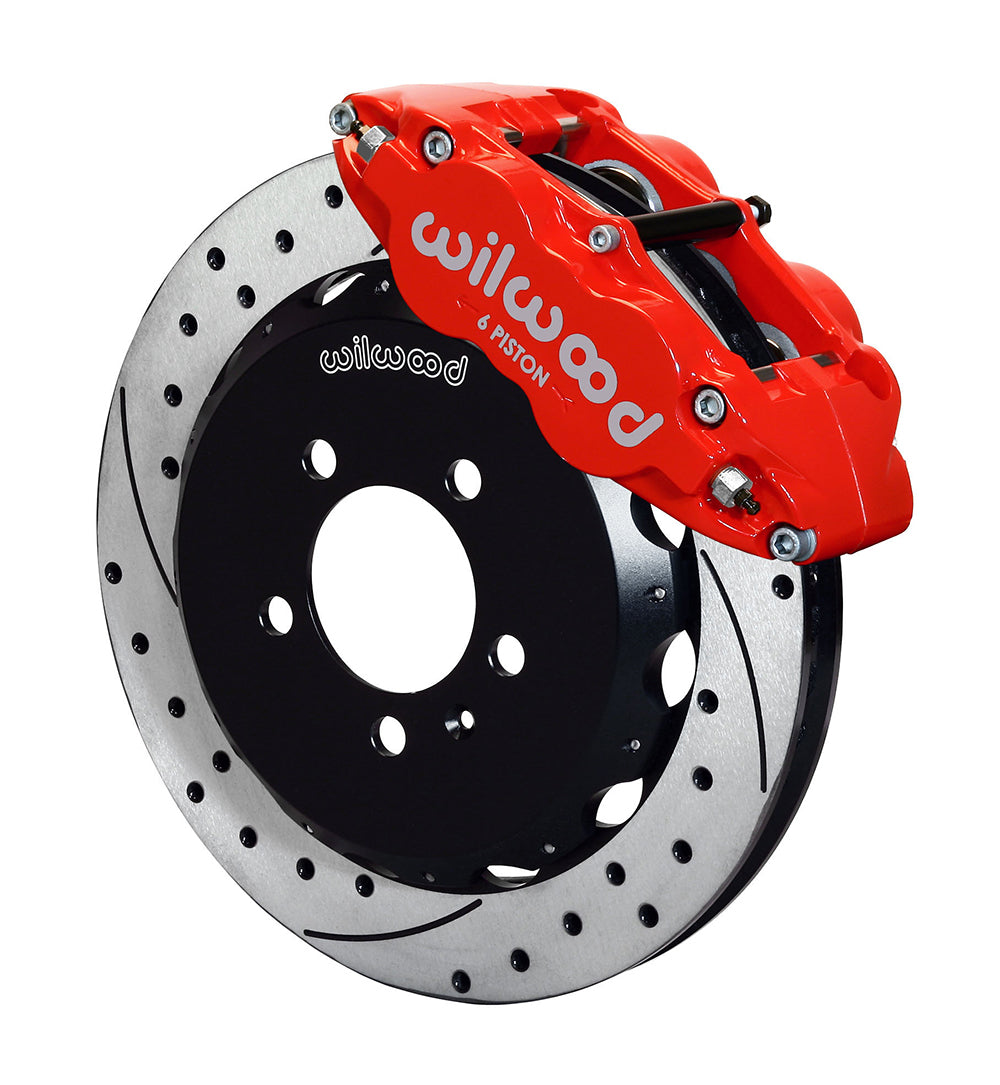

Red Forged Narrow Superlite six-piston calipers distinguish this drilled/slotted Wilwood front package for the listed Audi and Volkswagen vehicles. Its 12.88-inch iron rotor rings mount on aluminum hats, with a dedicated bracket and front-hose arrangement for the supported applications. This is a complete brake-system conversion decision, rather than a caliper selected simply because a wheel has enough nominal diameter. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12789-DR
• Type: Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat).
• Calipers: Forged Narrow Superlite 6R; 6-piston; Red Powder Coat.
• Piston bore dimensions: 1.62, 1.12, 1.12 inches; stainless pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 12.88-inch outside diameter × 1.10-inch width; SRP Drilled & Slotted; Spec-37 Iron; Black Electro Coat surface finish.
• Rotor ventilation: 48 curved vanes.
• Rotor hats: Big Brake Hat - Short Offset; Aluminum; Black E-Coat.
• Wheel bolt circles: 5 x 4.41 inches.

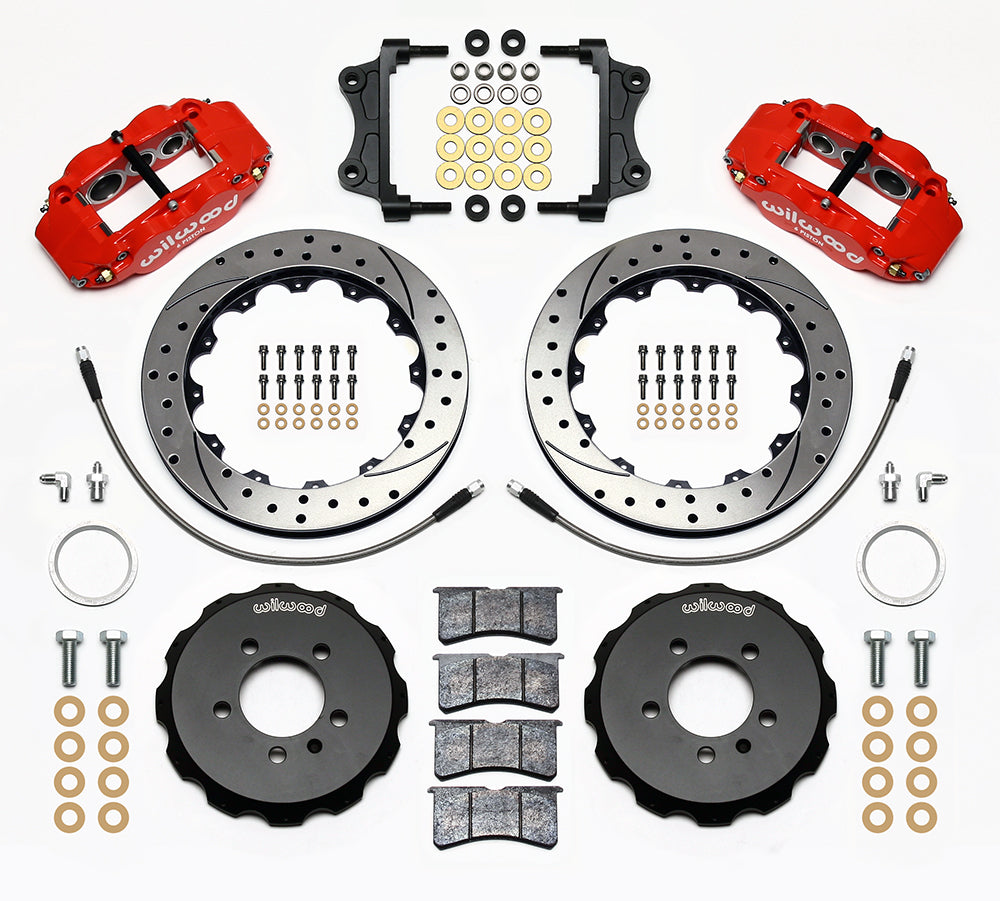

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 17 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.

Fitment & Compatibility

Begin with the individual model/year row and confirm any VIN K, sedan or wagon requirement. The table covers defined applications from 2005 through 2014, with different ranges for each model. Compare the wheel bolt pattern, hub engagement and available spoke depth before ordering. The radial caliper mounting must be set using the installation procedure and checked against the rotor centerline. Recheck steering and suspension clearances with the hoses secured, and assess front/rear balance against the existing master cylinder and rear brake package.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
