Wilwood Red CPB Rear Disc Brake Package, Fiat 500 (2012–2015), 11-Inch Drilled/Slotted Rotors

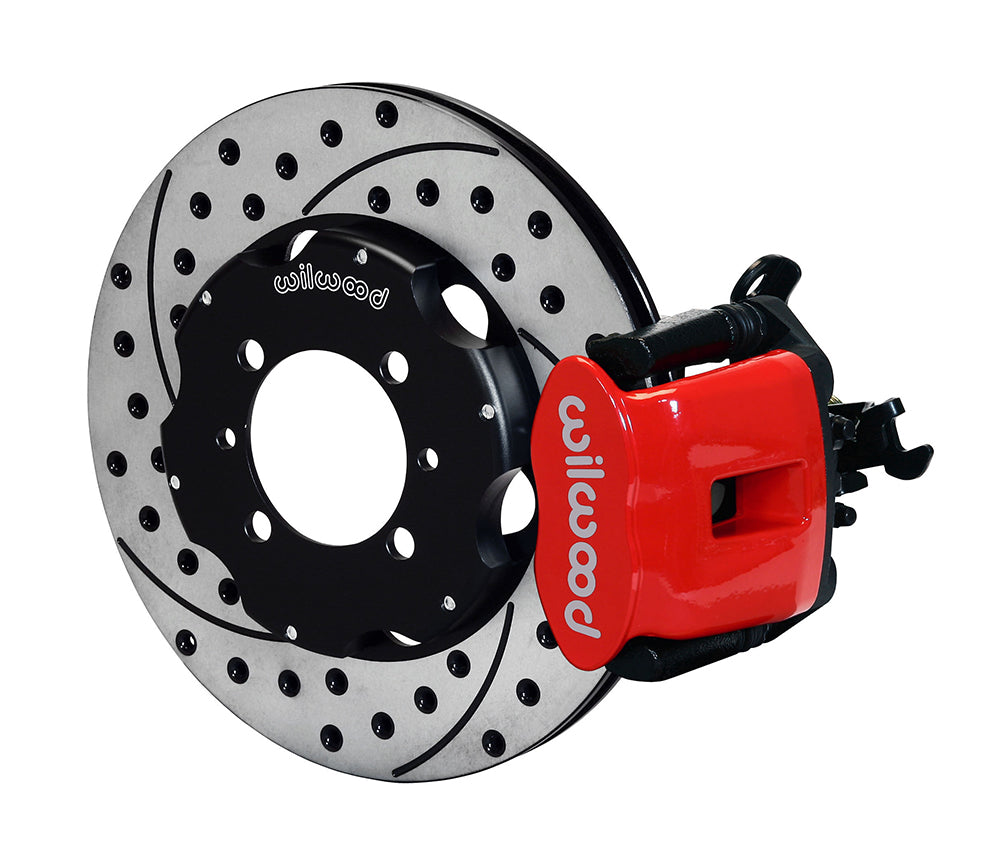

This Fiat 500 rear disc package uses red powder-coated CPB calipers with 11-inch drilled/slotted iron rotors. Its two-piece rotor construction places the friction ring on an aluminum hat, while the single-piston caliper provides both hydraulic braking and mechanical parking engagement. Wilwood supplies the pad and rear-line combination specified for this conversion; the original mounting geometry still determines fit. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12768-DR
• Type: Combination Parking Brake Caliper Rear Brake Kit.
• Calipers: Combination Parking Brake; 1-piston; Red Powder Coat.
• Piston bore dimensions: 1.34 inches; steel pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 11.00-inch outside diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat surface finish.
• Rotor ventilation: 30 vanes.
• Rotor hats: Big Brake Hat - Short Offset; Aluminum; Black E-Coat.
• Wheel bolt circles: 4 x 3.86 inches.

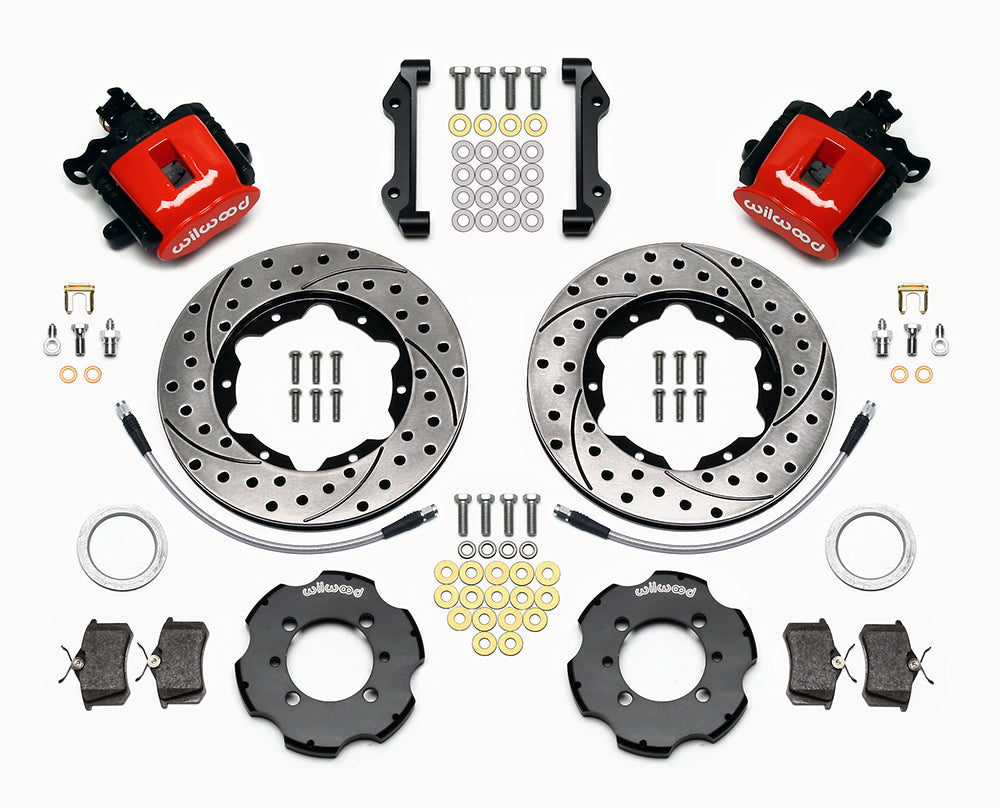

• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.
• Required parking-cable adaptation: modify the new caliper cable bracket to accommodate the original cable end, following DS940 before installation.

Fitment & Compatibility

Match the 2012–2015 application row to the car, paying particular attention to the separate cabriolet and Abarth listings. A compatible rear hub and the proper rotor position are essential; caliper color does not change those requirements. Verify cable end compatibility and lever movement before making final hose and cable connections. Check for full release after adjustment. Measure the proposed wheel against the Wilwood drawing with both its barrel and spoke shape considered, and review hydraulic balance with the installed front brakes.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.
