Wilwood Rear 11-Inch Drilled/Slotted Brake Conversion, Black CPB Calipers, Fiat 500 (2012–2015)

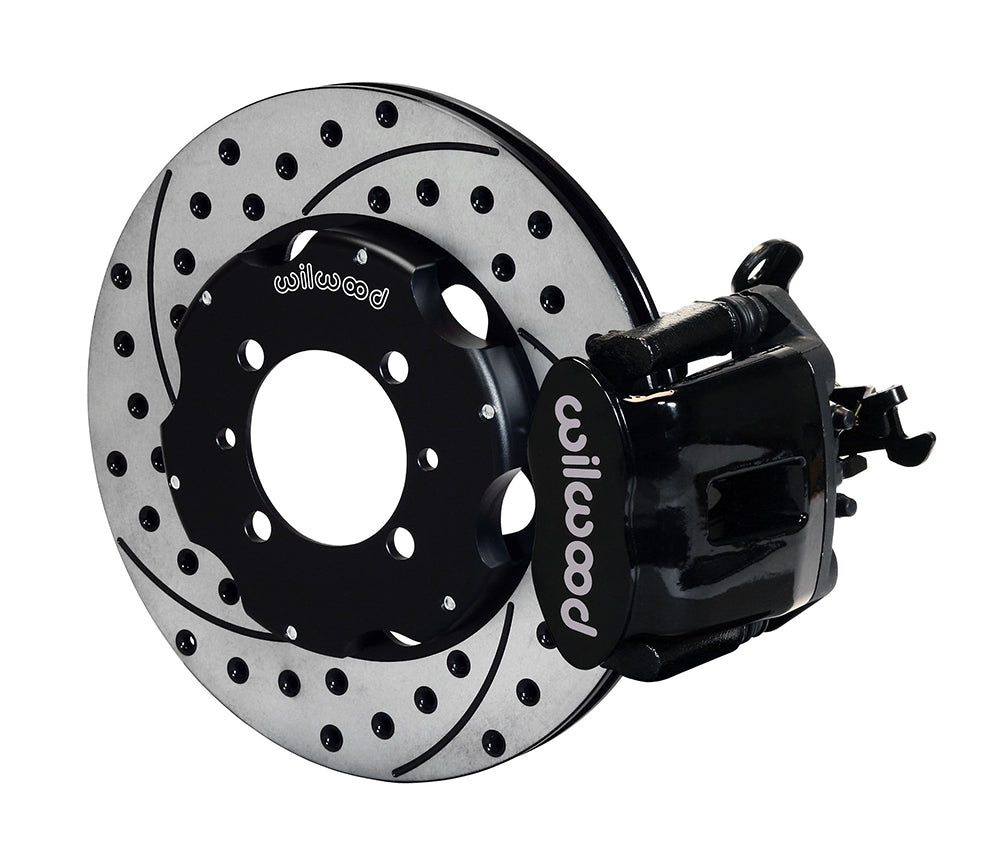

Black CPB calipers and drilled/slotted rotor faces distinguish this Wilwood rear conversion for the 2012–2015 Fiat 500 fitments listed below. Each 11-inch rotor bolts to a separate aluminum hat; the calipers combine hydraulic stopping with cable-operated parking action. BP-10 pads and the specified rear flex lines complete the friction and hydraulic connections for this selected configuration. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12768-D
• Type: Combination Parking Brake Caliper Rear Brake Kit.
• Calipers: Combination Parking Brake; 1-piston; Black Powder Coat.
• Piston bore dimensions: 1.34 inches; steel pistons. Caliper mounting: radial.
• Included pad compound: BP-10.
• Rotors: 11.00-inch outside diameter × 0.81-inch width; SRP Drilled & Slotted; Iron; Black Electro Coat surface finish.
• Rotor ventilation: 30 vanes.
• Rotor hats: Big Brake Hat - Short Offset; Aluminum; Black E-Coat.
• Wheel bolt circles: 4 x 3.86 inches.
• Included: paired calipers, pads, rotors and mounting hardware, caliper mounting brackets, rotor hats.
• Application-specific hydraulic flex lines included.
• Conditional wheel minimum: 15 inches. Compare the complete wheel-clearance diagram with both barrel and spoke dimensions.
• Required parking-cable adaptation: modify the new caliper cable bracket to accommodate the original cable end, following DS940 before installation.

Fitment & Compatibility

Read the individual hatchback, cabriolet, Abarth and other trim entries rather than assuming every 500 uses the same rear installation. Compare hat-to-hub fit and the 4 x 98 mm wheel pattern with the vehicle. Cable attachment, lever travel and freedom from drag must be established with the parking brake released. Use the wheel template to check clearance throughout the spoke and barrel envelope. The minimum wheel diameter alone cannot establish that a particular wheel will clear this assembly.

Match the individual year, model, submodel and equipment conditions in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with the vehicle and installed hardware details for help confirming the complete setup.
