Wilwood Red Six-Piston Front Kit for Fiat 500 (2012–2015), 12.19-Inch SRP Rotors & Lines

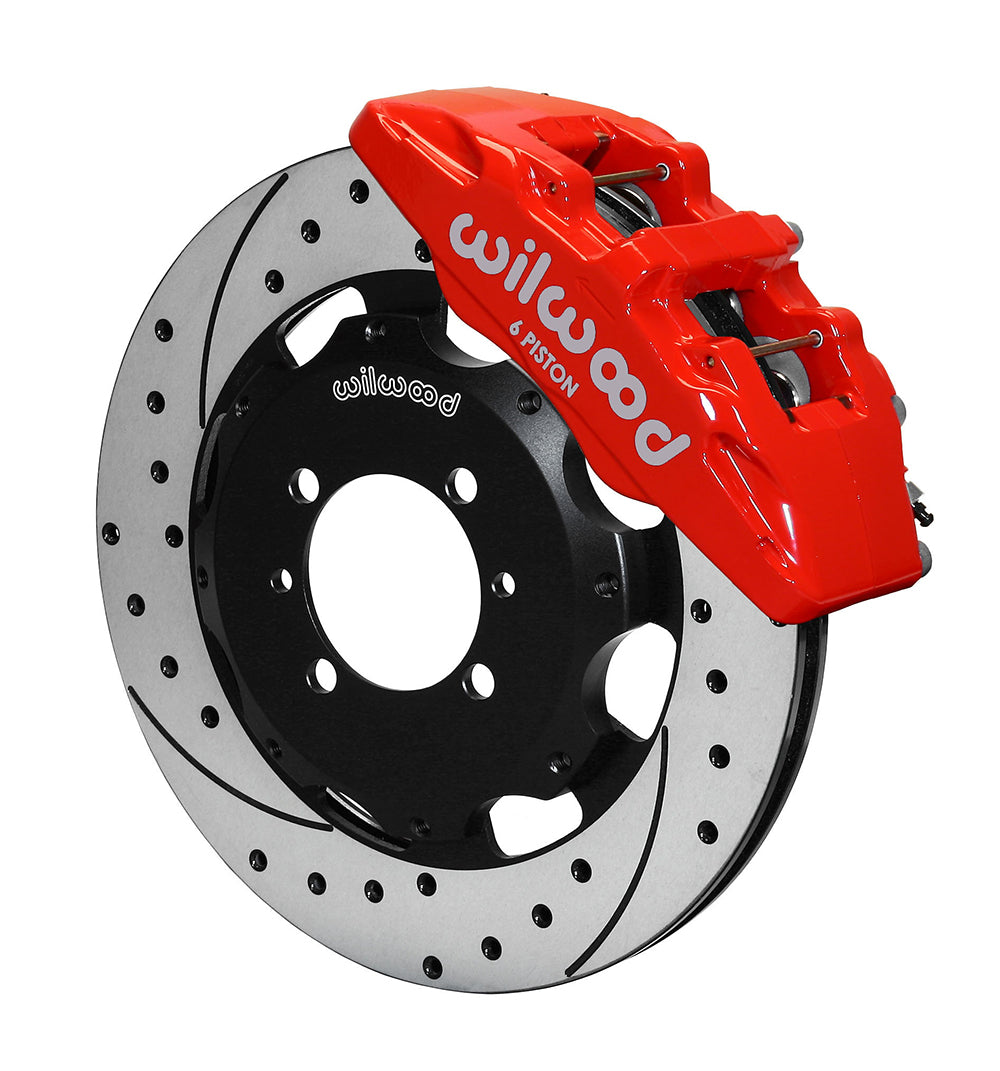

Wilwood's red-caliper front conversion pairs Dynapro 6 units with 12.19-inch drilled/slotted rotor rings for the listed Fiat 500 configurations. Separate hats locate the vented rings on the original hubs, with BP-10 pads and hydraulic flex lines supplied. Check the model-year and trim conditions rather than assuming all factory 500 brake options use the same mounting hardware. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12767-DR
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hat)
• Calipers: Dynapro 6; 6 pistons per caliper; Red Powder Coat.
• Caliper bore sizes: 1.38, 1.00, 1.00 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch thickness; SRP Drilled & Slotted; Iron; Black Electro Coat surface; 32 vanes.
• Wheel bolt circles: 4 x 3.86 inches.

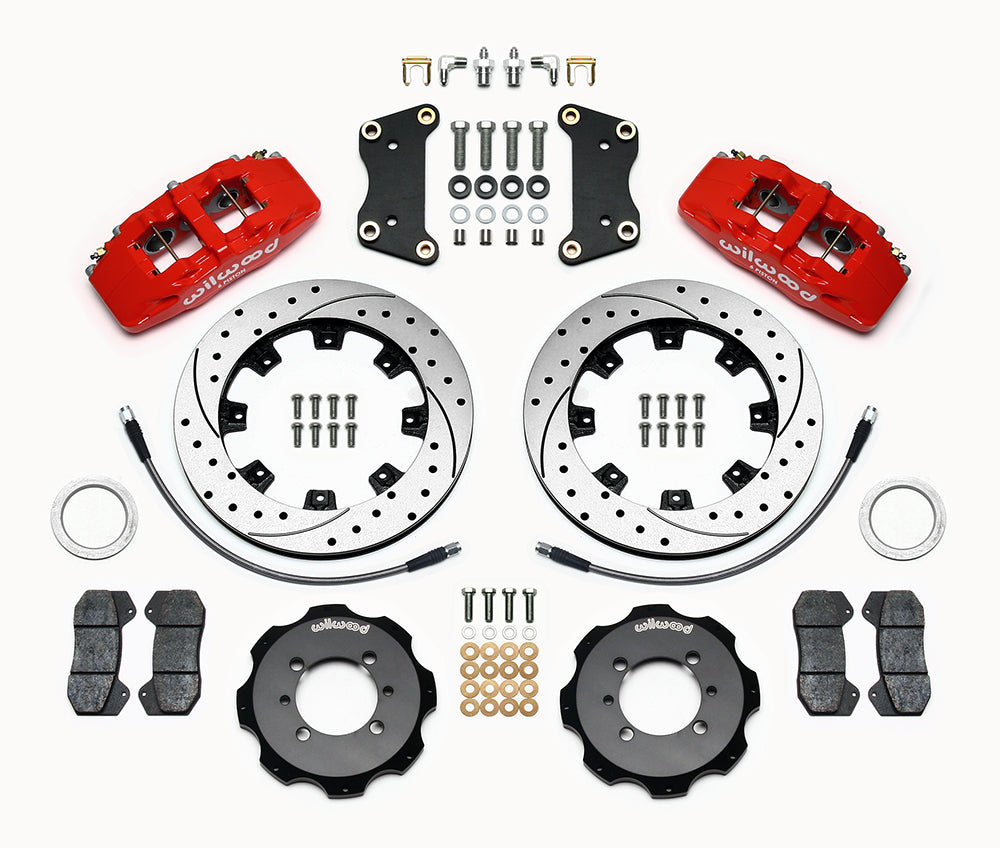

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, rotor hats.
• Hydraulic flex lines and connection hardware included for the specified application.
• Conditional wheel screening size: 15 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Use DS939 to compare the original hub and spindle arrangement, including the four-lug wheel pattern. Verify the hat register and stud engagement before the rotor assembly is mounted. The wheel must clear the radial caliper in both radius and depth, even when its diameter meets the 15-inch screening figure. Check included hose routing through steering lock and suspension travel, then assess front/rear balance and system operation.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
