Wilwood Black SRP Front Disc Conversion for Fiat 500 (2012–2015), Dynapro 6 with Lines

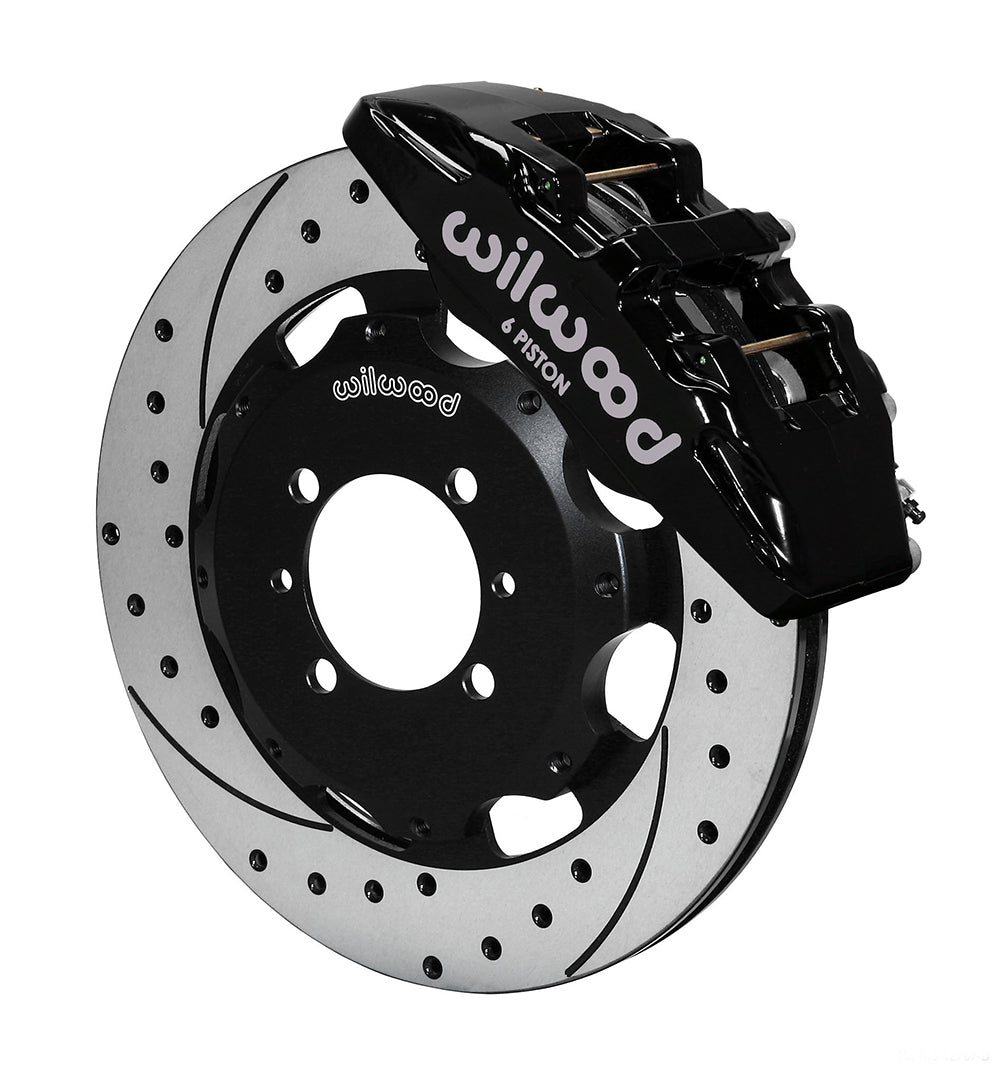

Black Dynapro 6 calipers and drilled/slotted 12.19-inch rings identify this Wilwood front package for the stated Fiat 500 applications. The six-piston calipers use BP-10 pads with 0.81-inch-thick rotors, and the kit includes hydraulic flex lines and connection hardware. Separate hats mount the rings on the correct original hubs rather than replacing the vehicle's wheel-bearing assembly. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings, and brake lines for motorsport, street-performance, and specialized applications.

Technical Details

• Manufacturer part number: 140-12767-D
• Type: Forged Dynapro 6 Big Brake Front Brake Kit (Hat)
• Calipers: Dynapro 6; 6 pistons per caliper; Black Powder Coat.
• Caliper bore sizes: 1.38, 1.00, 1.00 inches. Piston type: Stainless.
• Included pad compound: BP-10.
• Rotors: 12.19-inch diameter × 0.81-inch thickness; SRP Drilled & Slotted; Iron; Black Electro Coat surface; 32 vanes.
• Wheel bolt circles: 4 x 3.86 inches.

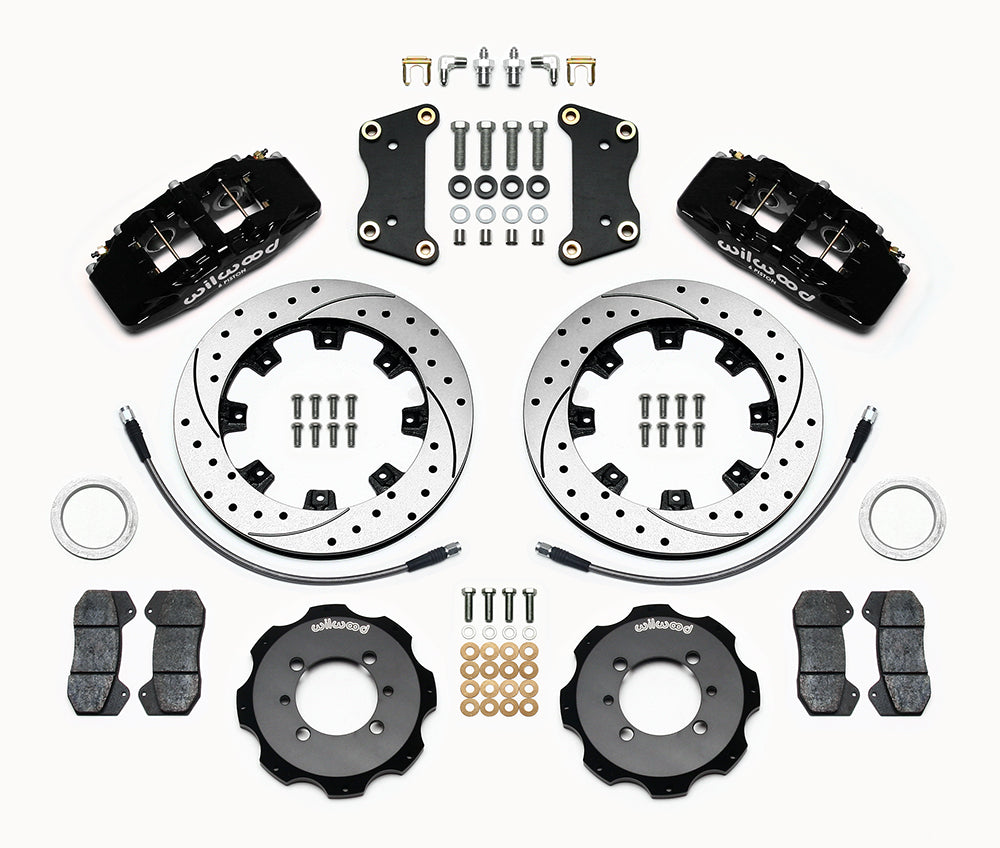

• Included: paired calipers, pads, rotors, mounting brackets and assembly hardware, rotor hats.
• Hydraulic flex lines and connection hardware included for the specified application.
• Conditional wheel screening size: 15 inches. Use the installation clearance diagram to verify the actual barrel and spoke profile.

Fitment & Compatibility

Verify the individual Fiat trim and production-year entry using DS939 and the application table. Compare the four-lug pattern, hub register and spindle mounting before checking the wheel's inner envelope. The 15-inch screening size cannot guarantee spoke clearance. Route the included hoses through full steering and suspension movement without contact, then verify caliper centering, rotor runout and hydraulic balance with the retained rear brakes.

Match the individual model, year, submodel and brake configuration in the fitment table below.

Wilwood installation documents: Installation instructions.

PMB Performance has over 20 years of brake-system experience. Contact us with your vehicle details and installed brake hardware for help confirming the correct arrangement.
